Exit Sign Mounting Height, Arrows, and Face Count Guide

Important Compliance Note

Exit sign mounting is a code-driven life-safety topic. The final answer for a specific project depends on the adopted building code, fire code, electrical code, occupancy, renovation scope, local amendments, product listing, installation instructions, accessibility requirements, project drawings, and AHJ direction. Online guides and product pages can help you prepare, but they cannot approve an installation.

OSHA 1910.37 requires exits to be marked by clearly visible exit signs and requires exit routes to remain adequately lighted. IBC Chapter 10 provides model-code context for means of egress and exit access. For products, UL 924 is the key standard category for emergency lighting and power equipment. Accessibility coordination may also involve the 2010 ADA Standards for Accessible Design. Confirm the local adopted requirements and the project authority before ordering.

What Mounting, Arrows, And Face Count Mean

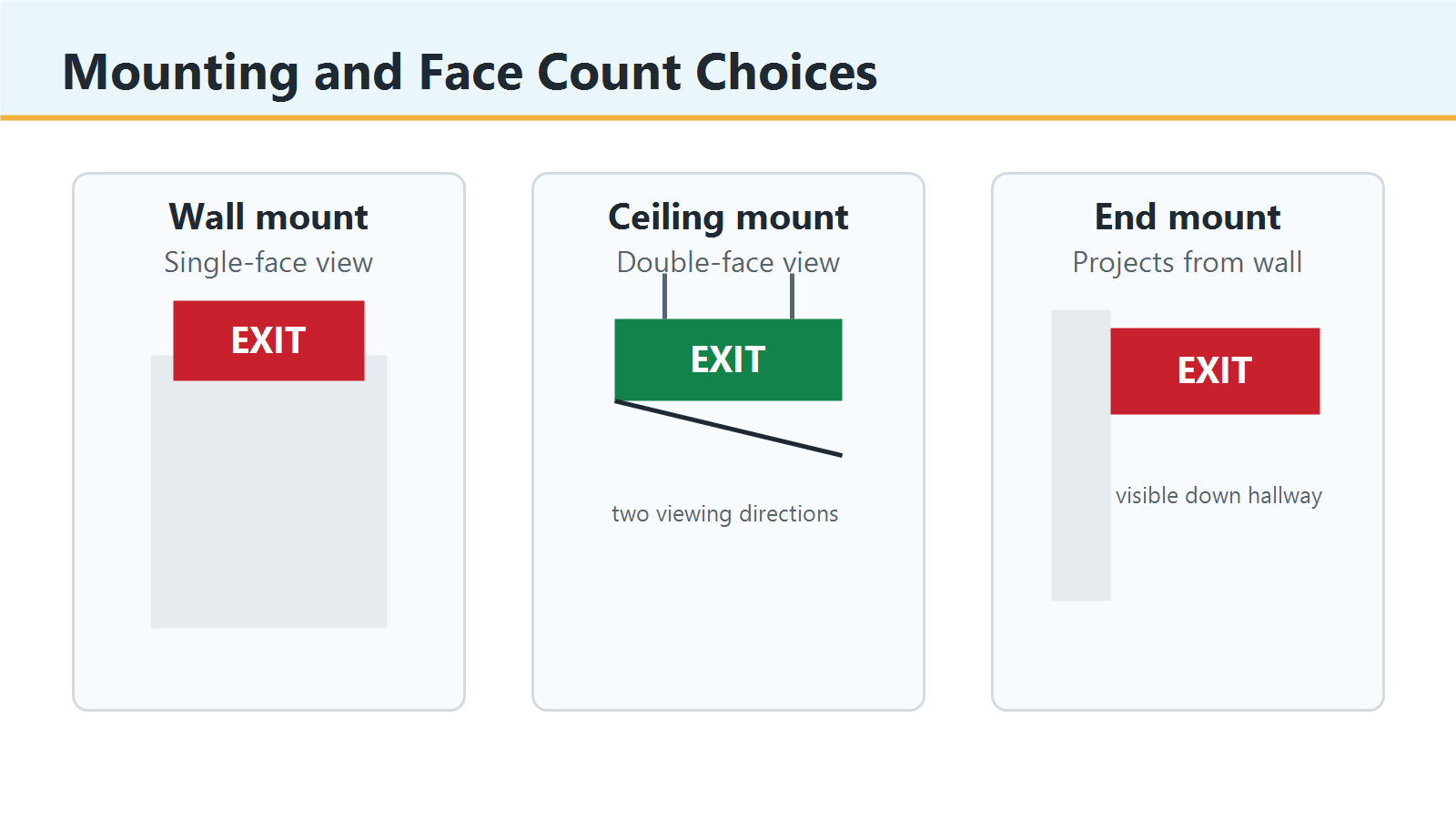

Three decisions shape most exit sign orders: mounting style, face count, and directional indication. Mounting style describes how the sign attaches to the building. Face count describes how many readable sign faces are needed. Arrows or chevrons tell occupants whether to continue straight, turn, move left, move right, use a stair, or choose a specific door.

These decisions are connected. A single-face wall sign may be perfect above a door that is approached from one side. The same location may need a double-face ceiling sign if occupants approach from two directions. A corridor intersection may need arrows on one face, both faces, or neither face depending on how the route reads from each approach.

Product names can blur these details. Many signs are sold as universal mount or universal face signs, but the final field configuration still matters. Before ordering, confirm the sign can be configured for the exact face count, arrow pattern, mounting canopy, voltage, battery backup, color, environment rating, and finish required for the project.

Start With The Viewing Direction

The best way to select an exit sign is to stand where occupants will actually stand. Look down the corridor, across the room, toward the stair, or into the vestibule. Ask whether the next exit sign or exit door is visible before a person has already made the correct decision.

Viewing direction is more useful than wall location alone. A sign mounted at the right door can still be wrong if it cannot be read from the approach. A sign mounted in the middle of a corridor can be confusing if two doors are nearby and the arrow does not make the intended direction obvious.

Walk the route from each occupied area, not only from the main entrance. Back rooms, storage areas, service corridors, open offices, warehouses, classrooms, assembly spaces, kitchens, and tenant suites can all create different approach directions. If people can approach a decision point from multiple directions, face count and arrows become especially important.

Wall Mount, Ceiling Mount, And End Mount

A wall-mount exit sign is usually installed flat against a wall or above a door. It is commonly used when people approach the sign from one primary direction and the sign face needs to identify the exit door, stair, passage, or route ahead. Wall mount can be clean, simple, and durable when the wall location lines up with the occupant's view.

A ceiling-mount exit sign hangs below or attaches to the ceiling, typically with a canopy. It is useful in corridors, open spaces, and locations where occupants need to read the sign from two directions. Ceiling mount also helps where the wall above a door is not the best visible surface or where a sign has to project into the sight line.

An end-mount or side-mount sign projects from a wall so the sign face is perpendicular to the wall. This can be useful near corridor runs, intersections, and doorways where a flat wall sign would be hard to see until someone is directly in front of it. Confirm that the mounting canopy and hardware are included or compatible with the sign you choose.

Single-Face, Double-Face, And Universal Signs

A single-face exit sign has one readable face. It is typically used when the sign is mounted on a wall and occupants approach from one primary direction. Examples include a sign above a final exit door, a sign above a stair door, or a sign mounted at the end of a corridor where the viewer faces the sign directly.

A double-face exit sign has two readable faces, usually back to back. It is commonly used when occupants can approach from opposite directions, such as a corridor, open area, lobby, aisle, or intersection. A double-face sign can prevent the common problem of one side of the route having no readable sign.

Universal exit signs are designed to support more than one configuration. Depending on the product, a universal sign may support wall, ceiling, or end mounting, and it may include field-selectable face plates or knock-out arrows. Universal does not mean every configuration is automatically included. Check the product details for face plates, canopy, arrows, mounting hardware, battery backup, and approved installation methods.

Arrow And Chevron Configuration

Directional arrows or chevrons should match the route from the viewer's approach direction. If the exit door is straight ahead and obvious, a sign may not need an arrow. If the route turns left or right, passes through an intersection, or leads to a stair or exit passage, directional indication may be needed so people do not guess.

Check arrows from the occupant's perspective, not from the installer's ladder position. A left arrow on one side of a double-face sign may need to be a right arrow on the opposite face. A sign near an intersection may need different arrow configurations on different faces, or a different sign location may be clearer than trying to solve the route with arrows alone.

Field-selectable chevrons are convenient, but they can also create mistakes if the wrong panel is removed or if the sign is not checked from each approach. Before the final install, photograph the sign from the route and verify that the arrow points the way a person should actually travel.

Mounting Height And Visibility

Exit sign mounting height should support visibility, readability, and the adopted requirements for the project. A sign that is too low can be blocked by doors, equipment, people, furniture, displays, or stored material. A sign that is too high may be harder to read at close range, may disappear into a ceiling condition, or may not align with the intended sight line.

Avoid treating mounting height as a single universal number. The right location depends on door height, ceiling height, corridor geometry, obstructions, viewing distance, sign size, mounting style, and local code interpretation. Product installation instructions also matter because the sign has to be mounted as listed and intended.

For replacements, match the approved existing mounting position only when the route, visibility, product type, and inspection history still make sense. If a remodel added a soffit, shelving, door swing, display, tenant sign, rack, or partition, the old mounting height may no longer be the best guide.

Doorways, Corridors, And Intersections

Doorways are the most familiar exit sign location, but they are not the only location. A sign above a door works when the door is the required exit or exit access point and the viewer can identify it clearly. If several doors are close together, the sign should not make the occupant wonder which door is intended.

Corridors often need a mix of direct door signs and directional signs. A long corridor may use signs at intervals or at decision points so the route remains clear. A corridor with a turn may need a sign before the turn rather than only after the turn. A corridor intersection may need a double-face sign, arrows, or multiple signs depending on approach directions.

For the broader placement discussion, compare this article with Exit Sign Placement Requirements for Commercial Buildings. Placement asks where the sign belongs along the route. This mounting guide asks how that sign should be configured once the location is known.

Stairs, Ramps, Lobbies, And Vestibules

Stairs, ramps, lobbies, and vestibules deserve special attention because they often combine route changes, door decisions, and visibility limits. A sign at a stair should clearly identify the stair or route being used. A sign near a ramp should help people understand where the route continues, especially when the ramp is not immediately visible from the approach.

Lobbies and open vestibules can be visually busy. Glass, reflections, decorative lighting, tenant signage, reception desks, and multiple doors can make exit signs harder to interpret. In these spaces, face count and mounting style often matter more than they do in a simple hallway.

Exterior vestibules and covered exits should also be reviewed with emergency lighting. Exit signs tell people where to go, but they do not necessarily light the walking surface. For route illumination, use Emergency Light Placement Requirements for Commercial Buildings and Emergency Light Spacing Requirements for Commercial Buildings.

Exit Signs With Emergency Lights

Exit sign emergency light combo units combine an illuminated exit sign with emergency light heads in one housing. They can be useful above exit doors, near corridors, in small commercial spaces, and in projects where one fixture location can support both sign visibility and nearby egress illumination.

Combo units still need the same mounting and face-count review as standard exit signs. A combo mounted above a door may be a good single-face wall sign, but a corridor approach may need a different face count or a separate ceiling sign. The emergency heads also need to aim at the walking surface, exit discharge, stairs, turns, or decision points, not just the nearest wall.

Use Exit Signs With Emergency Lights: Combo Units vs Separate Fixtures when deciding whether one combo fixture or separate exit signs and emergency lights will serve the route more clearly.

Edge-Lit, Steel, Thermoplastic, And Specialty Signs

Different exit sign families solve different installation problems. Thermoplastic exit signs are common for standard commercial interiors. They are often economical and flexible, with options for wall, ceiling, or end mounting depending on the model.

Edge-lit exit signs are often used where appearance matters, such as offices, lobbies, retail spaces, and architectural interiors. They may have clear or mirrored panels and may use recessed, surface, ceiling, or wall mounting depending on the product. Confirm the panel direction, arrow options, and mounting kit before ordering.

Steel exit signs and other metal-housing signs can be useful where durability, housing construction, or project specifications call for a stronger fixture. Specialty products may also include recessed signs, slim signs, self-testing signs, photoluminescent signs, and other application-specific choices.

Wet, Outdoor, And High-Abuse Locations

Mounting style and face count do not matter if the product is wrong for the environment. Exterior exits, parking structures, covered walkways, washdown areas, industrial corridors, cold spaces, kitchens, and damp back-of-house areas may require different housing, gasket, temperature, or rating details than a typical indoor office corridor.

Use wet-location exit signs where moisture, rain, hose-down, or exposed exterior conditions apply. Use wet-location combo units when the location needs both sign visibility and emergency light heads in a moisture-rated fixture. For outdoor egress paths that also need illumination, compare wet-location emergency lights.

High-abuse locations may need stronger housings, protected mounting, guards, or a different sign type. Do not rely on a standard indoor sign in a location where impact, vandalism, moisture, temperature, or cleaning practices are likely to shorten its life or create an inspection issue.

Power, Battery Backup, And UL 924

Most commercial exit sign decisions also involve power. Confirm voltage, battery backup, self-testing requirements, wiring method, remote capability if applicable, and whether the sign is intended for maintained illumination. Review product documentation instead of assuming that two signs with similar photos have the same electrical configuration.

Battery-backup exit signs should be tested and maintained so they remain readable during a loss of normal power. If the project requires easier routine checks, compare self-testing exit signs. Diagnostic indicators can help maintenance teams, but they do not eliminate the need for a testing and record process.

UL 924 matters because exit signs and emergency lighting equipment are life-safety products. Confirm the product listing and installation instructions before ordering, especially when selecting combo units, remote-capable equipment, specialty signs, or products for unusual environments.

ADA And Tactile Sign Coordination

Illuminated exit signs and tactile accessibility signs can both be needed, but they are not interchangeable. An illuminated exit sign helps people identify the egress route from a distance. Tactile signs support accessibility and can have separate location, height, character, contrast, Braille, and mounting requirements.

Do not assume that adding an illuminated exit sign satisfies every accessibility sign requirement near a door, stair, exit passage, or area of refuge. Coordinate illuminated signs with tactile and room-identification signage early so the wall, door, and approach area do not become crowded or confusing.

For product selection, the key point is simple: order the correct exit sign for the egress route, and coordinate separate accessibility signage with the project team, adopted standards, and AHJ. If the project drawings call for tactile signs, treat those as a separate requirement instead of a substitute for illuminated exit signage.

Replacement Walkthrough

For replacements, start with photos. Capture the existing sign from each approach direction, then photograph the mounting hardware, face count, arrows, voltage label, battery/test switch, charge indicator, housing material, and any environment exposure. If the sign is damaged or failed, photograph the failure as well.

Next, decide whether the job is like-for-like replacement or a route correction. Like-for-like can make sense when the existing sign passed inspection, the building layout has not changed, the mounting style is still visible, the environment is appropriate, and the failure is limited to an aging fixture, battery, board, lamp, or housing.

A route correction is needed when the old sign is blocked, the wrong face count was used, arrows are confusing, the corridor changed, the door use changed, the sign is too low or too high for visibility, or an inspection note calls out placement or visibility. If the route changed, do not order only by matching the old fixture.

Product Paths To Compare

Use the field condition to choose the product path:

Field condition	Product path	What to verify
Standard indoor door or corridor	Exit signs	Face count, arrows, mounting canopy, voltage, battery backup
Architectural office, lobby, or retail interior	Edge-lit exit signs	Panel direction, mounting kit, arrow options, finish, visibility
Durability or metal housing requested	Steel exit signs	Housing, mounting style, environment, face configuration
Moisture, exterior, washdown, or parking structure	Wet-location exit signs	Wet or damp rating, gasket, temperature range, housing, exposure
Exit sign plus nearby emergency light heads	Combo units	Head aiming, sign face count, arrow layout, battery, mounting position
Approved non-electrical sign path	Photoluminescent exit signs	Charging light, viewing distance, installation instructions, AHJ approval

If the correct path is unclear, send photos, existing labels, voltage, mounting height, face count, arrow direction, environment notes, and inspection comments through Request a Quote. That information is much more useful than a product photo alone.

FAQ

Common mistakes include ordering a single-face sign for a two-direction corridor, using a ceiling sign where a wall sign would be clearer, using a wall sign where a projecting sign is needed, selecting the wrong arrow from the installer's perspective, forgetting the mounting canopy, using an indoor sign outdoors, replacing a failed sign without checking route changes, and assuming illuminated exit signs replace tactile accessibility signage.

What mounting style should I use for an exit sign?

Use the mounting style that makes the sign readable from the occupant's approach direction. Wall mount works well above many doors. Ceiling mount and end mount are often better when the sign must be seen from a corridor, open area, or multiple approach directions.

When do I need a double-face exit sign?

Use a double-face sign when occupants need to read the sign from two opposing directions, such as in a corridor, open area, lobby, or intersection. A single-face wall sign may be enough when the sign is read from one direction and clearly marks the exit door or route.

Do exit signs always need arrows?

No. Arrows or chevrons are needed when directional information is necessary for the route to be clear. A sign directly over an obvious exit door may not need an arrow, while a sign before a turn, intersection, or stair route often does.

How high should exit signs be mounted?

Mounting height depends on the adopted requirements, visibility, door and ceiling conditions, product instructions, and AHJ direction. The practical test is whether the sign remains clearly visible from the intended approach without being blocked or confusing.

Can I replace an old exit sign with the same style?

Sometimes. Like-for-like replacement can work when the old sign was correct and the route has not changed. If the building layout, approach direction, environment, inspection comments, or visibility changed, recheck mounting style, face count, and arrows before ordering.

Next Step

Before ordering, walk the route from each approach direction and record the mounting style, face count, arrow direction, voltage, battery backup, environment, and any inspection notes. Then compare exit signs, edge-lit exit signs, steel exit signs, wet-location exit signs, and exit sign emergency light combo units. For uncertain projects, send the field details through Request a Quote before buying.
