Exit Sign Placement Requirements for Commercial Buildings

Important Compliance Note

Exit signage is a code-driven life-safety topic. The correct sign location for a specific building comes from the adopted building code, fire code, occupancy classification, renovation scope, local amendments, electrical design, and AHJ direction. Online guides and product pages can help you prepare, but they cannot approve a layout.

OSHA 1910.37 gives practical workplace direction for exit-route lighting and marking. It says each exit must be clearly visible and marked by a sign reading Exit, directional signs are needed when the direction of travel is not immediately apparent, the line-of-sight to an exit sign must remain visible, and doorways that could be mistaken for an exit need appropriate marking. OSHA 1910.36 helps frame the exit-route design context. For products, UL 924 is the standard category commonly associated with emergency lighting and power equipment, including many electrically powered exit signs and combo fixtures. For tactile and accessible signage context, use the official 2010 ADA Standards for Accessible Design.

What Exit Sign Placement Means

Exit sign placement is not just the number of signs on a project. It is the relationship between the sign, the viewer, the door or path being identified, and the direction people need to move. A sign that is technically installed but hidden behind a beam, mounted on the wrong face, missing an arrow, or readable from only one side of a corridor can still create a practical egress problem.

Think of placement as a wayfinding system. During normal operation, people rely on lighting, room familiarity, employees, open doors, daylight, and routine habits. During a power outage, alarm, smoke condition, or crowded evacuation, those cues may not be reliable. Exit signs should reduce hesitation by identifying exits and clarifying the path to the nearest exit or exit discharge.

Good placement answers four questions. What exit or exit route component is being marked? From which direction will people see the sign? Is the next movement obvious without an arrow? Is the sign visible after furniture, shelves, partitions, decorations, doors, or equipment are in place? If any answer is unclear, the plan needs more review before ordering.

Start With The Exit Route

The easiest way to plan exit sign placement is to walk the exit route from the occupied area to the outside. Break the route into exit access, exit, and exit discharge.

Exit access is the path from an occupied area toward an exit. This can include offices, classrooms, retail floors, warehouse aisles, kitchens, storage areas, corridors, and open work areas. Most directional-sign decisions happen here because occupants often cannot see the final exit from where they start.

The exit is the protected or recognized exit component, such as an exit door, enclosed stair, exit passageway, or other approved exit element. These locations commonly need a sign that can be seen before a person reaches the door or opening.

Exit discharge is the route from the exit to the public way, safe dispersal area, or other approved discharge condition. Exit signs may still matter at discharge doors, exterior stairs, vestibules, gates, or exterior paths depending on the project and local requirements.

Walk the route in both directions where people may approach from multiple spaces. A sign that works from one hallway may not work from the adjacent hallway, open floor area, or stair landing.

Required Exits And Exit Doors

Required exits are the obvious first placement point. A final exit door, stair entrance, exit passageway entrance, or protected exit component generally needs to be identified so occupants can recognize it quickly. The sign should be located where it clearly marks the correct doorway or path, not where it might appear to identify a neighboring door.

Door groups need special care. In a row of similar doors, one door may be the exit while another is a closet, restroom, office, electrical room, or restricted area. The sign location should not create ambiguity. If the sign is centered between two doors, mounted too far from the actual exit, or blocked by a door swing, people may hesitate or choose the wrong opening.

At replacement time, verify that the existing sign still marks a required exit. Tenant buildouts, corridor changes, locked doors, security vestibules, and remodels can change the route. Do not assume the old sign location is correct simply because it has been there for years.

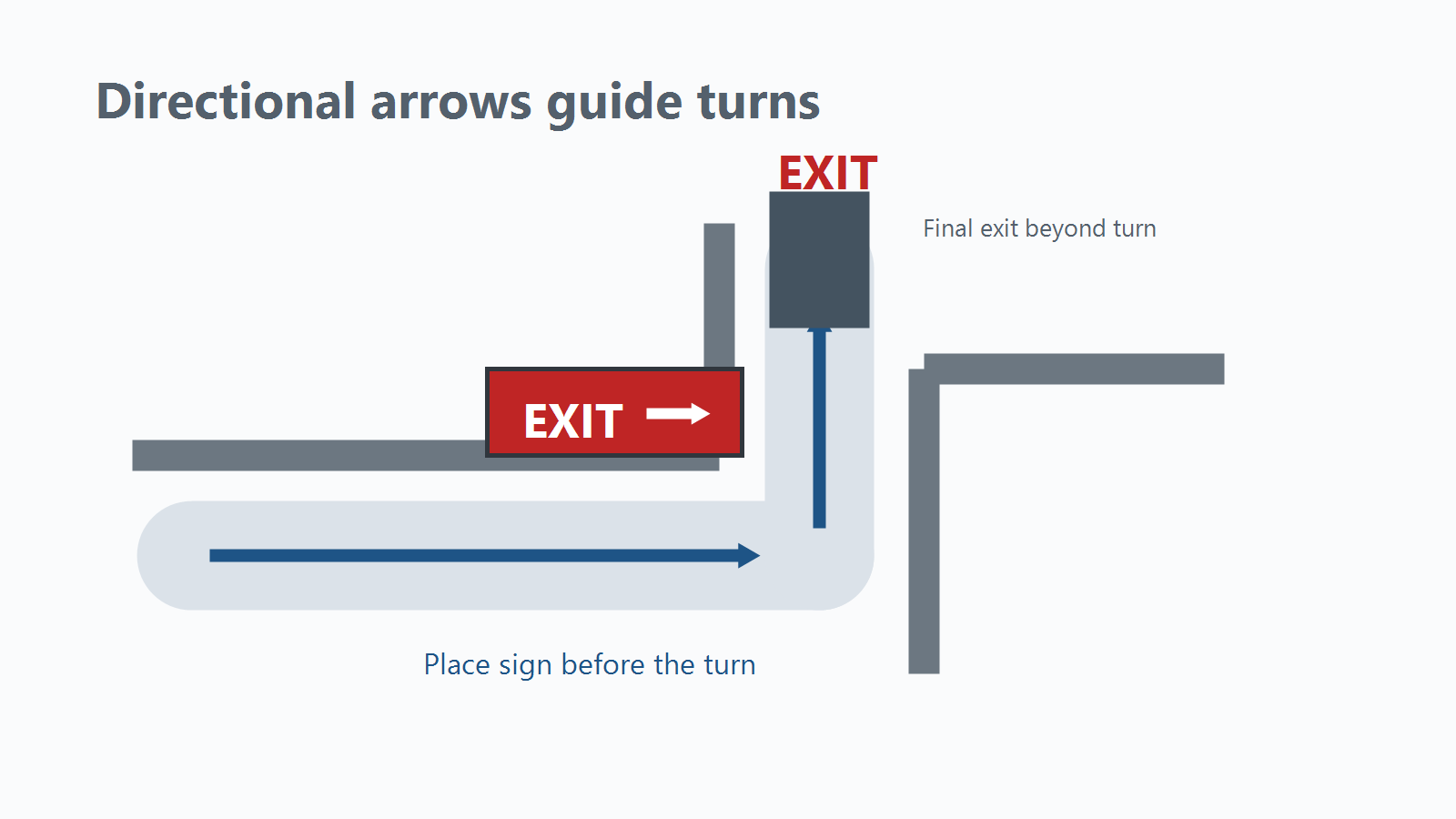

Line-Of-Sight And Directional Arrows

Line-of-sight is one of the most important exit sign placement concepts. A person should be able to see the next exit sign or the marked exit from the approach direction. If the exit is around a corner, beyond a turn, behind a partition, down a corridor, or not immediately apparent from the current position, directional signage may be needed before the decision point.

Directional arrows should appear soon enough to guide the turn. A sign placed after the turn may be visible only after the person has already made the correct decision, which defeats much of its purpose. A sign before the turn can tell people to continue, turn left, turn right, or enter the next part of the route.

Use arrows carefully. A wrong arrow can be worse than no arrow because it sends people toward the wrong door, corridor, stair, or discharge path. Confirm arrow direction from the occupant's viewing position, not just from the installer standing under the sign. Universal-arrow signs are useful only when the arrow configuration matches the final route.

Corridors, Turns, Intersections, And Open Areas

Corridors often need exit signs at exits, corridor intersections, changes of direction, long paths where the next sign is not visible, and locations where the route could be confused with another passage. The goal is continuity: as a person moves through the route, the next sign or clear exit indication should appear before uncertainty starts.

Turns deserve close attention. A corridor that turns ninety degrees, passes around a stock area, enters a vestibule, or changes direction behind a partition may need a directional arrow before the turn. In a T-intersection, the sign should show the correct branch. In a cross-corridor, the sign should avoid implying that either direction is acceptable when only one direction leads to the nearest exit.

Open areas create a different problem. Retail sales floors, warehouses, manufacturing spaces, cafeterias, showrooms, gyms, and open offices may not have a defined corridor wall at every decision point. Suspended, ceiling-mounted, end-mounted, or double-face signs can help keep the route visible from the actual approach direction. In taller or cluttered spaces, confirm that racking, merchandise, machinery, banners, or future tenant improvements will not hide the sign.

Stairs, Ramps, Lobbies, And Vestibules

Stair entrances are common exit sign locations because occupants need to recognize the protected path quickly. The sign should identify the stair entrance, not a nearby mechanical room, elevator lobby, or access-controlled door. At stair landings, additional signage may be needed depending on the building, floor level, re-entry rules, local code, and AHJ direction.

Ramps and level changes should be reviewed as part of the same route. If people leave a room, turn, enter a ramp, pass through a vestibule, and then reach an exterior door, a single sign at the final door may not provide enough wayfinding. The sign plan should clarify each movement that is not obvious.

Lobbies and vestibules can be confusing because they often contain multiple doors, glass partitions, tenant entrances, security features, and decorative finishes. Place signs so the exit path is identified from the direction people enter the space. If a sign is hidden by the door frame, mounted behind glass glare, or visually competing with decorative signage, field review is warranted.

Doors That Are Not Exits

Exit sign placement is not only about marking the right doors. It is also about avoiding confusion at the wrong doors. Doors or passages along an exit access route that could be mistaken for an exit may need to be marked with Not an Exit or identified by actual use, such as Closet, Storage, Restroom, Mechanical, or Electrical.

This matters in corridors, back-of-house areas, schools, offices, retail spaces, hotels, health care support areas, and industrial buildings where many doors look similar. In an emergency, people may move quickly toward the first door that looks promising. Clear marking helps prevent wasted time and unsafe choices.

Do not use decorative door signs, wall graphics, temporary posters, or storage labels that obscure the exit route door or compete with the actual exit sign. Sign visibility and door identification should remain clear after merchandising, seasonal displays, tenant signage, and facility changes.

Mounting Style And Face Count

Mounting style controls who can see the sign. A wall-mounted, single-face sign can work above a door when people approach from one direction and the sign face is visible. A ceiling-mounted or end-mounted double-face sign can work better in corridors, intersections, and open areas where people approach from two directions.

Single-face signs are commonly used where the sign is read from one side, such as above a doorway at the end of a corridor. Double-face signs are commonly used where the sign needs to be visible from opposite directions, such as a corridor run or open path. Universal-face models can sometimes be configured in the field, but the installer still needs the correct canopy, face, chevrons, and mounting hardware for the application.

Face count and arrow configuration should be reviewed together. A double-face sign may need different arrow directions on each side depending on the route. A wall sign may need no arrow if it directly marks the final exit door, while a corridor sign may need a left, right, or straight-ahead indication. Confirm the intended sign face from each viewing direction before purchase.

Mounting Height, Clearance, And Visibility

Exit signs should be mounted so they can be seen above normal activity and common obstructions. The exact mounting height and clearance requirements can depend on the adopted code, ceiling height, door height, occupancy, and local interpretation, so the final answer belongs to the project team and AHJ.

From a buying standpoint, confirm the mounting surface before selecting the sign. Wall mounting above a door, ceiling mounting in a corridor, end mounting from a side wall, sloped ceiling conditions, drop ceilings, concrete surfaces, exposed conduit, and shallow electrical boxes can all change the product or accessory needs.

Visibility is the real field test. Check whether the sign can be seen from normal approach points after doors are open, shelving is stocked, furniture is placed, displays are installed, and lighting conditions change. A sign that is visible on an empty construction walkthrough may be hidden after the tenant moves in.

Illumination, Backup Power, And UL 924

Most commercial electric exit signs are illuminated signs. The sign needs a reliable power source and, where required, emergency operation during loss of normal power. This is where product listing, battery backup, voltage, runtime documentation, and installation instructions matter.

Many commercial projects use LED exit signs with integral battery backup. Others may use signs connected to emergency power systems, combo fixtures with emergency lighting heads, remote-capable equipment, or approved non-electrical sign types in specific applications. Do not mix these paths casually. The power strategy should match the project documents and AHJ expectations.

Use UL 924 context when comparing electrically powered exit signs, emergency lights, combo units, and related emergency equipment. Product documentation should be kept for the electrician, owner, inspector, or fire marshal. If a sign failed inspection because of battery/runtime, charging, illumination, or listing concerns, capture that note before ordering the replacement.

Wet, Outdoor, High-Abuse, And Specialty Locations

Not every exit sign belongs in a clean, dry interior corridor. Exterior exits, parking structures, covered walkways, service yards, washdown areas, food service back rooms, industrial spaces, public corridors, schools, gyms, and detention or high-abuse areas may need a different product family.

For moisture or exposed conditions, compare wet-location exit signs instead of standard indoor models. For architectural interiors where appearance matters, edge-lit exit signs may fit better. For areas where no electrical sign is desired or allowed by the project approach, photoluminescent exit signs may be considered when approved for the application. For rugged spaces, compare steel, die-cast, or high-abuse options where available.

Specialty signs still need correct placement. A wet-location sign installed in the wrong viewing direction is still wrong. A photoluminescent sign placed where charging light is inadequate may not fit the application. A rugged sign hidden behind equipment does not solve the wayfinding problem.

ADA And Tactile Sign Coordination

Illuminated exit signs and ADA tactile signs often serve related but different needs. The illuminated exit sign helps occupants visually identify the exit route, often from a distance or along a corridor. Tactile signage supports accessible identification at doors, rooms, and certain route elements under accessibility requirements.

Do not assume one sign automatically replaces the other. A project may need an illuminated exit sign above or near the egress path and separate tactile signage at the door or area required by accessibility standards. Placement, character style, braille, mounting location, and height for tactile signs should be handled with the accessibility rules and project team.

From a planning standpoint, coordinate early so the wall area is not crowded, conflicting, or visually confusing. The exit sign, tactile sign, room identification sign, security device, door hardware, fire alarm device, and decorative elements should not fight for the same small area.

Replacement Walkthrough

For replacements, start by documenting the existing sign. Take photos from the approach direction, not only from directly underneath. Capture the sign face, arrow direction, mounting style, canopy, backplate, wiring location, voltage label, battery label, test switch, charge indicator, and the door or route the sign is intended to identify.

Then decide whether this is a like-for-like replacement or a placement correction. Like-for-like may make sense when the old sign location passed inspection, the route has not changed, and the issue is a failed battery, damaged housing, outdated lamp technology, or worn face. A correction is needed when the sign points the wrong way, is hidden, has the wrong face count, uses the wrong product rating, or marks an unclear door.

Confirm red or green letter requirements, face count, arrows or chevrons, mounting style, voltage, battery backup, damp or wet rating, housing material, and any local preferences. If the old sign is connected to a central emergency system, generator-backed circuit, or unusual wiring arrangement, involve the electrician before ordering.

Product Paths To Compare

Use the placement problem to choose the product path:

Placement need	Product path	What to verify
Typical interior exit door or corridor	Exit signs	Letter color, face count, arrows, mounting, voltage, battery backup
Architectural interior or lobby	Edge-lit exit signs	Mounting canopy, single or double face, arrow inserts, ceiling conditions
Doorway needing sign and emergency heads	Combo units	Head aiming, battery, face count, arrow direction, mounting height
Exterior, damp, washdown, or parking structure path	Wet-location exit signs	Wet or damp rating, gasket, temperature range, housing, exposure
Approved non-electrical sign path	Photoluminescent exit signs	Charging light, viewing distance, installation instructions, AHJ approval
Exit sign plus separate route lighting	Emergency lights	Whether the walking surface and decision points are illuminated during outage

If the project needs both sign visibility and route illumination, compare this guide with Emergency Light Placement Requirements for Commercial Buildings. Exit signs tell people where to go. Emergency lights help them see the path and walking surface.

Common Placement Mistakes

• Mounting the sign where it is visible only after the occupant has already made the correct turn.
• Using a single-face sign where people approach from two directions.
• Installing the wrong arrow direction because the sign was checked from the installer's position instead of the occupant's approach.
• Centering a sign between two doors so it is unclear which door is the exit.
• Forgetting directional signs in open areas, stock areas, long corridors, or intersections.
• Using indoor signs outdoors, in damp areas, or in washdown locations.
• Replacing a failed sign without confirming whether the route changed during a remodel.
• Allowing decorations, banners, merchandise, racks, or tenant signage to block the sign.
• Assuming combo units are always better when separate exit signs and emergency lights would serve the route more clearly.
• Buying before confirming letter color, face count, arrows, mounting hardware, voltage, and battery backup requirements.

Field Checklist Before Ordering

• Walk the route from each occupied area toward the exit.
• Mark required exit doors, stairs, ramps, corridors, vestibules, intersections, and discharge points.
• Stand where occupants will stand and confirm whether the next sign or exit is visible.
• Identify turns, long corridors, open areas, and decision points that may need directional arrows.
• Photograph existing signs from each approach direction.
• Record face count, arrow direction, mounting style, letter color, voltage, and battery backup.
• Check for damp, wet, outdoor, high-abuse, or architectural requirements.
• Note doors or passages that could be mistaken for exits.
• Coordinate illuminated exit signs with tactile and accessibility signage.
• Save inspection comments, project drawings, cut sheets, and AHJ notes for the final product decision.

FAQ

Where should exit signs be placed in a commercial building?

Exit signs are typically placed at required exits and along the exit access route wherever the direction of travel to the exit or exit discharge is not immediately apparent. The exact locations depend on the building layout, adopted code, occupancy, visibility, and AHJ direction.

Do exit signs need arrows?

Exit signs need directional information when the route is not obvious. A sign directly above a final exit door may not need an arrow, while a sign before a corridor turn or intersection often does. Confirm the arrow from the occupant's approach direction.

When should I use a double-face exit sign?

Use a double-face sign when occupants need to read the sign from two opposing directions, such as a corridor, open area, or intersection. A single-face wall sign may be enough when the sign is read from one approach direction and clearly marks the exit door.

Can an exit sign be hidden by a door, decoration, or display?

No. Exit signs must remain visible for the route they identify. Review sign visibility after doors, furniture, shelving, decorations, banners, and merchandise are in place, not only during an empty construction walkthrough.

Do illuminated exit signs cover ADA tactile sign requirements?

Not automatically. Illuminated exit signs and tactile accessibility signs can have different purposes and placement rules. Coordinate both sign types with the project team, accessibility requirements, and AHJ.

Who approves the final exit sign placement?

The AHJ, inspector, fire marshal, engineer of record, building official, or project authority decides what is acceptable for the specific building. Use this guide to prepare a better product and layout discussion before buying.

Next Step

For a new layout, start with a marked plan showing exits, turns, corridors, stairs, ramps, vestibules, and discharge points. For a replacement, collect photos from every approach direction and record face count, arrow direction, mounting style, voltage, and battery backup. Then compare exit signs, edge-lit exit signs, wet-location exit signs, and exit sign emergency light combo units. If the right path is still unclear, send the photos and notes through Request a Quote before ordering.
