Exit Sign Replacement Guide: Match Voltage, Battery, Face Count, Arrows, and Mounting

Important Compliance Note

Exit sign replacement is still a life-safety decision. A failed sign, missing sign, wrong arrow, weak battery, blocked sign, or nonmatching product can create problems during inspection or emergency use. The final replacement choice should match the adopted code, project documents, local amendments, product listing, installation instructions, electrical requirements, accessibility coordination, and AHJ direction.

OSHA 1910.37 requires exits to be clearly visible and marked, requires exit routes to be adequately lighted, and requires safeguards such as exit lighting to remain in working order. UL 924 is the key standard category for emergency lighting and power equipment. Model-code resources such as IBC Chapter 10 provide means-of-egress context. Accessibility coordination may also involve the 2010 ADA Standards for Accessible Design. Confirm the project-specific requirements before ordering.

When Replacement Is Like-For-Like And When It Is Not

Like-for-like replacement means the new sign performs the same role as the old sign and matches the important field conditions: location, sign visibility, face count, arrow direction, mounting style, power, battery backup, environment rating, and housing type. This can be a good path when the existing sign was correct, the route has not changed, and the issue is a failed battery, damaged housing, obsolete electronics, or worn-out fixture.

Replacement is not like-for-like when the building layout changed, the route changed, the old sign was blocked, the wrong arrow was installed, the existing sign failed inspection, the space moved from indoor to wet or exterior exposure, or the project authority asked for a different sign type. In those cases, matching the old product can repeat the old mistake.

Before buying, decide whether you are replacing a failed product or correcting an egress-signage problem. A failed product asks, "What equivalent sign fits here?" A route correction asks, "What sign should have been here?" Those are different decisions.

Step 1: Identify The Existing Sign

Start with photos. Take one photo from the occupant approach direction, one photo from the opposite direction if applicable, one close-up of the sign face, one close-up of the mounting point, and one close-up of the label or electrical information. If the sign has a test button, charge indicator, battery compartment, remote-head connection, or canopy, photograph those details too.

Record the sign count and location. Note whether the sign is above a door, in a corridor, at an intersection, in a stair area, in a lobby, in a warehouse aisle, in a parking structure, or at an exterior discharge point. The replacement sign should fit the route, not just the wall opening.

If the old sign is missing, document the location instead. Photograph the wall or ceiling box, door, corridor, route, mounting holes, wiring, and any inspection note. A missing sign may require more route review than a visible failed sign because you cannot assume the old configuration was correct.

Step 2: Match Voltage And Power Source

Voltage is one of the easiest replacement details to miss. Many commercial exit signs support dual-voltage input, but not every sign supports every field condition. Check the existing label, wiring, project documents, or electrician's notes before ordering. Do not rely on the color or shape of the housing to determine voltage.

Common replacement questions include whether the sign is hardwired, whether it uses battery backup, whether it is AC-only in an approved system, whether it is connected to emergency power, whether remote capacity is involved, and whether the circuit is switched or unswitched. Exit signs normally need reliable illumination, so the wiring method matters.

If the voltage is unknown, stop and collect the field information before buying. Send photos through Request a Quote or have an electrician confirm the circuit. Ordering a sign before voltage is known can waste time and create an unsafe installation attempt.

Step 3: Confirm Battery Backup And Testing

Battery backup is a major replacement detail. If the existing sign has a test switch, charge indicator, battery, or emergency operation label, the replacement likely needs the same emergency function unless the project documents or AHJ direct a different approved approach. A sign that looks correct during normal power can still fail the job if it does not operate during power loss.

For facilities that want easier maintenance, compare self-testing exit signs. Self-testing diagnostics can help identify battery or charging problems, but they do not remove the need for a maintenance program, inspection process, and records where required.

If the old sign failed a runtime test, treat the failure as useful information. The battery may be bad, the sign may be obsolete, the charging circuit may have failed, or the environment may be shortening battery life. Replacement should solve the reason the sign failed, not just restore appearance.

Step 4: Match Face Count

Face count determines how many directions can read the sign. A single-face sign is usually used when people read the sign from one approach direction, often above a door or mounted flat to a wall. A double-face sign is used when people need to read the sign from two directions, such as a corridor, aisle, lobby, or intersection.

Do not match face count from the old order description alone. Stand in the route and confirm how occupants approach the sign. If the old sign is single-face but people approach from both directions, the replacement may need to be double-face or mounted differently.

Universal signs can help because they may support multiple face or mounting configurations, but universal does not always mean every face plate, back plate, canopy, or arrow option is included. Confirm what ships with the sign before ordering.

Step 5: Match Arrows And Direction

Directional arrows should be checked from the occupant's approach direction. A left arrow from the installer's position may be wrong from the viewer's position. On a double-face sign, each face may need a different arrow direction, and some faces may need no arrow at all.

Use arrows only when they clarify the route. A sign directly above an obvious exit door may not need an arrow, while a sign before a turn, stair, corridor intersection, or vestibule may need one. If the route is confusing, a different sign location may be better than trying to solve everything with arrows.

For a deeper route discussion, use Exit Sign Placement Requirements for Commercial Buildings. For arrow and face-count details, use Exit Sign Mounting Height, Arrows, and Face Count Guide.

Step 6: Match Mounting Style And Canopy

Mounting style affects both installation and visibility. A wall-mount sign sits flat against a wall or above a door. A ceiling-mount sign hangs from or attaches to the ceiling. An end-mount sign projects from a wall so it can be read down a corridor or from an approach angle.

Replacement orders often go wrong when the sign is correct but the mounting hardware is not. Confirm whether the sign needs a canopy, back plate, ceiling hardware, end-mount hardware, pendant kit, recessed kit, or special bracket. Also confirm whether the existing electrical box and mounting surface can support the selected sign.

Do not assume the old mounting style is still acceptable after a remodel. New ceilings, soffits, doors, shelves, displays, tenant signs, or partitions can block a sign that used to be visible. Check the finished route, not only the original install point.

Step 7: Match Legend Color, Lettering, And Visibility

Exit signs commonly use red or green legends, and replacement should match the project requirement, existing system, local preference, and AHJ direction. A building may have a consistent sign color throughout the route, or project documents may specify a color for the tenant space.

Visibility matters more than appearance alone. Confirm the sign can be read from the intended viewing distance and approach direction. Check whether the sign is blocked by a door swing, glass, ceiling feature, display, shelf, decoration, banner, rack, or other signage.

For code context, see Exit Sign Code Requirements for Commercial Buildings. That guide covers sign visibility, illumination, directional indication, and related planning details.

Step 8: Check Environment Rating

The replacement sign must match the environment. A standard indoor sign may be fine for an office corridor, but it may not be right for a damp back room, exterior canopy, parking structure, washdown area, industrial space, freezer approach, or high-abuse location.

Use wet-location exit signs where moisture, rain, hose-down, or exposed exterior conditions apply. Use wet-location combo units when the location also needs integrated emergency light heads. For routes that need separate lighting, compare wet-location emergency lights.

Environment mistakes are expensive because the sign may work at first and then fail early. If the old sign is yellowed, cracked, corroded, full of moisture, or repeatedly failing batteries, the replacement may need a better rating, housing, gasket, or temperature suitability.

Step 9: Compare Housing And Style

Housing style should match the application. Thermoplastic exit signs are common for standard commercial interiors. Edge-lit exit signs are often used in offices, lobbies, retail spaces, and architectural interiors. Steel exit signs can be useful where durability or project specifications call for a stronger housing.

Specialty replacement paths may include recessed signs, low-profile signs, self-testing signs, wet-location signs, photoluminescent signs, or combo fixtures. Choose the style that fits the route, mounting surface, environment, maintenance plan, and inspection need.

Do not select only by appearance. Two signs can look similar in a product image but differ in voltage, battery backup, face plates, mounting options, emergency rating, housing material, and environment suitability.

Combo Units And Separate Emergency Lights

If the existing fixture combines an exit sign with emergency light heads, compare exit sign emergency light combo units. A combo replacement has to match both sign requirements and emergency-lighting needs: sign face count, arrow direction, mounting style, head aiming, battery capacity, voltage, and environment rating.

A combo unit is not always the best replacement. If the sign location is right but the emergency light heads do not cover the walking surface, separate emergency lights may be better. If the emergency lighting location is right but the sign is hard to read from the route, a separate exit sign may be better.

Use Exit Signs With Emergency Lights: Combo Units vs Separate Fixtures before replacing a combo fixture blindly.

Replacement Walkthrough For A Failed Sign

When a sign fails, first identify the failure. Is the sign dark during normal power? Does the test button fail? Is the battery dead? Is the face cracked? Is the sign blocked? Is the arrow wrong? Is the housing damaged by water, impact, heat, or age? The replacement should be chosen around the failure mode.

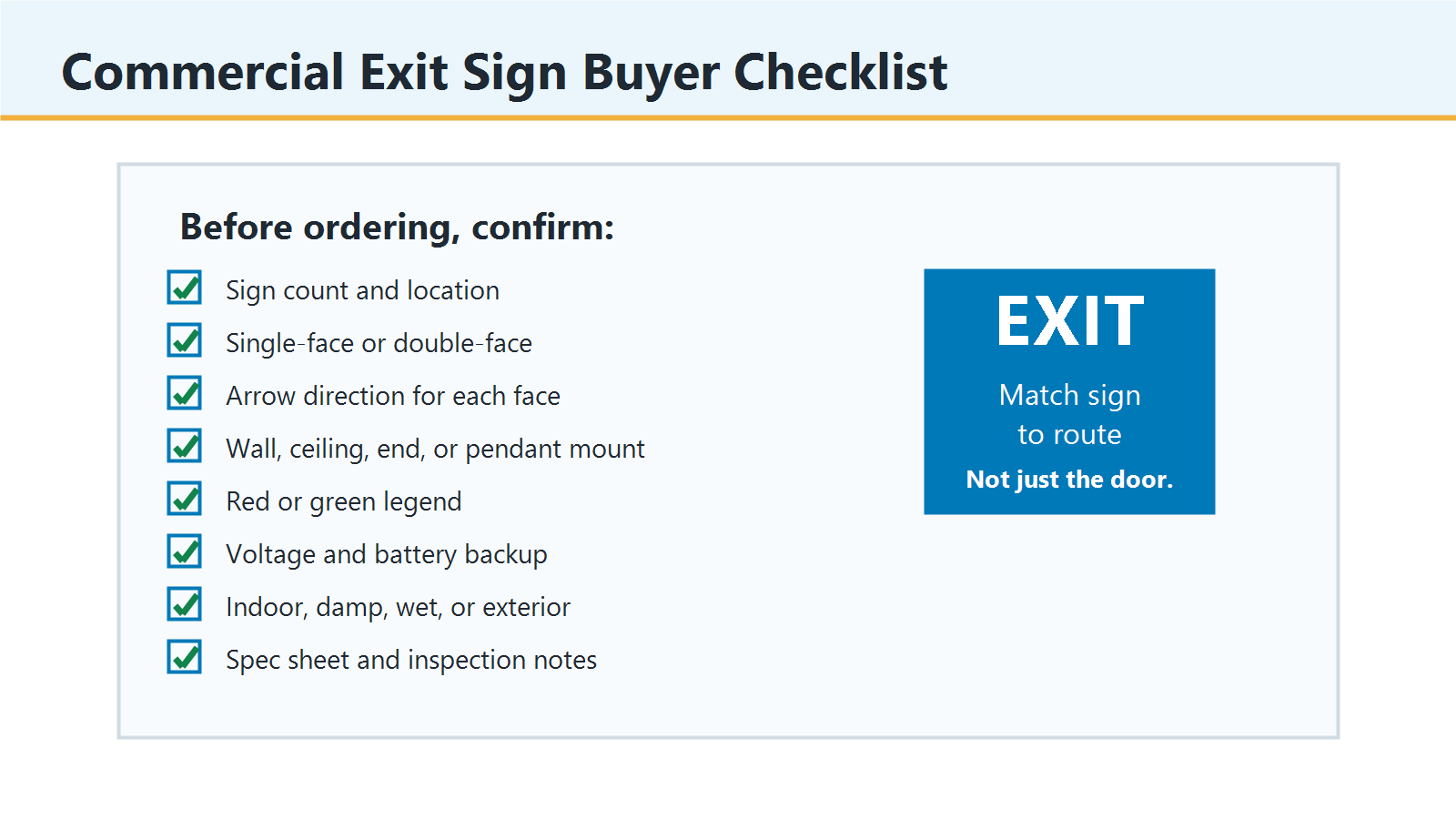

Next, collect the buying details: quantity, location, mounting style, face count, arrow direction, legend color, voltage, battery backup, test feature, environment, housing type, and inspection comments. If several signs failed together, check whether they share the same circuit, age, environment, or maintenance condition.

Finally, decide whether the replacement is urgent maintenance or a small layout correction. For urgent maintenance, match the approved existing function. For layout correction, review route visibility with the electrician, inspector, fire marshal, building official, or AHJ before ordering.

Product Paths To Compare

Use the replacement condition to choose the product path:

If the match is uncertain, send photos, labels, voltage, mounting style, face count, arrow direction, environment notes, and inspection comments through Request a Quote.

Common Mistakes To Avoid

• Ordering by photo without confirming voltage or battery backup.
• Replacing a double-face sign with a single-face sign.
• Using the wrong arrow direction on one side of a double-face sign.
• Forgetting the canopy, back plate, end-mount hardware, or ceiling hardware.
• Using an indoor sign in a wet, exterior, washdown, or parking structure location.
• Replacing a combo unit without checking emergency-head aiming and route lighting.
• Matching an old sign that was already blocked, wrong, or failed by inspection.
• Assuming illuminated exit signs replace tactile accessibility signs.

FAQ

Can I replace an exit sign myself?

Commercial exit signs are electrical and life-safety equipment. Replacement should be handled by a qualified person according to the product instructions, electrical requirements, adopted code, and AHJ direction.

What information do I need before ordering a replacement exit sign?

Collect photos, quantity, location, voltage, battery backup, face count, arrow direction, mounting style, legend color, environment rating, housing type, and any inspection notes. Those details prevent most wrong-product orders.

Should I match the old exit sign exactly?

Only when the old sign was correct for the route and the building layout has not changed. If the old sign was blocked, misdirected, damaged by the environment, or called out by an inspector, the replacement may need to change.

Do I need a battery backup exit sign?

Many commercial applications require exit signs to remain visible during loss of normal power, but the approved method depends on the project. Confirm whether the replacement needs integral battery backup, emergency power, or another approved approach.

How do I know if I need a single-face or double-face sign?

Stand in the route and check how occupants approach the sign. Use single-face where the sign is read from one direction. Use double-face where people need to read it from two directions, such as corridors, lobbies, aisles, and intersections.

Next Step

Before buying a replacement, photograph the existing sign from every approach direction and record voltage, battery backup, face count, arrows, mounting style, environment, and inspection notes. Then compare exit signs, edge-lit exit signs, thermoplastic exit signs, steel exit signs, wet-location exit signs, and exit sign emergency light combo units. For uncertain matches, use Request a Quote with photos and field details.
