Emergency Light Placement Requirements for Commercial Buildings

Important Compliance Note

Emergency lighting is a code-driven life-safety topic. The final answer for a specific building comes from the adopted building code, fire code, electrical design, occupancy classification, renovation scope, local amendments, and AHJ direction. Product pages and online guides can help you ask better questions, but they cannot approve a layout.

OSHA 1910.37 says each exit route must be adequately lighted so an employee with normal vision can see along the route, and it also says safeguards such as exit lighting must remain in proper working order. OSHA 1910.36 helps frame exit-route design topics such as exit access, exit discharge, route capacity, route width, outdoor exit routes, and the need for adequate exit routes. For products, UL 924 is the key emergency lighting and power equipment standard category to understand. Model-code resources such as NFPA 101 and the International Building Code means-of-egress chapter are useful context, but the adopted local code controls the project.

What Emergency Light Placement Means

Placement is not the same as fixture count. A building might have enough emergency lights on paper and still have poor coverage because heads point the wrong way, shelves block the beam, a stair landing is dark, or an exterior exit discharge path was forgotten. Good placement starts with how people move through the space.

Think of emergency light placement as a path problem. During normal operation, ceiling lights, task lights, daylight, signs, and familiarity help people understand the building. During an outage or emergency, that support may disappear. Emergency lighting should help people see the walking surface, recognize turns, avoid obstacles, and continue toward the next part of the exit route.

That is why placement decisions usually depend on the plan view, not just the fixture photo. You need to know where occupants start, where the exits are, what path they take, where the route changes direction, and what parts of the route would become dark if normal power failed.

Start With The Egress Route

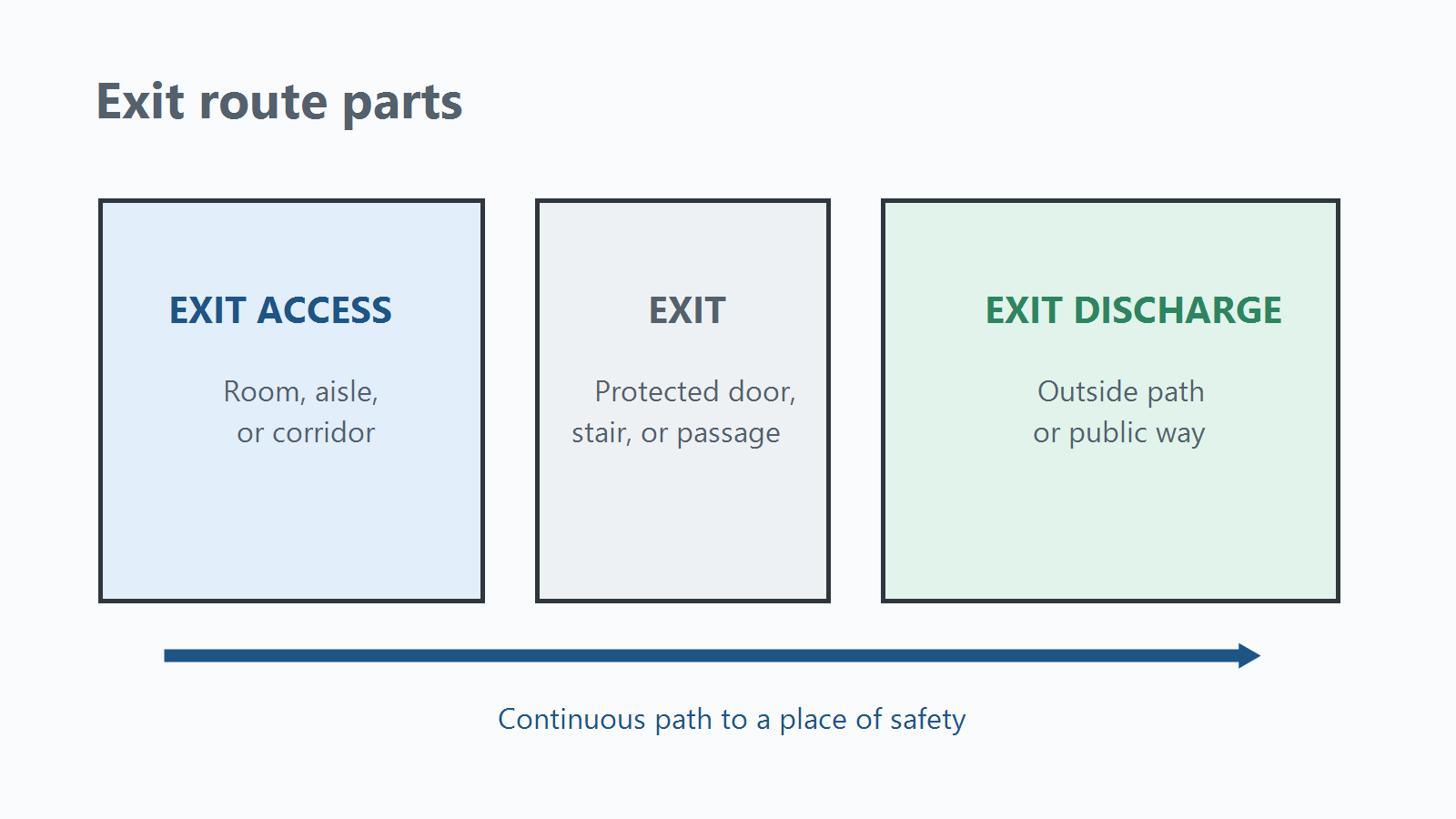

The easiest way to plan emergency light placement is to walk the egress route from the occupied area to the outside. Break that route into three practical zones: exit access, exit, and exit discharge.

Exit access is the path from an occupied room or area to an exit. It can include offices, retail aisles, warehouse aisles, corridors, classrooms, workrooms, kitchens, storage areas, and open floor areas. This is where many placement mistakes start, because people often install a light near the final exit door but forget the path that leads to it.

The exit is the protected part of the route, such as an enclosed stairway, exit passageway, protected corridor, or other approved exit component. Emergency lighting in this area matters because people may already be committed to leaving and may be moving on stairs or through a protected path.

Exit discharge is the path from the exit to the outside, public way, safe dispersal area, or other approved point. This area is easy to miss in replacements. If people leave a bright interior stair into a dark exterior landing, the egress route may still fail the practical test.

Common Emergency Light Locations

Emergency lights are commonly considered in areas where normal lighting loss would make the exit route hard to use. Typical locations include corridors, hallways, aisle accessways, exit access routes through open areas, stairways, stair landings, ramps, vestibules, exit doors, exterior discharge doors, electrical rooms, mechanical rooms, back-of-house work areas, loading areas, parking structures, and covered exterior paths.

These are not universal placement rules. They are starting points for a walkthrough. A small office suite, restaurant kitchen, warehouse, school corridor, hotel hallway, and industrial plant can all create different placement needs. The same two-head unit that works in a low corridor may be weak in a tall warehouse aisle or inappropriate in a damp exterior location.

When in doubt, sketch the route. Mark each exit sign, door, turn, stair, ramp, long corridor, large open area, exterior landing, and known obstruction. Then ask where emergency illumination is needed if the normal lighting circuit serving that area fails.

Decision Points, Turns, And Changes In Direction

Emergency light placement should pay special attention to decision points. A decision point is any location where a person must choose a direction, identify a door, turn a corner, enter a stair, pass through a vestibule, or continue toward the exit discharge. If that location goes dark, people can slow down, turn the wrong way, or miss the next part of the route.

Good examples include corridor intersections, T-junctions, doors from large rooms into corridors, doors from corridors into stairs, turns around stock shelving, turns around partitions, changes from an indoor route to an exterior discharge path, and locations where the exit sign is visible but the walking path below it is not.

Exit signs and emergency lights work together here. The sign identifies the direction or exit. The emergency light helps people see the walking surface and the surrounding path. If the sign plan is still being reviewed, use Exit Sign Code Requirements for Commercial Buildings with this placement article.

Stairs, Ramps, And Changes In Elevation

Stairs and ramps deserve extra attention because a small dark spot can create a trip or fall risk. People need to see treads, landings, handrail areas, direction changes, door thresholds, and the route at the top and bottom of the stair or ramp.

A fixture outside a stair door may not light the stair itself. A unit on one landing may not cover the full run, the next landing, or a turn in the stair. A wall-mounted two-head unit can help in some layouts, but taller or more complex stairs may require a different emergency lighting strategy, emergency-powered normal luminaires, remote heads, or project-specific design.

Ramps and changes in floor level create similar concerns. Check the top, bottom, turns, railings, and transition into the next room or corridor. For replacement projects, do not assume the old fixture placement was correct simply because it has been there for years.

Exit Doors And Exit Discharge Paths

Many buildings have emergency lighting inside but weak coverage at the exterior exit discharge. This can happen at rear doors, side exits, delivery areas, covered walkways, alley exits, parking-structure paths, exterior stair doors, and employee exits that are used less often than the front entrance.

The exit discharge path is part of the egress question. People need to be able to move away from the building toward a public way, open space, or other approved discharge condition. If the exterior door opens into a dark landing, step, ramp, or service yard, the fixture plan may need wet-location or outdoor-rated emergency lighting, an emergency-capable wall pack, or another approved lighting method.

Use environment rating carefully. Indoor thermoplastic emergency lights are not the right answer for rain, washdown, direct weather exposure, corrosive spaces, cold exterior locations, or harsh industrial conditions. For exposed applications, compare wet-location emergency lights or project-specific outdoor lighting options.

Spacing, Mounting Height, And Head Aiming

There is no responsible universal spacing answer such as "one emergency light every X feet" for every building. Spacing depends on fixture output, optics, mounting height, head aiming, corridor width, surface reflectance, ceiling height, obstructions, route geometry, and the illumination target required by the adopted code or design documents.

Mounting height matters because emergency heads are directional. A low wall-mounted unit may cover a short corridor well, while a high mounting point may need stronger output or different optics. In a warehouse or gym, standard low-output heads may not provide enough useful light on the walking surface. In a tight corridor, the same fixture may work well if the heads are aimed correctly.

Head aiming is one of the most practical field checks. Aim heads down the path of travel, toward the walking surface, stairs, ramps, doors, and decision points. Do not leave heads pointed at the ceiling, the wall above a door, glass, product displays, or equipment. After furniture, racks, partitions, or displays move, review the aiming again.

For complex projects, ask for photometric support or a layout review. Product documentation, manufacturer spacing data, drawings, and qualified design support are more reliable than guessing from a product image.

How Many Emergency Lights Does A Building Need?

The number of emergency lights depends on the route, not just the square footage. Two buildings with the same floor area can need different fixture counts because one has a simple open plan and the other has corridors, turns, stairs, ramps, back rooms, exterior doors, and obstructions. That is why fixture count should come after route review.

A practical estimating process starts with the egress path. Mark each occupied area, exit access path, turn, door, stair, ramp, open area, and exit discharge point. Then mark where normal lighting could fail and where emergency light would need to reach the walking surface. A single fixture may cover more than one nearby point if the output, aiming, and mounting position work. Another area may need multiple fixtures because the path turns, the ceiling is high, or equipment blocks the beam.

For small replacements, a like-for-like count may be acceptable when the existing locations passed inspection, the layout has not changed, and the old fixtures were appropriate for the environment. For new construction, remodels, warehouses, assembly spaces, schools, health care areas, hotels, or unusual layouts, fixture count should come from drawings, photometric data, and the project team. Treat online spacing estimates as a starting question, not a final design.

Fixture Type By Placement Problem

The best fixture type depends on the placement problem you are trying to solve. Standard indoor emergency lights are common for offices, retail back rooms, interior corridors, and low-ceiling commercial spaces. They are usually the first product path to compare, but they are not universal.

Remote-capable emergency lights can help when one battery unit needs to feed heads in nearby positions. This can be useful around turns, above doors, or near related spaces, but the main unit must have the correct remote capacity and compatible head voltage or wattage.

High-lumen emergency lights can help in larger rooms, longer paths, taller mounting heights, warehouses, manufacturing spaces, and open areas where standard heads may not provide enough useful coverage. They should be selected with more attention to mounting height and beam spread.

Exit sign emergency light combo units can be useful at a doorway where the sign and emergency heads belong together. They are not the best fit when the sign needs one position but the emergency heads need another. For that decision, use Combo Units vs Separate Fixtures.

Replacement Walkthrough

For replacements, start by documenting what is already installed. Take photos of the fixture, label, mounting surface, wire entry, test switch, charge indicator, head direction, and the route the fixture is supposed to cover. If the unit failed inspection, save the inspection note and mark the exact location.

Then ask whether you are replacing like-for-like or correcting a layout problem. A like-for-like replacement may be reasonable when the old product was appropriate, the location still makes sense, and the issue is a failed battery, damaged head, or obsolete fixture. A layout correction is needed when the old fixture was blocked, aimed poorly, rated incorrectly, too weak for the space, or missing an important part of the route.

Check voltage, mounting footprint, indoor or wet rating, battery/runtime documentation, remote-head capacity, self-testing needs, and housing material. If the existing fixture is part of a larger emergency power system, involve the electrician before ordering a replacement.

Product Paths To Compare

Use the placement problem to choose the product path:

If you are unsure which path fits, use Request a Quote and include photos, counts, mounting height, voltage, environment, and any inspection notes.

When To Get Layout Support

Some emergency light placements are simple replacements. Others need a layout review before buying. Get help when the space has high ceilings, long aisles, large open areas, complicated turns, stairs with multiple landings, exterior discharge paths, unusual occupancy, hazardous or wet locations, or a failed inspection note that mentions coverage.

Layout support is also useful when the owner wants to reduce fixture count without creating dark spots. A remote-capable unit, higher-output fixture, or emergency-powered normal luminaire may solve the problem more cleanly than adding several low-output units. The right answer depends on the plan, mounting height, head direction, battery capacity, wiring, and documentation needed for approval.

When requesting help, send a floor plan if available, plus photos facing both directions along the route. Include fixture counts, approximate mounting height, ceiling height, voltage, environment notes, and any AHJ or inspector comments. Those details make it much easier to route the project toward the right fixture family.

Common Placement Mistakes

• Putting emergency lights only at exit doors and ignoring the route that leads to those doors.
• Assuming one two-head unit can cover a long corridor, stair, or large open area without checking output and aiming.
• Forgetting the exterior exit discharge path.
• Using indoor fixtures outdoors, in wet areas, or in harsh industrial spaces.
• Leaving heads pointed at walls, ceilings, shelves, glass, or displays.
• Replacing old fixtures without checking whether the building layout changed.
• Blocking emergency heads with racks, signs, partitions, furniture, or equipment.
• Assuming combo units solve every doorway when separate fixtures would aim better.
• Ignoring remote-head load limits on remote-capable units.
• Buying fixtures before confirming voltage, mounting, rating, and AHJ notes.

Field Checklist Before Ordering

• Walk the exit access, exit, and exit discharge path.
• Mark corridors, doors, stairs, ramps, turns, and exterior landings.
• Identify areas that would become dark if normal lighting failed.
• Photograph existing fixtures, labels, test switches, and head direction.
• Measure or estimate mounting height and corridor or room dimensions.
• Note indoor, damp, wet, outdoor, industrial, or hazardous exposure.
• Check voltage and whether remote heads are present.
• Review failed inspection notes or AHJ comments.
• Confirm whether standard, wet-location, remote-capable, high-output, combo, or self-testing fixtures fit the application.
• Keep product documentation for the electrician, inspector, facility manager, or AHJ.

FAQ

How far apart should emergency lights be placed?

There is no universal spacing distance that works for every commercial building. Spacing depends on fixture output, optics, mounting height, head aiming, corridor width, surface reflectance, obstructions, and the adopted code or design documents. Use manufacturer data, drawings, and qualified layout support for complex spaces.

Do emergency lights need to be above every exit door?

Not always. Exit doors are common placement points, but the real question is whether the egress path remains visible. Some doors may need emergency illumination nearby, while other routes need fixtures along corridors, stairs, ramps, open areas, or exterior discharge paths.

Can an exit sign combo unit replace separate emergency lights?

Sometimes. A combo unit can work when the sign and emergency heads belong in the same location. Separate fixtures are better when the sign must be visible above a door but the emergency heads need to aim down a corridor, toward a stair, or across a different area.

Are outdoor emergency lights different from indoor units?

Yes. Outdoor, damp, wet, washdown, cold, or harsh locations need fixtures rated for the actual environment. Do not use a standard indoor emergency light for an exposed exterior discharge path unless the product documentation supports that application.

Who approves the final emergency light placement?

The AHJ, inspector, fire marshal, engineer of record, or project authority decides what is acceptable for the specific building. Use this guide to prepare product and layout questions, then confirm final requirements before ordering.

Next Step

For a new project, start with a marked plan or walkthrough photos. For a replacement project, collect existing fixture photos, model numbers, voltage, mounting height, and failed inspection notes. Then compare emergency lights, remote emergency lights, high-lumen emergency lights, and wet-location emergency lights against the actual placement problem. If the fixture choice is still unclear, send the details through Request a Quote before buying.
