Exit Signs with Emergency Lights: Combo Units vs Separate Fixtures

Important Compliance Note

This guide is for product selection and planning. It is not legal, engineering, or code approval advice. Final fixture placement depends on the adopted building code, fire code, electrical code, occupancy, renovation scope, project documents, local amendments, and the authority having jurisdiction, often called the AHJ.

A combo unit is not automatically compliant just because it combines an exit sign with emergency light heads. Separate fixtures are not automatically better either. The right choice is the one that meets the visibility, illumination, installation, environment, and inspection needs for that specific location.

Quick Answer

Use a combo unit when the exit sign needs to be in the same general location where emergency light heads can aim usefully along the egress path. That is common above or near exit doors, at small corridors, in back-of-house commercial spaces, and in replacement jobs where an existing combo unit already served the location well.

Use separate fixtures when the sign and the light need different positions. For example, an exit sign may need to be centered over a doorway for visibility, while emergency light heads may need to mount farther down a corridor, around a turn, higher on a wall, or in a different area to avoid dark spots.

The easiest decision test is this: if one fixture location can make the exit obvious and light the walking path, a combo unit may be efficient. If sign visibility and emergency light coverage pull in different directions, use separate fixtures.

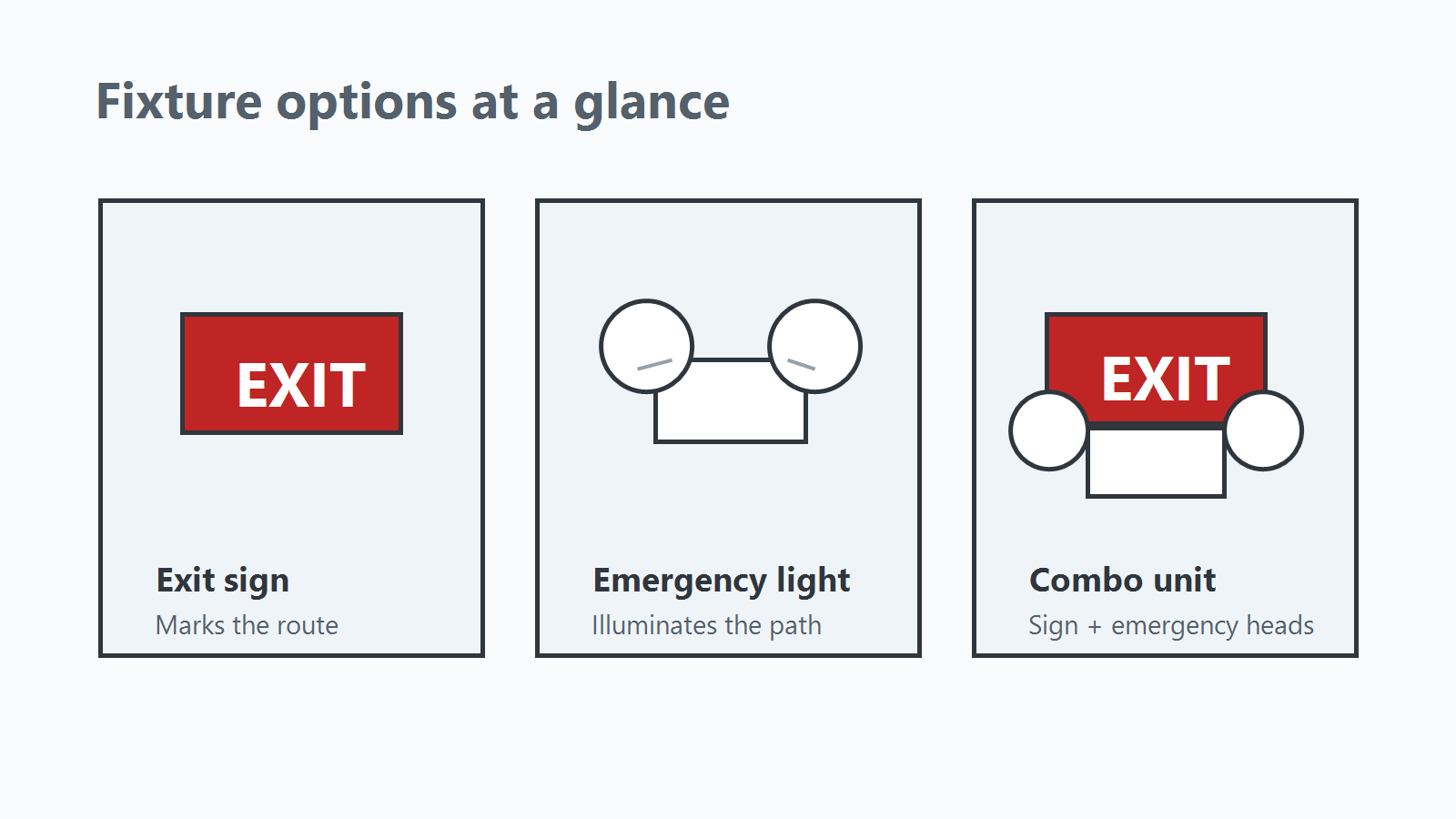

What Is an Exit Sign Emergency Light Combo?

An exit sign emergency light combo is one fixture that includes an illuminated exit sign and integrated emergency lamp heads. Most commercial combo units include a battery system, one or two adjustable heads, a sign face, mounting hardware, and options for single-face or double-face visibility.

Common choices include:

• Letter color: red or green, depending on project requirements and local practice.
• Face count: single-face for one viewing direction or double-face where the sign must be visible from both sides.
• Mounting: wall, ceiling, end mount, or canopy mount depending on the fixture and location.
• Head count: usually two adjustable emergency light heads, though configurations vary.
• Environment rating: standard indoor, damp-location, or wet-location options depending on exposure.
• Maintenance features: manual test button, charge indicator, or self-testing diagnostics.

For emergency lighting equipment, UL 924 is the key standard category to understand. Buyers should still confirm the actual product listing, installation instructions, and project requirements before assuming a particular fixture is appropriate.

When Combo Units Make Sense

Combo units are strongest when the sign location and the lighting location overlap. In many small commercial spaces, a doorway needs to be marked and the nearby exit access path needs backup illumination. A combo unit can cover both needs from one installed fixture.

Good-fit situations include:

• An exit door needs a sign above it and emergency heads can aim down the path of travel.
• A hallway or back-room exit needs a simple replacement for an existing combo fixture.
• The wall location gives both heads a useful aiming angle without obstruction.
• The project benefits from fewer fixture bodies and fewer separate products to order.
• Maintenance teams want one battery, one test button, and one fixture record for that doorway.
• The location needs a specific combo variant, such as a wet-location or self-testing unit.

Combo units can also help when the project is mostly a like-for-like replacement. If the existing combo unit passed inspection, was properly located, and simply failed due to age or battery condition, a new unit with the same core specs may be the cleanest path. Still verify voltage, mounting, face count, arrows, head style, and environment rating before ordering.

When Separate Fixtures Are Better

Separate fixtures are better when the exit sign and emergency light heads need different jobs. The sign is there to identify the exit and direction of travel. The emergency lights are there to illuminate the route when normal lighting fails. Those two jobs may require different fixture positions.

Separate fixtures often make more sense when:

• The exit sign must mount above a door, but the emergency heads need to cover a corridor turn.
• The emergency light must mount higher, lower, or farther from the sign for better aiming.
• The space needs more lamp heads than a combo unit can provide.
• One battery unit needs to power remote heads in nearby areas.
• The sign needs a special housing, while the emergency light needs a different output or environment rating.
• Maintenance wants independent replacement paths for signs and lights.

For larger routes, open rooms, warehouses, or longer corridors, separate emergency light fixtures can give the layout more flexibility. The sign can stay where it is easiest to see, and the lights can go where they provide better coverage.

Emergency Head Aiming and Coverage

Emergency light heads need to aim at the walking path, not just at the wall near the exit door. This is the detail that often separates a good combo-unit application from a poor one.

A combo unit above a door may work well if the heads can aim into a small room, short hallway, or immediate exit access path. It may work poorly if the route turns sharply, if shelving blocks the heads, if the fixture is too low, or if the doorway position causes one head to point into a wall or dead area.

Before choosing a combo unit, stand where the fixture will mount and ask:

• Can both heads aim at useful walking surfaces?
• Will doors, ceiling features, signs, shelves, or equipment block the beams?
• Does the route turn before the light reaches the critical area?
• Will one head waste output by pointing into a wall or glass storefront?
• Is the mounting height appropriate for the head output and coverage goal?

If the answer is uncertain, separate emergency lights or remote emergency lights may be a better planning path.

Sign Visibility, Arrows, and Line of Sight

Exit signs need to make the way out obvious. OSHA requires exit routes to be adequately lighted, exits to be clearly visible and marked, directional signage when the direction of travel is not immediately apparent, and safeguards such as exit lighting to remain in working order. See OSHA 1910.37 for the workplace exit-route language.

For combo-unit selection, this means the sign location has to be evaluated separately from the emergency head location. A combo unit can only replace a sign if the sign face is visible from the right approach. It can only replace emergency lighting if the heads cover the intended route.

Directional arrows matter too. If people approach a corridor intersection and the exit is not obvious, the sign may need arrows or a different location. A combo unit over the final exit door may not solve wayfinding at a turn farther back in the route.

Mounting, Face Count, and Arrows

Combo units are not one-size-fits-all. The same basic fixture family may have different face, arrow, color, and mounting options. Confirm those details before replacing an existing unit.

Key choices include:

• Wall mount: common above a doorway when visibility is needed from one side.
• Ceiling mount: useful where the sign must hang below the ceiling plane.
• End mount: useful where the sign needs to project from a wall and be visible from a corridor.
• Single-face: used when viewers approach from one direction.
• Double-face: used when the sign must be visible from both directions.
• Arrows: needed when the route turns or the direction is not obvious.
• Letter color: red or green, based on project documents, local requirements, or facility standards.

If any of those details are wrong, the fixture may be a poor match even if the category is correct.

Replacement Checklist

Replacement jobs are where combo units can either save time or create headaches. Before ordering, record the details from the existing fixture and the surrounding space.

• Existing model number and brand, if readable.
• Input voltage and wiring condition.
• Red or green lettering.
• Single-face or double-face requirement.
• Arrow direction and whether arrows are field selectable.
• Mounting method: wall, ceiling, end, or canopy.
• Head count, head style, and whether the heads are adjustable.
• Battery type, runtime expectation, and test feature.
• Indoor, damp-location, or wet-location environment.
• Remote-head capability, if remote heads are connected.

Photos help. Take one photo of the installed unit, one of the label, one of the mounting surface, and one looking down the egress path. Those four images can prevent many ordering mistakes.

Wet-Location and Outdoor Areas

Standard indoor combo units should not be used where the fixture is exposed to weather, water spray, washdown, or heavy moisture. Exterior doors, loading areas, parking structures, covered walkways, food service back-of-house spaces, and damp mechanical areas may need stronger protection.

Use wet-location combo units when the same exposed doorway needs both exit signage and emergency light heads from one fixture. If the sign and light positions need to separate, compare wet-location exit signs with wet-location emergency lights.

Do not choose wet-location equipment only by the product title. Check the product documentation, housing, lens, gasketing, temperature range, mounting instructions, and whether the location is damp, wet, outdoor, corrosive, or subject to direct spray.

Remote-Capable Combo Units

Some combo units can power remote heads. That can be useful when the sign and main heads work near the doorway, but one or two additional heads are needed nearby. It can also reduce the number of battery units a facility maintains.

Remote-capable does not mean unlimited. Before using remote-capable combo units, confirm the product documentation for remote-head compatibility, voltage, wattage capacity, wire distance, head type, and runtime impact.

If the route needs wider coverage, separate remote-capable emergency lights may be the better choice. A dedicated battery unit with remote heads can often be positioned for lighting coverage without forcing the exit sign into the same location.

Self-Testing and Maintenance

Combo units usually need routine inspection, functional testing, cleaning, and battery replacement over time. Self-testing models can simplify maintenance by running diagnostics and showing status through indicators.

Self-testing combo units can be helpful for schools, offices, warehouses, multi-tenant buildings, and facilities with many fixtures. They do not remove the need for maintenance records or human review, but they can make failures easier to spot.

For separate fixture layouts, compare self-testing options across the sign and emergency light categories. A facility may decide to standardize on self-testing signs, self-testing emergency lights, or combo units depending on maintenance access and budget.

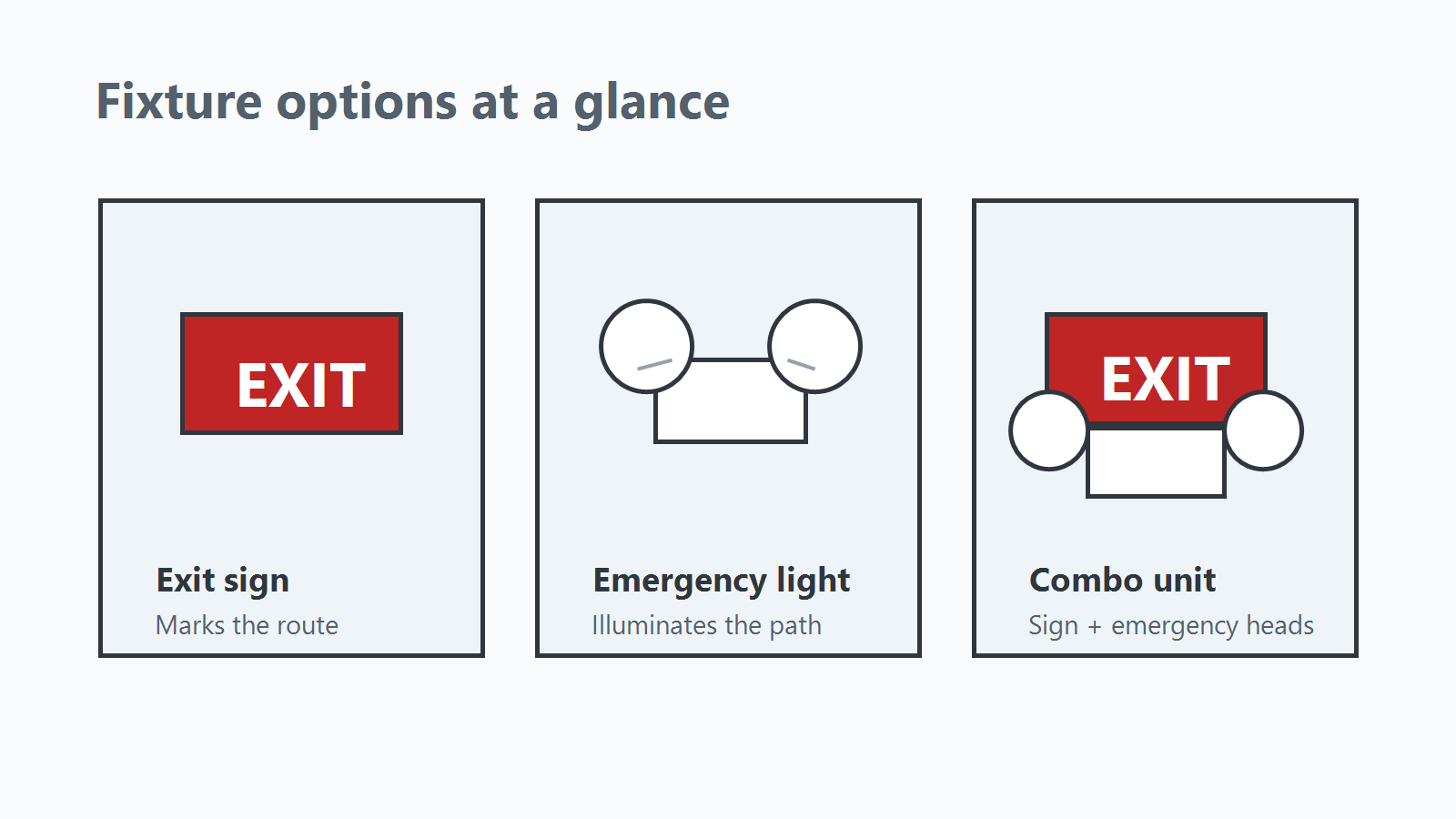

Combo Units vs Separate Fixtures

Common Mistakes

• Assuming one combo can cover every nearby area. The heads still need useful aiming and adequate coverage.
• Replacing by appearance only. Similar-looking units can differ by voltage, face count, arrows, rating, and remote capability.
• Using indoor fixtures outdoors. Exposed areas may need wet-location equipment.
• Forgetting line of sight. A sign over the final door may not help people at a corridor turn.
• Ignoring remote-head load. Remote heads must match the unit capacity and documentation.
• Choosing the wrong face count. Single-face and double-face signs solve different visibility problems.
• Skipping maintenance access. Batteries, test buttons, indicators, and labels should remain reachable.

Buyer Checklist

Before buying a combo unit or separate fixtures, confirm these details:

• Does the location need an exit sign, emergency lighting, or both?
• Can one fixture location handle both sign visibility and light coverage?
• Is the sign single-face or double-face?
• Are arrows needed?
• What mounting method is required?
• What input voltage is available?
• Does the space need damp-location or wet-location equipment?
• Are remote heads connected or planned?
• Is self-testing preferred for maintenance?
• Do project documents, facility standards, or the AHJ require a specific color, listing, or product type?

FAQ

Are exit sign emergency light combo units code compliant?

They can be appropriate when the product, installation, and placement match the project requirements. A combo unit is not automatically approved just because it combines an exit sign and emergency light heads. Confirm the final plan with the project documents and AHJ.

When should I use a combo unit instead of separate fixtures?

Use a combo unit when the sign must be visible from that location and the emergency heads can aim usefully along the egress path. Doorway replacements, short corridors, and small commercial spaces are common examples.

Can one combo unit replace both an exit sign and an emergency light?

Sometimes. It depends on whether the existing sign and emergency light functions can be served from the same mounting point. If the old fixtures were in different locations for visibility or coverage reasons, separate replacements may still be better.

Do combo units need battery backup?

Many combo units include battery backup for emergency operation. Confirm the fixture documentation, battery details, runtime expectations, and local requirements before ordering.

Can combo units be used outdoors?

Only if the product is suitable for the exposure. Outdoor doors, washdown areas, and weather-exposed locations may require wet-location combo units or separate wet-location signs and emergency lights.

What is a remote-capable combo unit?

A remote-capable combo unit can power compatible remote lamp heads. Check the product documentation for capacity, voltage, wattage, distance limits, and whether adding remote heads affects runtime.

Are self-testing combo units worth it?

They can be useful in buildings with many fixtures, hard-to-reach locations, or maintenance teams that want clearer diagnostics. They still need inspection records and follow-up when an indicator shows a fault.

What should I check before replacing an old combo unit?

Check voltage, mounting, face count, arrows, letter color, head count, battery, environment rating, remote-head wiring, and any label or model number on the existing fixture.

Next Step

If one fixture location can identify the exit and light the nearby path, start with exit sign and emergency light combo units. If the sign and lights need different positions, compare separate commercial exit signs and emergency lights.

For help narrowing a replacement, send fixture photos, counts, voltage, mounting notes, face count, arrow direction, head count, environment details, and any existing model numbers through Request a Quote.
