Emergency Light Spacing Requirements for Commercial Buildings

Important Compliance Note

Emergency light spacing is a code-driven life-safety topic. The final answer for a specific building comes from the adopted building code, fire code, electrical design, occupancy classification, renovation scope, local amendments, manufacturer data, project drawings, and AHJ direction. Product pages and online guides can help you prepare, but they cannot approve a layout.

OSHA 1910.37 requires exit routes to be adequately lighted so employees with normal vision can see along the route and also requires safeguards such as exit lighting to remain in working order. OSHA 1910.36 provides exit-route design context, including exit access, exits, exit discharge, route capacity, and route continuity. For products, UL 924 is the key standard category to understand for emergency lighting and power equipment. Model-code resources such as IBC Chapter 10 means of egress and NFPA 101 are useful context, but the adopted local requirements and AHJ decision control the project.

What Emergency Light Spacing Means

Spacing is the planned distance between emergency lighting coverage points along the route people use to leave the building. It includes fixture-to-fixture distance, fixture-to-door distance, head-to-stair distance, coverage around turns, coverage at changes in elevation, and coverage at exterior discharge points. In other words, spacing is not only a tape-measure question. It is a visibility question.

A project can have emergency lights installed at regular intervals and still perform poorly if a head is aimed too high, if a wall blocks the beam, if shelving interrupts the path, or if a turn is dark. The opposite can also happen: a project may need fewer fixtures than expected when higher-output heads, better optics, emergency-powered normal luminaires, or remote heads cover the route cleanly.

The practical goal is continuity. As a person moves through the exit access, exit, and exit discharge, the walking surface and next decision point should remain visible during loss of normal power. Good spacing supports movement. Poor spacing creates bright spots surrounded by dark gaps.

Why There Is No Universal Spacing Number

Many buyers ask how far apart emergency lights should be. The honest answer is that there is no single spacing distance that works for every commercial building. A low-ceiling office corridor, a wide retail aisle, a stair enclosure, a high-bay warehouse, a parking structure, and an exterior discharge path all behave differently.

The same fixture can produce different useful coverage depending on mounting height, wall reflectance, ceiling height, corridor width, head direction, beam spread, lens type, battery condition, and obstructions. A fixture that performs well in a narrow hallway may be too weak for a tall open area. A high-output unit that works in a warehouse may create glare or wasted light in a small corridor.

This is why a spacing table, if available from a manufacturer, should be treated as a planning tool rather than a universal approval. Spacing data is usually based on specific assumptions. If your project conditions differ, the result can differ. For complex spaces, use photometric data, drawings, and qualified layout support.

Start With The Exit Route

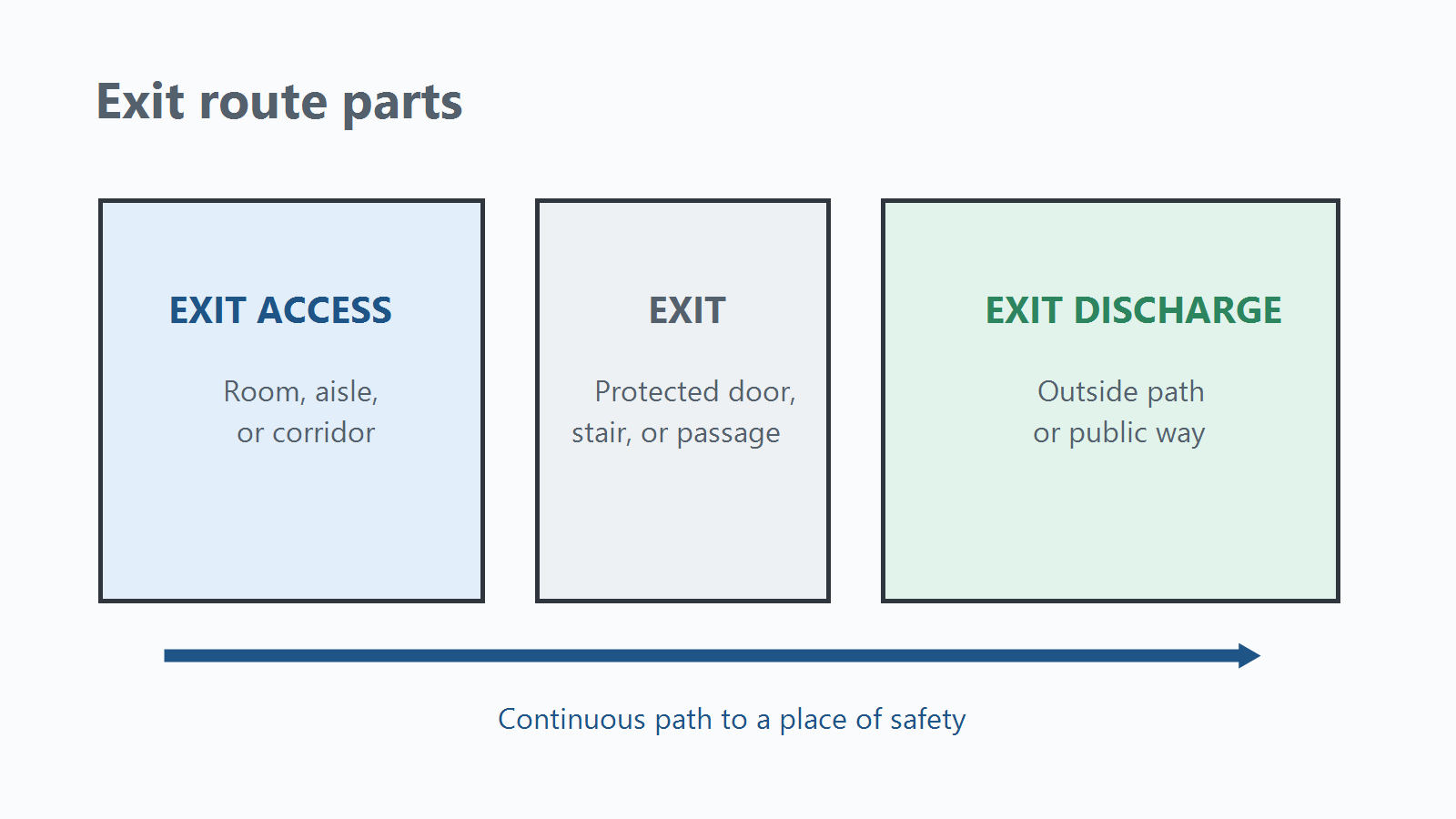

The best spacing process starts by walking the exit route. Break the route into three practical parts: exit access, exit, and exit discharge. The existing exit route diagram image in this article is useful because spacing should be planned across all three parts, not only around the final door.

Exit access includes the occupied area and the route toward an exit. This can include offices, classrooms, retail floors, warehouse aisles, back rooms, kitchens, corridors, open work areas, and assembly spaces. Emergency lighting in this zone helps people find the route before they reach the protected exit component.

The exit can include a stair enclosure, exit passageway, protected corridor, protected door, or other recognized exit component. Spacing here often focuses on stairs, landings, door thresholds, turns, and the path into the next section of the route.

Exit discharge is the path from the exit to the outside, public way, safe dispersal area, or approved discharge condition. This is one of the easiest areas to miss. A building can have adequate interior spacing and still fail the practical test if the exterior landing, ramp, step, alley, service yard, or covered walkway goes dark.

The Inputs That Change Spacing

Emergency light spacing changes when any major layout or fixture input changes. Before buying, collect the details that affect the layout:

• Room, corridor, aisle, stair, ramp, or discharge-path dimensions.
• Ceiling height and fixture mounting height.
• Wall, ceiling, and floor reflectance.
• Fixture output in emergency mode, not only normal-mode appearance.
• Head count, head adjustability, beam spread, and optics.
• Battery runtime documentation and whether remote heads are connected.
• Obstructions such as shelving, displays, racks, partitions, doors, equipment, or storage.
• Environment rating, including indoor, damp, wet, outdoor, cold, industrial, or hazardous exposure.
• Inspection comments, plan notes, or AHJ direction.

Those details are more useful than a rough fixture count. They help determine whether a standard two-head unit is enough, whether remote heads are needed, whether a high-output fixture is appropriate, or whether a project-specific lighting layout should be requested.

Mounting Height And Head Aiming

Mounting height is one of the biggest spacing variables. A fixture mounted at eight feet in a corridor behaves differently from a fixture mounted at twelve feet in a retail space or eighteen feet in a warehouse aisle. As mounting height increases, the fixture may need higher output, different optics, or a different emergency lighting strategy.

Head aiming matters just as much as fixture location. Emergency heads should aim toward the walking surface, doors, turns, stairs, ramps, and decision points. They should not aim at ceilings, blank walls, glass, tall shelving, signage, or areas outside the path of travel. A well-placed unit can fail visually if the heads are pointed poorly.

Check aiming from the occupant's path, not only from the ladder. Stand at likely approach points and look down the route. If the walking surface, stair tread, corridor turn, or exit door is not visible during a loss of normal lighting, the layout needs adjustment.

Corridors, Aisles, And Long Runs

Corridors and aisles are where spacing questions often start. The goal is even enough coverage along the travel path, especially at doors, turns, intersections, long straight runs, and changes from one space to another. Regular spacing can be helpful, but it should not replace route review.

In a straight corridor, fixtures may be spaced so their beams overlap enough to avoid dark gaps. In a corridor with doors, alcoves, corners, or intersections, the spacing may tighten near decision points. In a warehouse aisle, rack height and stored product can block light, so the mounting location and head direction may be more important than the linear distance between units.

Do not treat corridor length alone as the answer. A long corridor with clear sight lines and reflective surfaces can behave differently from a shorter corridor with dark finishes, door recesses, display walls, or equipment along the path.

Rooms, Open Areas, And Warehouses

Open areas create a different spacing challenge because the exit route may not be defined by a narrow corridor wall. Retail sales floors, warehouses, manufacturing spaces, gyms, cafeterias, showrooms, and open offices may need emergency lighting that helps people identify the path to the exit access, not only the final doorway.

In open areas, start by identifying the intended route. Mark the exits, aisles, travel paths, directional signs, and obstacles. Then ask where normal lighting failure would make the route unclear or unsafe. The answer may be standard emergency lights, higher-output units, emergency-powered normal lighting, remote heads, or a combination of approaches.

Warehouses and high-bay spaces deserve extra care. Tall mounting heights, racking, forklifts, stored goods, and changing inventory can reduce useful emergency illumination. Product spacing claims made for low ceilings may not apply. Use fixture documentation and layout support before assuming a standard low-output fixture can cover a tall aisle.

Stairs, Ramps, And Changes In Elevation

Stairs, ramps, landings, and changes in floor level are high-priority spacing locations because people need to see the walking surface clearly. Spacing should account for the top, bottom, intermediate landings, turns, door thresholds, handrail areas, and the transition into the next part of the route.

A fixture outside a stair door may not light the stair itself. A unit on one landing may not cover the entire run, the next landing, or a turn. In some layouts, emergency-powered stair lighting or a more engineered approach may be better than adding wall-mounted two-head units.

Ramps have similar concerns. Check the top and bottom of the ramp, the route leading to the ramp, any landings or turns, and the point where the ramp reaches a door, corridor, vestibule, or exterior discharge path.

Exit Doors And Exit Discharge Paths

Exit doors are common emergency lighting locations, but spacing should continue beyond the door when the exit discharge path is part of the egress route. Rear exits, side exits, service doors, loading areas, exterior stairs, alley exits, covered paths, and parking structure routes are easy to overlook.

If people leave a bright interior into a dark exterior landing, step, ramp, or service yard, the route may still be difficult to use. Exterior discharge spacing may require wet-location emergency lights, emergency-capable exterior fixtures, remote heads rated for the environment, or another approved lighting method.

For the sign side of the same route, pair this article with Exit Sign Placement Requirements for Commercial Buildings. Exit signs help people know where to go. Emergency lights help them see the path, walking surface, and next decision point.

Fixture Output, Optics, And Runtime

Emergency light spacing depends on output in emergency operation, not just how bright the fixture looks in a product photo. Review the fixture documentation for emergency-mode output, battery/runtime information, head wattage, lamp type, and listing details. If a fixture has adjustable heads, confirm the output and beam pattern for the heads being used.

Optics matter because emergency lighting is directional. A narrow beam may reach farther but leave dark areas to the side. A wider beam may cover a nearby walking surface better but fade sooner. In a small corridor, a standard head may be enough. In a wide open area, taller space, or exterior path, a different output class may be needed.

Runtime matters because emergency lighting must remain useful for the required duration under the project requirements. Battery age, temperature, remote-head load, and fixture condition can affect performance. For replacements, failed runtime tests should be treated as both maintenance and spacing data: a fixture that fails early may no longer support the route it was intended to cover.

Remote Heads And Remote-Capable Units

Remote emergency lights can help solve spacing problems around nearby turns, doorways, stairs, or related spaces. A remote-capable battery unit can power additional heads away from the main housing, which may place light where the route needs it without installing several complete battery units.

Remote heads are not automatic coverage multipliers. The main unit must have enough remote capacity, the remote heads must be compatible, the wiring distance and load must be acceptable, and the layout must still place light on the right surfaces. If remote load is added without checking capacity, runtime or output may suffer.

Use remote heads when the battery location and the lighting location are different. For example, the main unit may be mounted near accessible wiring, while remote heads aim down a corridor turn or toward an exterior vestibule. Confirm this approach with the electrician and project authority before ordering.

Wet, Outdoor, And High-Output Applications

Spacing problems often appear in locations where standard indoor emergency lights are not the best fit. Exterior discharge routes, damp corridors, washdown areas, cold storage, parking structures, industrial spaces, warehouses, and high ceilings can all require different equipment.

Use wet-location emergency lights where moisture, rain, washdown, or exposed exterior conditions apply. Use high-lumen emergency lights where the path is wide, tall, open, or difficult to cover with standard heads. Use specialty-rated equipment where the environment requires it, including hazardous-location products when project documents call for classified-location equipment.

Environment rating does not replace spacing review. A wet-location unit still needs correct output, mounting height, aiming, and coverage. A high-output unit still needs to avoid glare and missed turns. Specialty products should solve the actual route problem, not just match a catalog category.

Replacement Walkthrough

For replacements, start by documenting the existing spacing. Walk the route and photograph each fixture from both directions of travel. Capture head direction, mounting height, fixture label, test switch, charge indicator, wiring location, remote-head connections, and any obstructions.

Then ask whether the project is a like-for-like replacement or a layout correction. Like-for-like may make sense when the existing layout passed inspection, the building layout has not changed, the old fixture was appropriate for the environment, and the issue is a failed battery, damaged head, or obsolete unit. A layout correction is needed when the route changed, heads are blocked, the fixture is too weak, the discharge path is dark, or an inspection note mentions coverage.

Do not replace blindly after a renovation. New walls, racks, displays, doors, furniture, tenant improvements, or storage practices can change the spacing need. If the path changed, the emergency light layout should be reviewed before ordering.

Product Paths To Compare

Use the spacing problem to choose the product path:

Spacing need	Product path	What to verify
Typical interior corridor or small room	Emergency lights	Voltage, head output, runtime, mounting height, head aiming
Nearby turn, doorway, stair, or related space	Remote emergency lights	Remote capacity, compatible heads, wiring distance, total load
Wide room, high ceiling, warehouse, or long throw	High-lumen emergency lights	Emergency-mode output, optics, mounting height, layout support
Exterior discharge or moisture exposure	Wet-location emergency lights	Wet/damp rating, temperature, gasket, housing, exposure
Doorway needing both signage and light heads	Combo units	Head aiming, sign face count, arrows, battery, mounting position
Facility wants easier routine checks	Self-testing emergency lights	Diagnostic indicators, records process, visibility, maintenance plan

If the fixture path is unclear, use Request a Quote and include photos, floor plans if available, mounting height, approximate dimensions, environment notes, voltage, and inspection comments.

Common Mistakes And Field Checklist

Common spacing mistakes include using a universal distance without checking the route, placing fixtures only at exit doors, forgetting exterior discharge, aiming heads at walls or ceilings, using indoor fixtures outdoors, ignoring mounting height, overloading remote heads, and failing to update the layout after shelves, walls, or tenant spaces change.

Before ordering, collect these field details:

• Walk the exit access, exit, and exit discharge path.
• Mark corridors, turns, doors, stairs, ramps, open areas, and exterior landings.
• Measure or estimate corridor length, room dimensions, ceiling height, and mounting height.
• Photograph existing fixtures, heads, labels, test switches, and remote heads.
• Identify obstructions such as racks, shelving, displays, partitions, doors, or equipment.
• Note indoor, damp, wet, outdoor, cold, industrial, or hazardous exposure.
• Record voltage, quantity, battery/runtime issues, and failed inspection comments.
• Decide whether standard, remote-capable, high-output, wet-location, combo, or self-testing fixtures fit the spacing problem.
• Save product documentation for the electrician, inspector, facility manager, or AHJ.

FAQ

How far apart should emergency lights be spaced?

There is no universal distance that works for every building. Spacing depends on fixture output, optics, mounting height, head aiming, corridor width, room size, surface reflectance, obstructions, environment, and the adopted requirements for the project.

Can I use one emergency light for every exit door?

Not as a complete spacing method. Exit doors are important, but emergency lighting may also be needed along corridors, aisles, rooms, stairs, ramps, turns, vestibules, and exterior discharge paths. The route between doors matters.

Do high-lumen emergency lights let me use fewer fixtures?

Sometimes, but not always. Higher output can extend useful coverage in wide, tall, or open spaces, but the layout still depends on optics, aiming, mounting height, obstructions, and approval. Avoid using high output as a substitute for route review.

When should I use remote heads?

Use remote heads when the best battery-unit location and the best lighting location are different. They can help around turns, doors, stairs, vestibules, or nearby exterior points, but the main unit must have enough compatible remote capacity.

Who approves emergency light spacing?

The AHJ, inspector, fire marshal, engineer of record, building official, or project authority decides what is acceptable for the specific building. Use this guide to prepare product and layout questions before buying.

Next Step

For a replacement, gather photos, mounting height, voltage, fixture labels, and inspection notes. For a new or revised layout, mark the exit route and collect dimensions before choosing fixtures. Then compare emergency lights, remote emergency lights, high-lumen emergency lights, wet-location emergency lights, and self-testing emergency lights. If spacing is uncertain, send the details through Request a Quote before ordering.
