Emergency Light Battery Backup and 90-Minute Runtime Requirements

Important Compliance Note

Emergency lighting is life-safety equipment, not just a fixture purchase. This guide is for product selection and planning. It is not legal, engineering, electrical, accessibility, fire-code, or inspection approval advice. The final design should be confirmed against the adopted code, local amendments, project documents, listing, installation instructions, electrical requirements, maintenance records, and authority having jurisdiction, often called the AHJ.

OSHA 1910.37 requires exit-route safeguards such as exit lighting to remain in proper working order and requires exit routes to be adequately lighted. UL 924 covers emergency lighting and power equipment, including emergency luminaires, unit equipment, battery banks, inverters, and related controls. Model-code context may involve IBC Chapter 10 and, for many facilities, NFPA 101 Life Safety Code. Always confirm the requirement that applies to the building and jurisdiction.

What 90-Minute Runtime Means

In commercial emergency lighting, 90-minute runtime means the emergency lighting equipment is expected to operate in emergency mode for at least 90 minutes after loss of normal power under the conditions covered by the product listing, code requirement, and installation instructions. In plain language, the light cannot only flash on for a few minutes. It needs enough stored or emergency-supplied power to support egress lighting through the required emergency period.

The 90-minute target is not a brightness promise by itself. Runtime tells you how long the equipment should operate. Illumination level, fixture placement, head aiming, mounting height, spacing, room layout, remote-head load, and surface conditions determine whether the route is actually usable. A fixture can have a 90-minute rating and still be the wrong product if it is mounted poorly, aimed incorrectly, overloaded, or placed too far apart.

Think of runtime as the battery side of the requirement and coverage as the lighting side of the requirement. A small dual-head unit near a short corridor might have enough battery and coverage for its assigned area. The same unit installed too high, pointed at the wrong wall, feeding remote heads, or trying to cover a large open area can fall short even though the carton says emergency light. Product selection should follow the route, not the other way around.

That is why battery planning and layout planning belong together. Use Emergency Light Placement Requirements to decide where emergency illumination is needed, then use Emergency Light Spacing Requirements to avoid overextending fixtures beyond what they can cover.

Battery Backup Vs Emergency Power

Battery backup usually means the fixture or system includes a battery and charging circuit that keeps the emergency load ready while normal power is available. When normal power fails, the equipment switches to emergency operation and uses the stored battery energy to power emergency lamps, an exit sign, remote heads, or a connected emergency load.

Emergency power can also come from other approved systems, such as generators, central inverters, central battery systems, or emergency circuits. Those designs are different from a self-contained wall-mounted emergency light. They may involve transfer equipment, branch-circuit rules, monitoring, and engineering coordination. A fixture with no integral battery can still be part of an emergency lighting system if it is supplied by an approved emergency power system, but that is a design decision, not a product-image assumption.

For replacement work, this distinction matters because two fixtures can look nearly identical while being intended for different power strategies. One may include its own battery and test switch. Another may be a normal luminaire controlled by an emergency circuit. Another may be an exit sign that relies on a separate emergency source. Matching appearance alone can remove an emergency function that the original installation depended on.

For smaller commercial replacements, self-contained emergency lights are common because the battery, charger, test switch, indicator, and lamp heads are in one unit. For larger projects, special occupancies, architectural areas, or sites with many emergency loads, the project may use a more centralized approach. The important buying question is not only "does it have a battery?" The better question is "what approved emergency power method is this location supposed to use?"

Where Battery Backup Is Used

Battery backup is commonly used on emergency light units, exit sign emergency light combo units, self-testing exit signs, remote-capable emergency units, emergency wall packs, and certain battery-backup luminaires. The right path depends on what the location needs during loss of normal power.

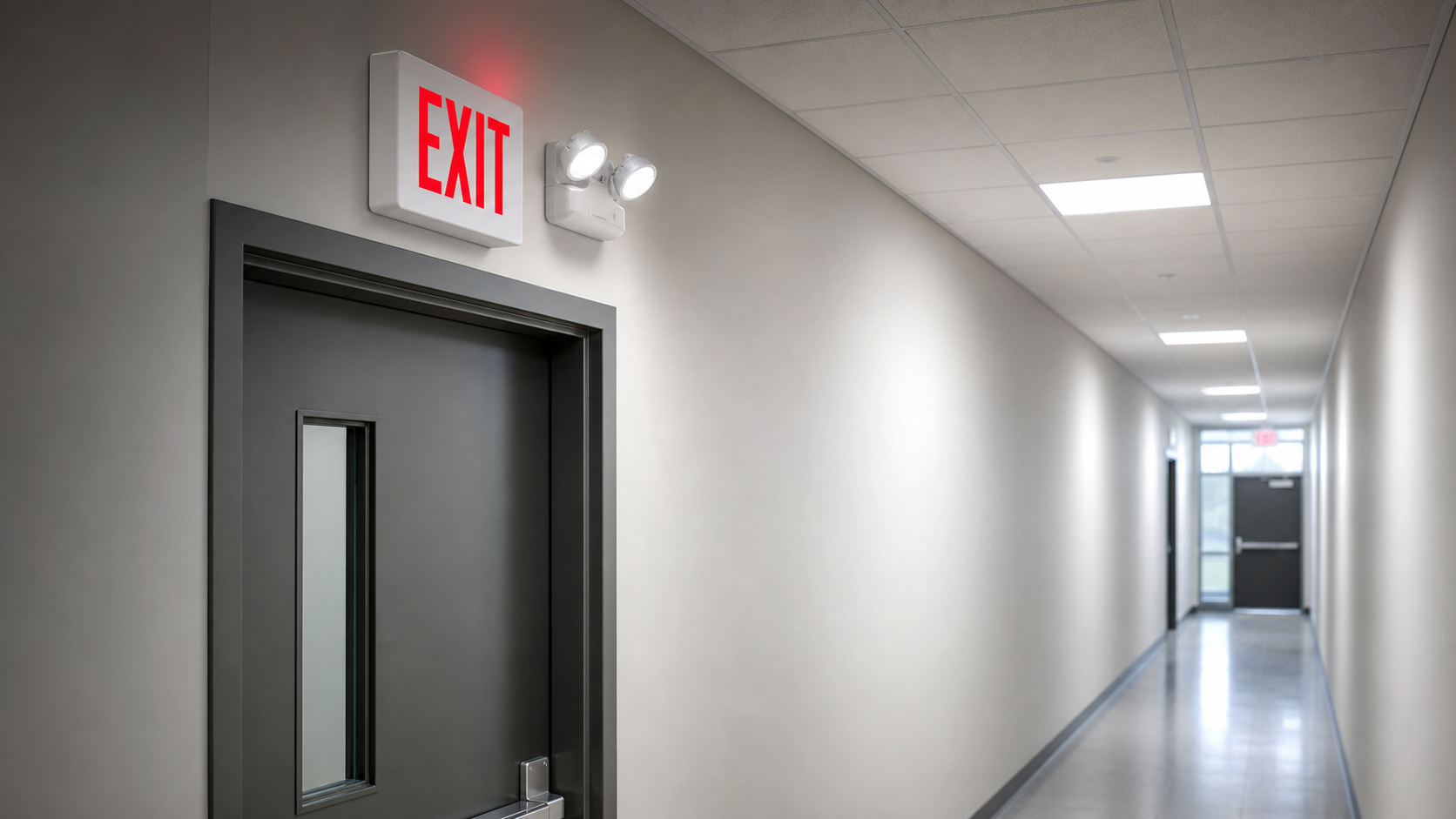

A standard corridor, small office, retail back room, storage route, restroom corridor, or utility area may use a compact dual-head emergency light. A lobby, open office, warehouse aisle, or long corridor may need different spacing, higher output, remote heads, or multiple units. An exterior door, loading area, parking structure, or canopy may require a wet-location or outdoor-rated product.

Exit signs and emergency lights solve different jobs. Exit signs mark the route and exits. Emergency lights illuminate the walking surface and route features. Combo fixtures can solve both in one housing when the sign location and light-head coverage both make sense. If the sign is readable but the walking surface is dark, add or relocate emergency lighting. If the walking surface is lit but the exit is not marked, address the sign path.

How Runtime Is Lost In The Field

Runtime problems often start before the power outage. A battery can age, sit in high heat, sit in cold conditions, fail to charge, lose capacity, become disconnected, or be paired with too much load. A fixture can also be installed on the wrong circuit, switched off unintentionally, or placed where the test button and charge indicator are not easy to inspect.

Remote heads are another common runtime trap. A remote-capable emergency light has a battery sized for the local heads and a specific amount of additional remote load. If the connected remote heads exceed the listed capacity, runtime can drop and the fixture can fail the intended emergency function. Always compare the remote-head wattage, voltage, wire run, and fixture capacity before ordering or adding heads.

Maintenance history is useful here. If several fixtures fail at the same time, the issue may be age, battery replacement timing, a shared circuit, or a maintenance program that has not caught weak units early enough. If one fixture fails repeatedly, look for local conditions such as heat, moisture, blocked ventilation, impact, overloaded remotes, or a product that is not right for the space.

Environment matters too. Heat can shorten battery life. Cold can reduce available capacity. Moisture can damage housings, gaskets, boards, terminals, and batteries. Vibration, impact, dust, and corrosive conditions can shorten fixture life. If a unit keeps failing in the same location, replacing it with the same indoor product may repeat the problem.

Remote Heads And Battery Capacity

Remote heads can be useful when the battery unit is mounted in one location but light is needed nearby. For example, a remote-capable unit may feed remote heads around a corner, near an exit door, in a vestibule, or across a short route segment. The benefit is flexibility. The risk is overloading the unit or stretching coverage beyond the listing and layout.

Before buying remote heads, confirm the battery unit supports remote load, the remote-head voltage matches, the total wattage is within capacity, the wire run is appropriate, the heads are listed for the environment, and the final aiming supports the egress path. Do not assume any emergency head can be added to any emergency light.

If the route needs more light than one unit can provide, compare remote emergency lights, additional emergency lights, or higher-output units rather than overloading a smaller battery. For warehouses, gymnasiums, industrial paths, and taller mounting heights, a standard compact wall unit may not be enough.

Exit Sign Combo Units

An exit sign emergency light combo unit combines sign visibility and emergency lamp heads in one fixture. It can be a clean solution above an exit door when the sign needs to be there and the heads can aim where emergency illumination is needed. The battery in the combo unit has to support the sign and the emergency heads for the required runtime.

Combos can be the wrong path when the sign location is not the best lighting location. A sign may belong above a door, while emergency light heads may need to illuminate a turn, stair approach, corridor section, or exit discharge path. In those cases, a separate exit sign and separate emergency lights may perform better than forcing both jobs into one housing.

Use Exit Signs With Emergency Lights: Combo Units vs Separate Fixtures when deciding whether a combo unit makes sense. For replacement projects, also use Exit Sign Replacement Guide so the face count, arrows, voltage, mounting style, and battery function are not missed.

Outdoor And Wet-Location Runtime Issues

Outdoor and wet-location projects need extra attention because the environment can stress the fixture and battery. A standard indoor emergency light may not be suitable for rain, washdown, condensation, exterior canopies, loading docks, parking structures, industrial doors, or damp utility spaces. The housing, gasket, lens, hardware, temperature range, and battery suitability all matter.

Use wet-location emergency lights where moisture or exterior exposure is present. Use wet-location combo units when the same location also needs an exit sign and emergency heads. For exterior building lighting that must support emergency operation, compare Battery Backup Wall Pack Lights and UL 924.

For cold or hot areas, check the product specification before assuming 90-minute performance. Battery chemistry and fixture design can behave differently in temperature extremes. If the project is a freezer, unconditioned warehouse, exterior canopy, or high-heat mechanical area, confirm temperature suitability before ordering.

Self-Testing And Diagnostics

Self-testing emergency lights can help maintenance teams identify battery, lamp, charger, or circuit problems. A self-testing unit typically runs automated checks and uses indicators to show status or faults. This can be useful in buildings with many fixtures, limited maintenance staff, or recurring inspection pressure.

Self-testing does not remove the need for an inspection and maintenance process. Someone still has to look at the fixture, understand the indicator, keep records where required, replace failed parts, and correct field problems. A self-testing unit with a blocked lens, wrong aiming, dead remote head, or wrong location can still fail the project goal.

Compare self-testing emergency lights when maintenance visibility matters. For sign-plus-light applications, compare self-testing combo units. For testing routines and logs, use Emergency Light and Exit Sign Testing Checklist.

Battery Replacement Vs Fixture Replacement

When an emergency light fails a test, the battery is the first suspect, but it is not the only possible problem. The charger may have failed, the board may be damaged, the lamps may be weak, the test switch may be broken, remote heads may be overloading the unit, or the environment may have damaged the housing. Replacing only the battery can be reasonable when the fixture is otherwise correct, listed parts are available, and the cause is normal battery aging.

Fixture replacement is often better when the unit is old, obsolete, damaged, wet inside, yellowed, cracked, missing labels, not listed for the environment, hard to inspect, or repeatedly failing. Replacement can also be the better choice when the route has changed and the existing location, output, or head aiming no longer works.

For portfolio maintenance, separate the decision into three buckets: pass, repair, and replace. Passing units still need records and periodic checks. Repair candidates need listed replacement parts and a clear failure cause. Replace candidates need a fixture match that covers power, runtime, output, mounting, environment, and inspection expectations. This keeps teams from spending labor on fixtures that should be retired.

If you replace the battery, match the battery type, voltage, capacity, connector, and manufacturer instructions. If you replace the full fixture, match the emergency function, input voltage, mounting, head count, remote capacity, environment rating, self-testing need, and inspection comments. Do not use a random battery or random fixture just because it fits inside the housing.

Field Checklist Before Ordering

Collecting field details before ordering prevents most emergency-light battery and runtime mistakes. Use this checklist before buying replacement fixtures or planning a new small project:

• Confirm whether the location needs emergency illumination, exit signage, or both.
• Record whether the equipment needs integral battery backup, central emergency power, or another approved method.
• Confirm the expected emergency runtime, commonly planned around 90 minutes for commercial egress applications.
• Check input voltage, circuit type, and whether the fixture must be connected to unswitched normal power.
• Count local heads and remote heads, then compare total load to battery capacity.
• Confirm mounting height, head aiming, room layout, route width, and spacing.
• Check indoor, damp, wet, exterior, cold, high-heat, industrial, or high-abuse conditions.
• Decide whether self-testing diagnostics are helpful for the maintenance team.
• Photograph the old fixture, label, wiring location, test switch, charge indicator, and any inspection note.
• Confirm final requirements with the electrician, building official, fire marshal, inspector, or AHJ.

Product Paths To Compare

Use the field condition to choose the right product path:

If the correct path is unclear, use Request a Quote and include photos, fixture count, voltage, mounting height, environment, remote-head count, inspection notes, and any product labels you can read.

Common Mistakes To Avoid

• Assuming every emergency light automatically provides the required 90-minute runtime for every load.
• Adding remote heads without checking voltage, wattage, and battery capacity.
• Using indoor fixtures in wet, exterior, cold, or harsh environments.
• Replacing only the battery when the charger, board, lamps, or housing are also failing.
• Choosing a combo unit when the exit sign location does not illuminate the walking surface.
• Ignoring mounting height, head aiming, and spacing because the product says emergency light.
• Missing the difference between normal lighting, emergency lighting, and exit signage.
• Buying before confirming the adopted code, project documents, listing, and AHJ expectations.

FAQ

Do commercial emergency lights need 90-minute battery backup?

Many commercial egress-lighting applications are planned around a 90-minute emergency operating period, but the exact requirement depends on the adopted code, occupancy, project documents, equipment listing, and AHJ. Treat 90 minutes as a key planning target to confirm before ordering.

Does a 90-minute emergency light guarantee the route is compliant?

No. Runtime is only one part of the decision. The fixture still has to be placed, spaced, aimed, powered, maintained, and selected for the environment so the exit route has usable illumination during emergency operation.

Can I add remote heads to any emergency light?

No. The emergency light must be rated for remote heads, and the connected remote load must stay within the unit capacity. Confirm voltage, wattage, wiring distance, environment rating, and installation instructions before adding remote heads.

Should I replace the battery or the whole emergency light?

Replace the battery when the fixture is otherwise correct, the listed replacement battery is available, and the failure is normal battery aging. Replace the fixture when the housing, charger, lamps, listing, environment rating, or route coverage no longer fits the job.

Are self-testing emergency lights worth it?

Self-testing emergency lights can be useful when a facility has many fixtures or wants easier diagnostics. They help identify failures, but they still need visual inspection, maintenance action, and records where required.

Next Step

Before ordering emergency lighting, confirm the runtime requirement, power method, voltage, mounting location, fixture spacing, head aiming, remote-head load, environment rating, and maintenance preference. Then compare emergency lights, remote emergency lights, self-testing emergency lights, combo units, wet-location emergency lights, and battery backup wall packs. For uncertain projects, send field photos and inspection notes through Request a Quote before buying.
