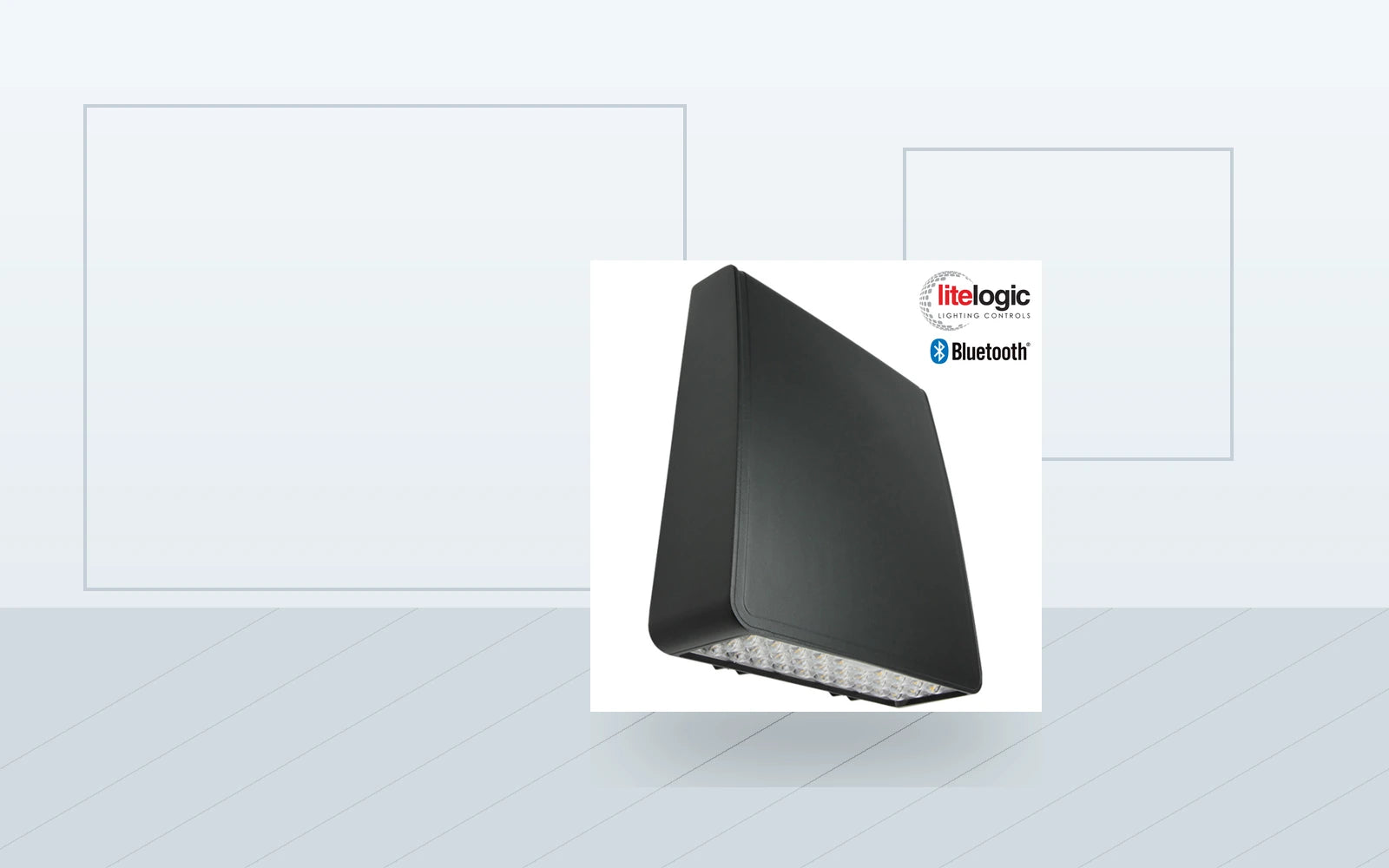

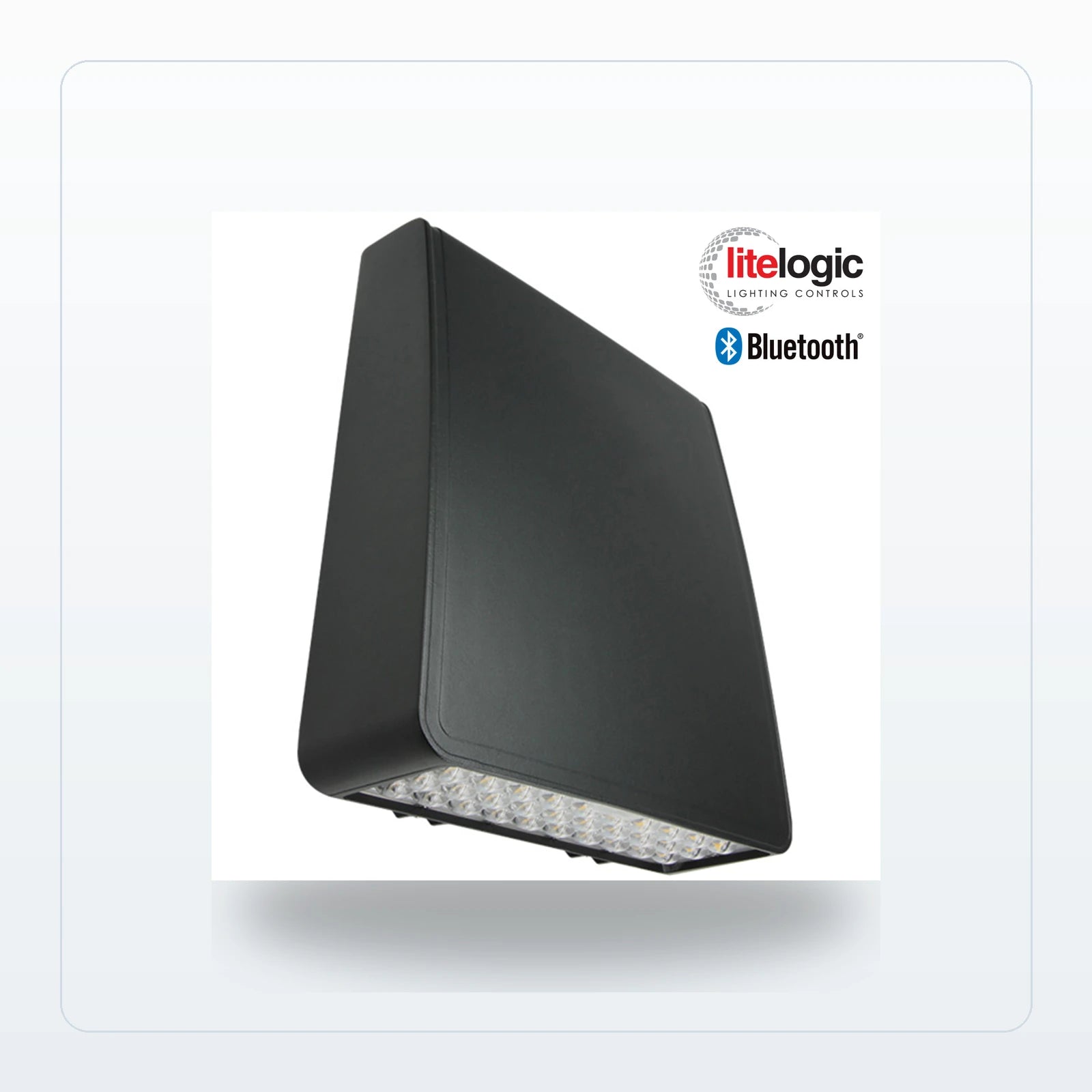

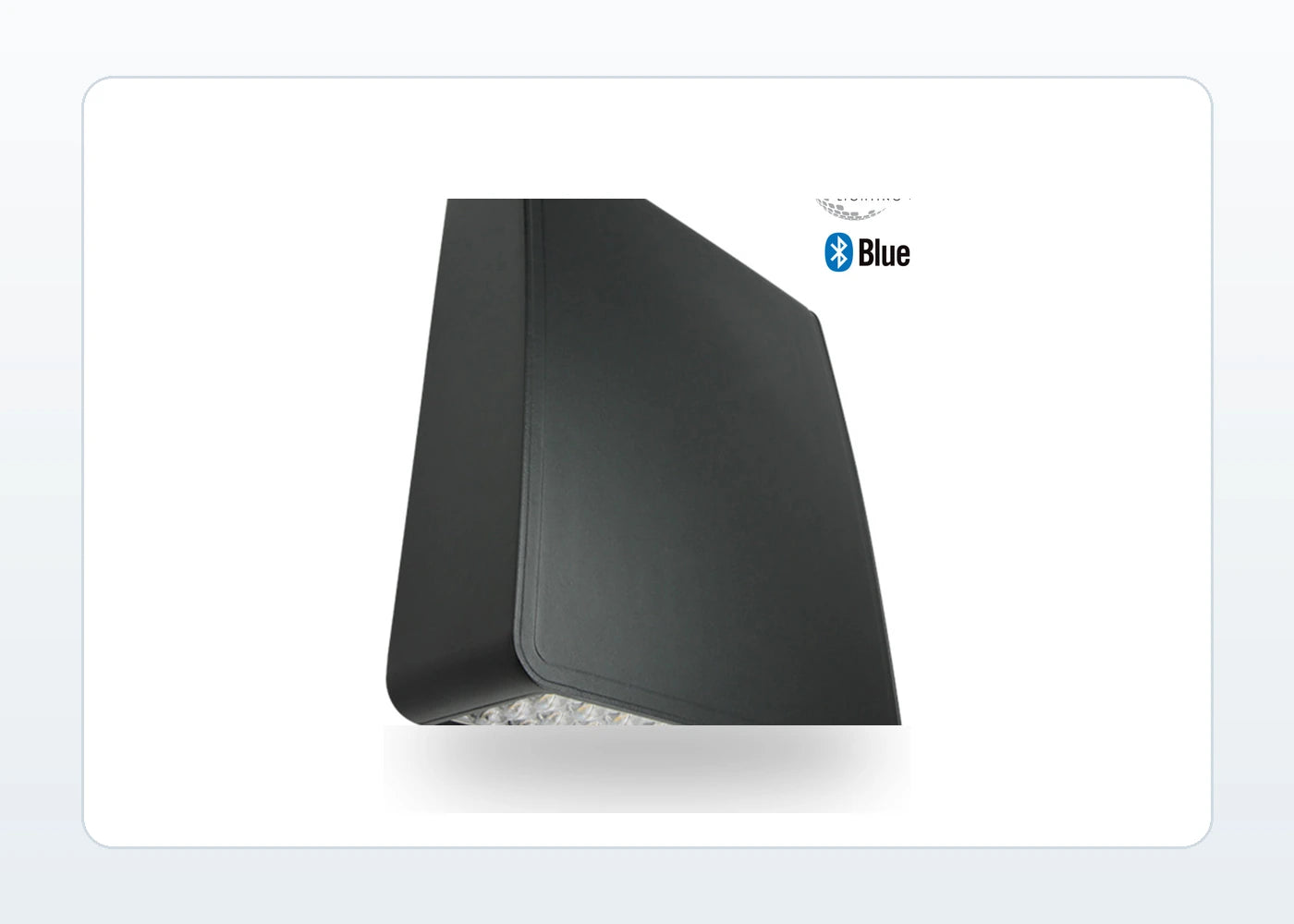

Zero-Uplight LED Wall Pack - Type III/IV, up to 3,198 lm (IP65) - Unlimited Lights Project Ready
The Zero-Uplight LED Wall Pack - Type III/IV, up to 3,198 lm (IP65) is a LED wall pack from TraceLite model family WLZ2-3-3K-BL for commercial exterior lighting. Use the spec-backed details below to confirm fit before adding it to a quote or project order. Key project details include 120/277V, 480V, 120-277VAC, 347/480VAC, and 10V.
Quick fit
- Model or SKU family: WLZ2-3-3K-BL.
- Electrical configuration includes 120/277V, 480V, 120-277VAC, and 347/480VAC.
- Mounting support includes Universal, and Wall Mount.
- Housing or construction: Polycarbonate, Steel, Aluminum, and Die-Cast Aluminum.
- Location fit: Wet Location.
- Spec-listed standards and ratings include UL Listed, cUL, DLC, cULus Listed, and DLC Listed.
- Emergency backup: Yes.
Key specifications
| Product family | LED wall pack |
|---|---|
| Brand | TraceLite |
| Model / SKU family | WLZ2-3-3K-BL |
| Voltage | 120/277V, 480V, 120-277VAC, 347/480VAC, 10V, and 120/277VAC |
| Wattage | 100-199W, 200W+, 10-29W, 30-59W, 60-99W, and 15W |
| Lumens | 1,000-1,999 lm, 10,000-19,999 lm, 500-999 lm, Under 500 lm, 1500 lumens, and 12,000 lumens |
| Color temperature | 5000K, 3000K, 3500K, and 4000K |
| Location rating | Wet Location |
| Mounting | Universal, and Wall Mount |
| Housing / construction | Polycarbonate, Steel, Aluminum, Die-Cast Aluminum, Cast Aluminum, and Stainless Steel |
| Power source | Battery Backup |
| Emergency backup | Yes |
| Controls | Photocell, Occupancy Sensor, 0-10V Dimming, Dimming, and Button Photocontrol |
| Operating temperature | -40°C to 40°C, 0°C to 40°C, and 32°F to 104°F |
| Warranty / service life | Five year warranty |
| Certifications / listings | UL Listed, cUL, DLC, cULus Listed, DLC Listed, and IP65 |
Application guidance
Use this LED wall pack for commercial exterior lighting where output, mounting, voltage, controls, and weather rating match the site plan. Confirm pole, wall, bracket, or aiming requirements before release. Compare related options in Outdoor LED Lights, LED Wall Pack Lights.
Installation and compliance notes
- Install according to the manufacturer instructions and applicable electrical code requirements.
- Confirm final approval requirements with the authority having jurisdiction before ordering for inspected work.
- Match the product voltage to the project circuit: 120/277V, 480V, 120-277VAC, 347/480VAC, and 10V.
- Confirm the installed environment matches the listed location rating: Wet Location.
- Keep the spec sheet with project submittals for listed ratings such as UL Listed, cUL, DLC, and cULus Listed.
Options and variants
- Distribution | Voltage: Type VI | 120-277VAC, and Type III | 120-277VAC
- CCT | Finish: 5000K | Black, 4000K | White, 4000K | Silver, 5000K | White, 5000K | Silver, 5000K | Bronze, 3000K | Silver, and 3000K | Bronze
- Options: Battery Backup | Cold Weather | Dual Driver | 120/277VAC PC | 120/277VAC SP | 347/480VAC SP: 120/277VAC Surge protection, Battery Backup | 120/277VAC Surge protection, and Battery Backup
- Available SKU examples: WLZ2-3-3K-BL, WLZ2-3-3K-BL-BB, WLZ2-3-3K-BL-SP, WLZ2-3-3K-BL-BB-SP, WLZ2-3-3K-BR, WLZ2-3-3K-BR-BB, WLZ2-3-3K-BR-SP, WLZ2-3-3K-BR-BB-SP and additional configured SKUs.
Documents
Product FAQ
How can this LED wall pack be mounted?
The source spec indicates Universal, and Wall Mount mounting support. Confirm the selected variant and installation instructions before release.
What voltage should I confirm before ordering?
Confirm the project circuit matches the product voltage shown in the spec: 120/277V, 480V, 120-277VAC, 347/480VAC, and 10V.
Can this be used in damp or wet locations?
Use the listed environment rating as the guide. This product references Wet Location in the available product data.
Which option should I choose?
Choose the variant that matches the required face count, color, mounting, voltage, or feature package shown in the option selector and SKU list.
What should I review before ordering?
Review the spec sheet, SKU options, mounting conditions, voltage, location rating, lead time, and any job-specific code requirements.
Use this checklist to confirm Zero-Uplight LED Wall Pack - Type III/IV, up to 3,198 lm (IP65) - Unlimited Lights Project Ready against the project before ordering. For replacement matching, keep model numbers, photos, cut sheets and quantity notes together.
| Check | What to confirm |
|---|---|
| Compliance | Listing, approval language, project documents and AHJ requirements. |
| Environment | Indoor, damp, wet-location, outdoor, hazardous or high-traffic conditions. |
| Mounting | Wall, ceiling, end mount, pole, height, aiming, face count or fixture clearance. |
| Runtime and power | Voltage, battery backup, emergency runtime, remote capacity or control needs. |
| Compatibility | SKU, lamp/driver/ballast match, dimensions, wiring and accessory requirements. |
| Downloads | Review available cut sheets, install guides and IES files in the product details or request them for quote support. |
