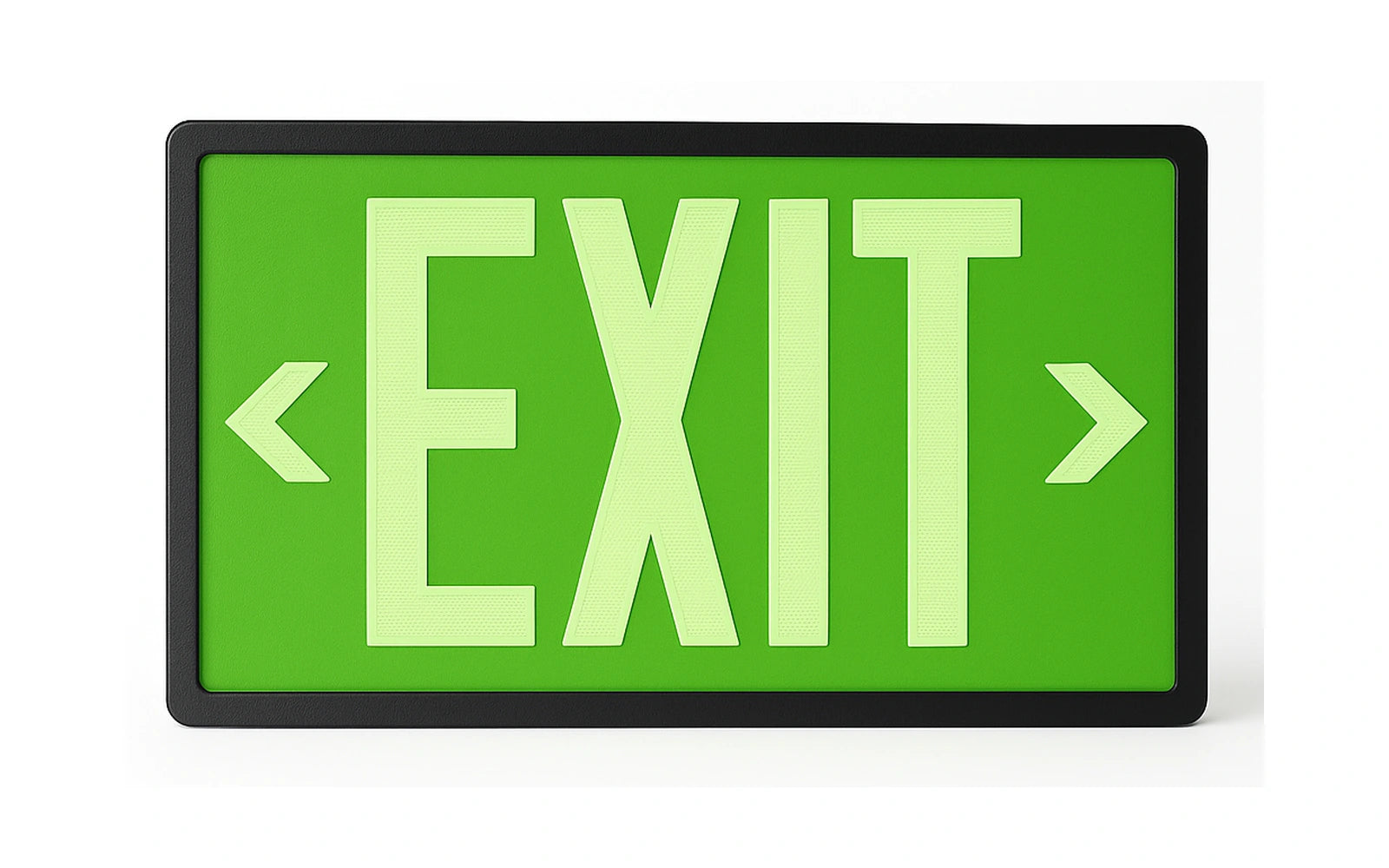

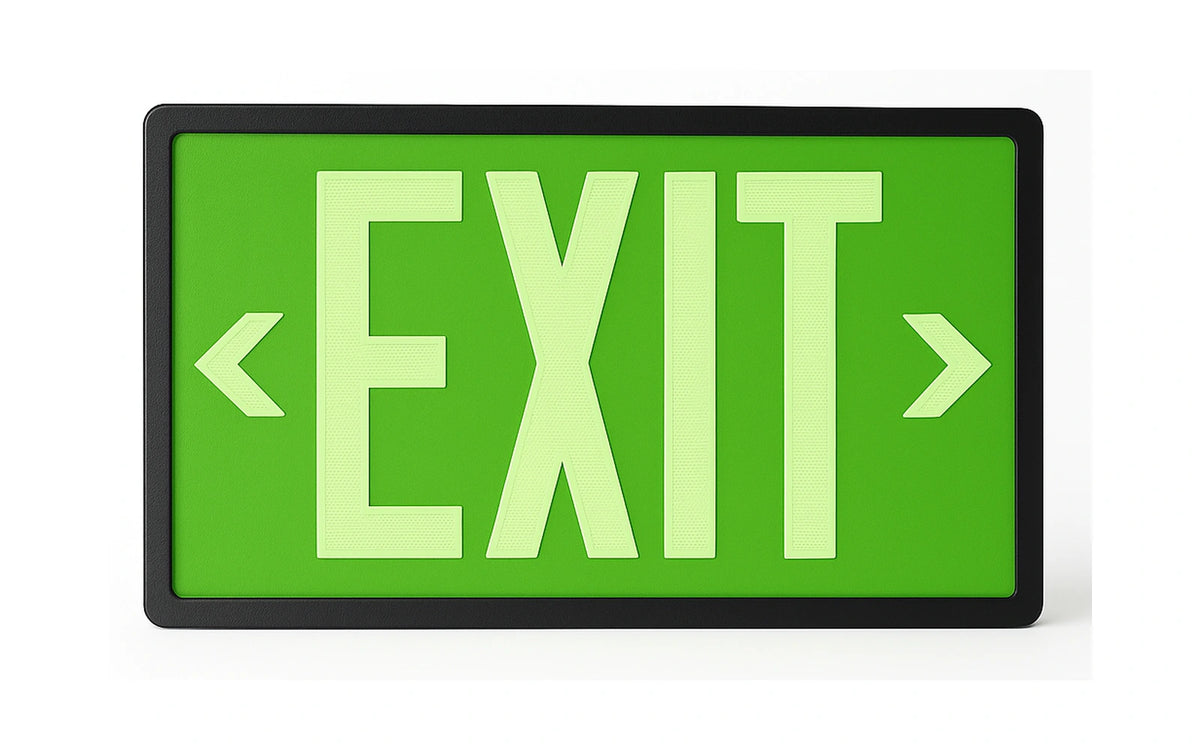

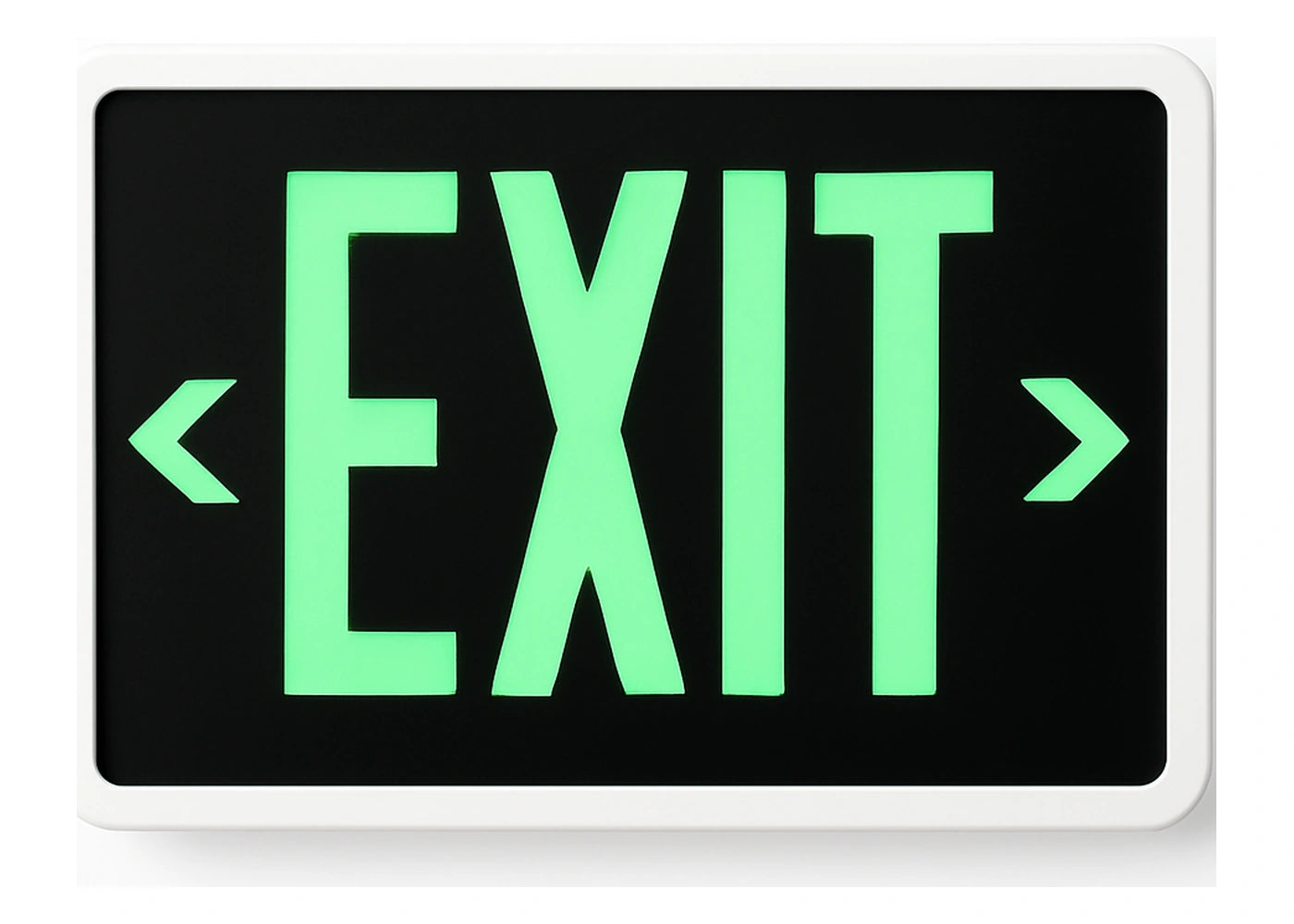

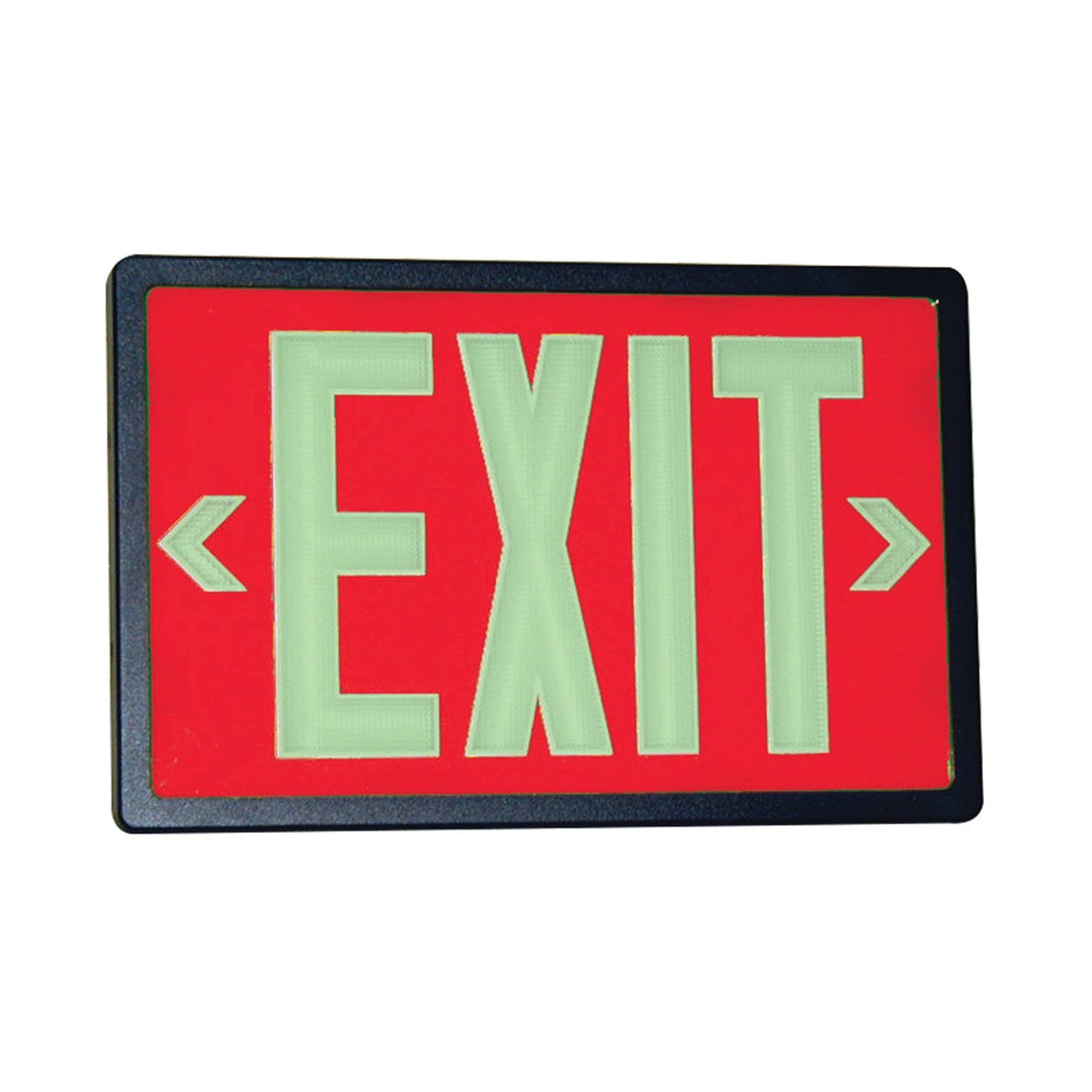

Tritium Self-Luminous Exit Sign - 10 or 20 Years, No Power Required - Unlimited Lights Project Ready
The Tritium Self-Luminous Exit Sign - 10 or 20 Years, No Power Required is an exit sign from Exitronix model family PXP-1G-10-WH for commercial egress signage. Use the spec-backed details below to confirm fit before adding it to a quote or project order. Key project details include Wall, Ceiling, Pendant, Universal, and Back Mount.
Quick fit
- Model or SKU family: PXP-1G-10-WH.
- Mounting support includes Wall, Ceiling, Pendant, and Universal.
- Housing or construction: Polycarbonate, ABS PLASTIC, Steel, and Aluminum.
- Location fit: Wet Location, Outdoor, and Hazardous Location.
- Spec-listed standards and ratings include UL 924, NFPA 101, OSHA, CEC, and CEC Compliant.
Key specifications
| Product family | exit sign |
|---|---|
| Brand | Exitronix |
| Model / SKU family | PXP-1G-10-WH |
| Location rating | Wet Location, Outdoor, and Hazardous Location |
| Mounting | Wall, Ceiling, Pendant, Universal, Back Mount, and Canopy Mount |
| Housing / construction | Polycarbonate, ABS PLASTIC, Steel, Aluminum, and Glass |
| Exit sign type | Steel Exit Sign, Self-Luminous Exit Sign, Wet Location Exit Sign, and Vandal-Resistant Exit Sign |
| Letter color | Green, Red, and Black |
| Face count | Single Face, and Double Face |
| Power source | Self-Luminous |
| Self-testing | No |
| Operating temperature | -60°C to 100°C, and -76°F to 212°F |
| Certifications / listings | UL 924, NFPA 101, OSHA, CEC, and CEC Compliant |
Application guidance
Use this exit sign where a self-luminous exit sign is needed and electrical power is not practical. Confirm replacement, disposal, and local approval requirements before purchasing. Compare related options in Exit Signs, Tritium Exit Signs.
Installation and compliance notes
- Install according to the manufacturer instructions and applicable electrical code requirements.
- Confirm final approval requirements with the authority having jurisdiction before ordering for inspected work.
- Confirm the installed environment matches the listed location rating: Wet Location, Outdoor, and Hazardous Location.
- Keep the spec sheet with project submittals for listed ratings such as UL 924, NFPA 101, OSHA, and CEC.
Options and variants
- Faces | Panel Color: Double | Green, Double | Red, Double | Black, Single | Green, Single | Red, and Single | Black
- Product Life | Finish: 20 Years | Black, 20 Years | Brushed Aluminum, 20 Years | Gray, 20 Years | Aluminum Frame, 20 Years | White, 10 Years | Black, 10 Years | White, and 10 Years | Brushed Aluminum
- Options: Institutional Frame | 12" Pendant | Security Polycarbonate Lens: 12" Pendant, Security Polycarbonate Lens, and Institutional Frame
- Available SKU examples: PXP-1G-10-WH, PXP-1G-10-WH-IF, PXP-1G-10-WH-PM, PXP-1G-10-WH-SL, PXP-1G-10-BL, PXP-1G-10-BL-IF, PXP-1G-10-BL-SL, PXP-1G-10-BA and additional configured SKUs.
Documents
Product FAQ
How can this exit sign be mounted?
The source spec indicates Wall, Ceiling, Pendant, Universal, and Back Mount mounting support. Confirm the selected variant and installation instructions before release.
Can this be used in damp or wet locations?
Use the listed environment rating as the guide. This product references Wet Location, Outdoor, and Hazardous Location in the available product data.
Which option should I choose?
Choose the variant that matches the required face count, color, mounting, voltage, or feature package shown in the option selector and SKU list.
What should I review before ordering?
Review the spec sheet, SKU options, mounting conditions, voltage, location rating, lead time, and any job-specific code requirements.
Use this checklist to confirm Tritium Self-Luminous Exit Sign - 10 or 20 Years, No Power Required - Unlimited Lights Project Ready against the project before ordering. For replacement matching, keep model numbers, photos, cut sheets and quantity notes together.
| Check | What to confirm |
|---|---|
| Compliance | Listing, approval language, project documents and AHJ requirements. |
| Environment | Indoor, damp, wet-location, outdoor, hazardous or high-traffic conditions. |
| Mounting | Wall, ceiling, end mount, pole, height, aiming, face count or fixture clearance. |
| Runtime and power | Voltage, battery backup, emergency runtime, remote capacity or control needs. |
| Compatibility | SKU, lamp/driver/ballast match, dimensions, wiring and accessory requirements. |
| Downloads | Review available cut sheets, install guides and IES files in the product details or request them for quote support. |
