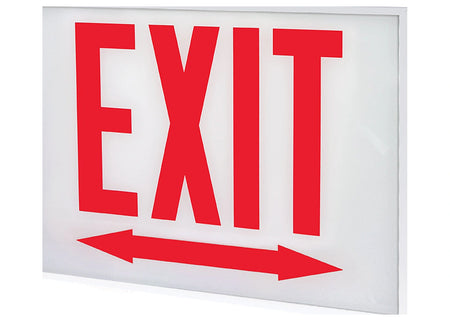

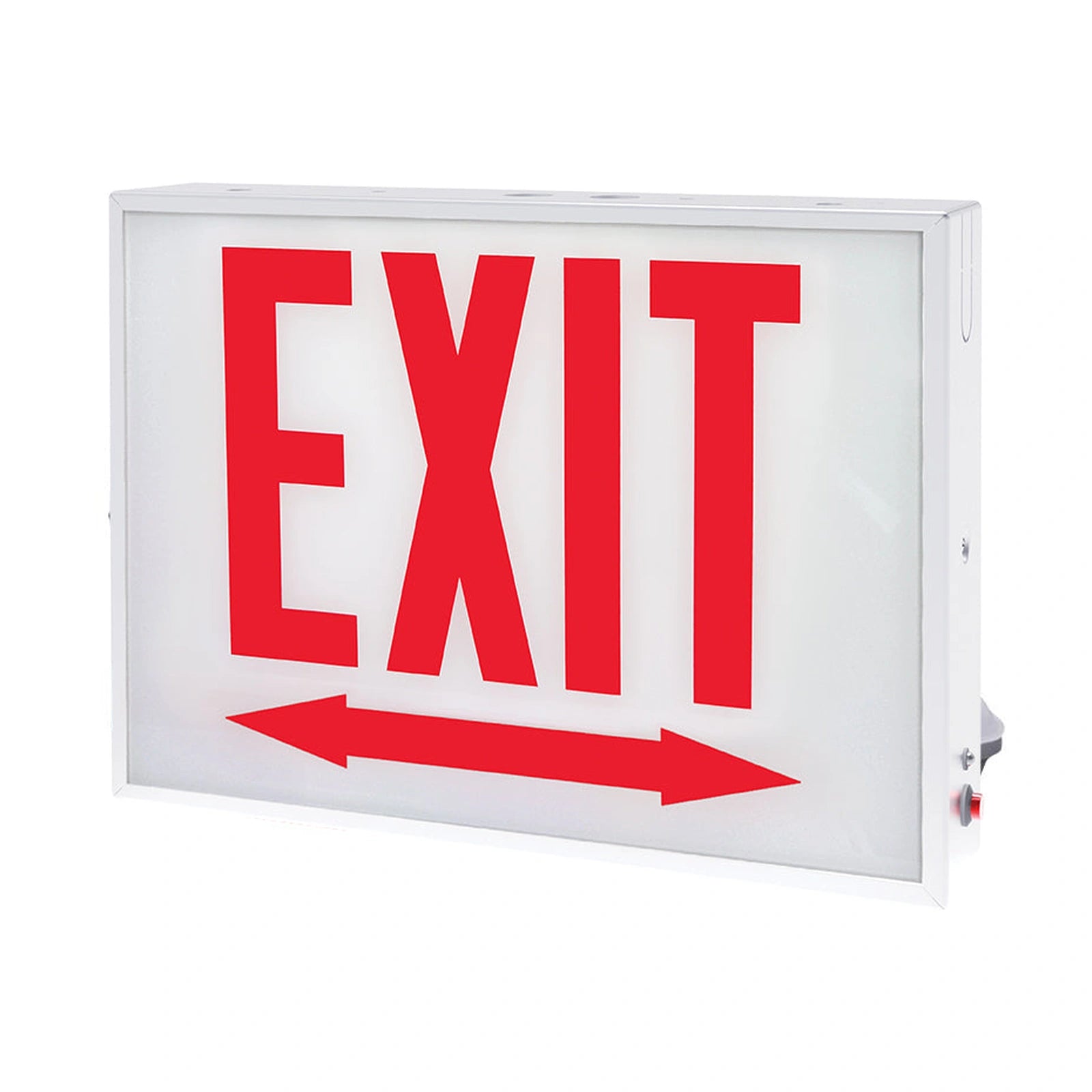

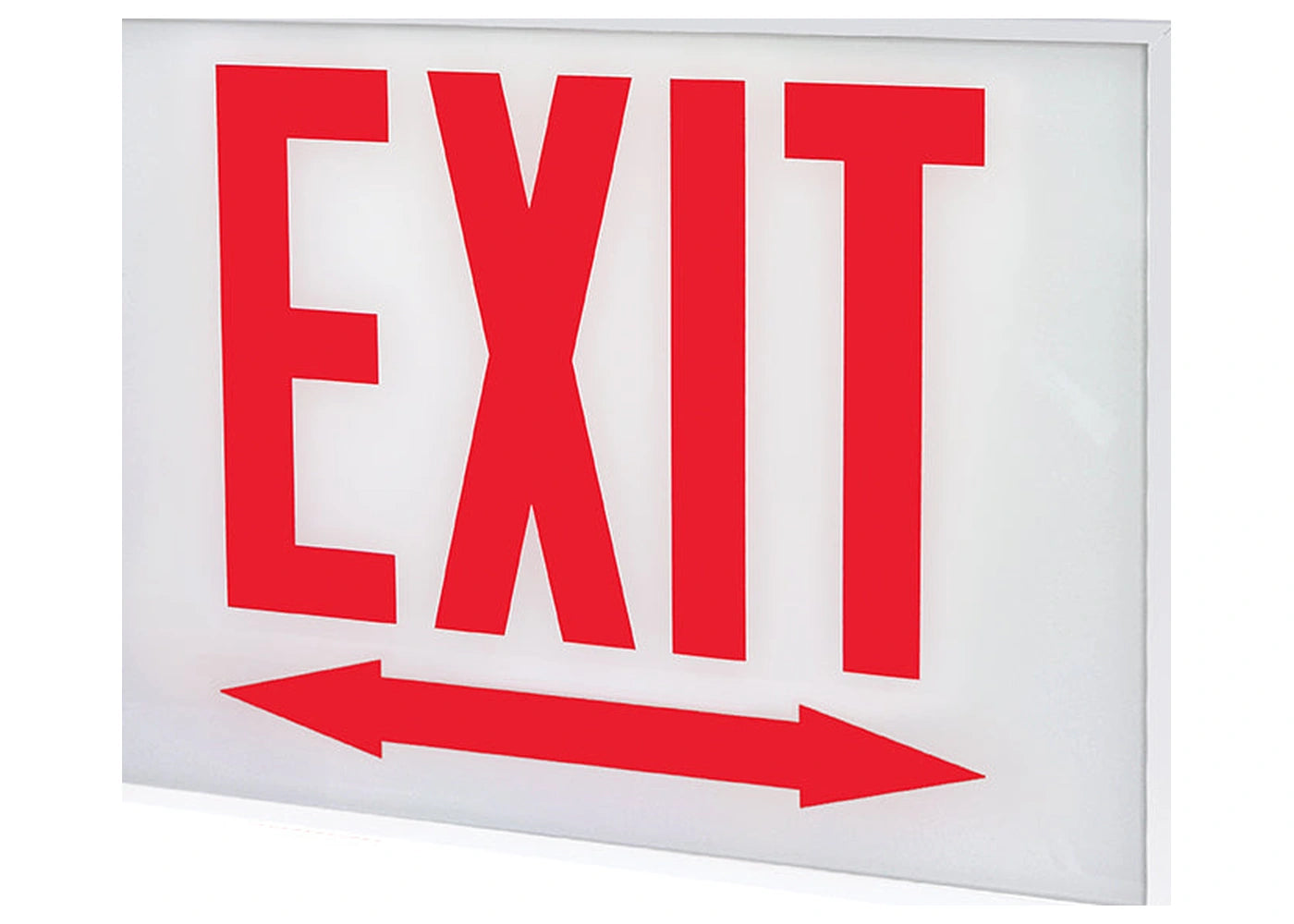

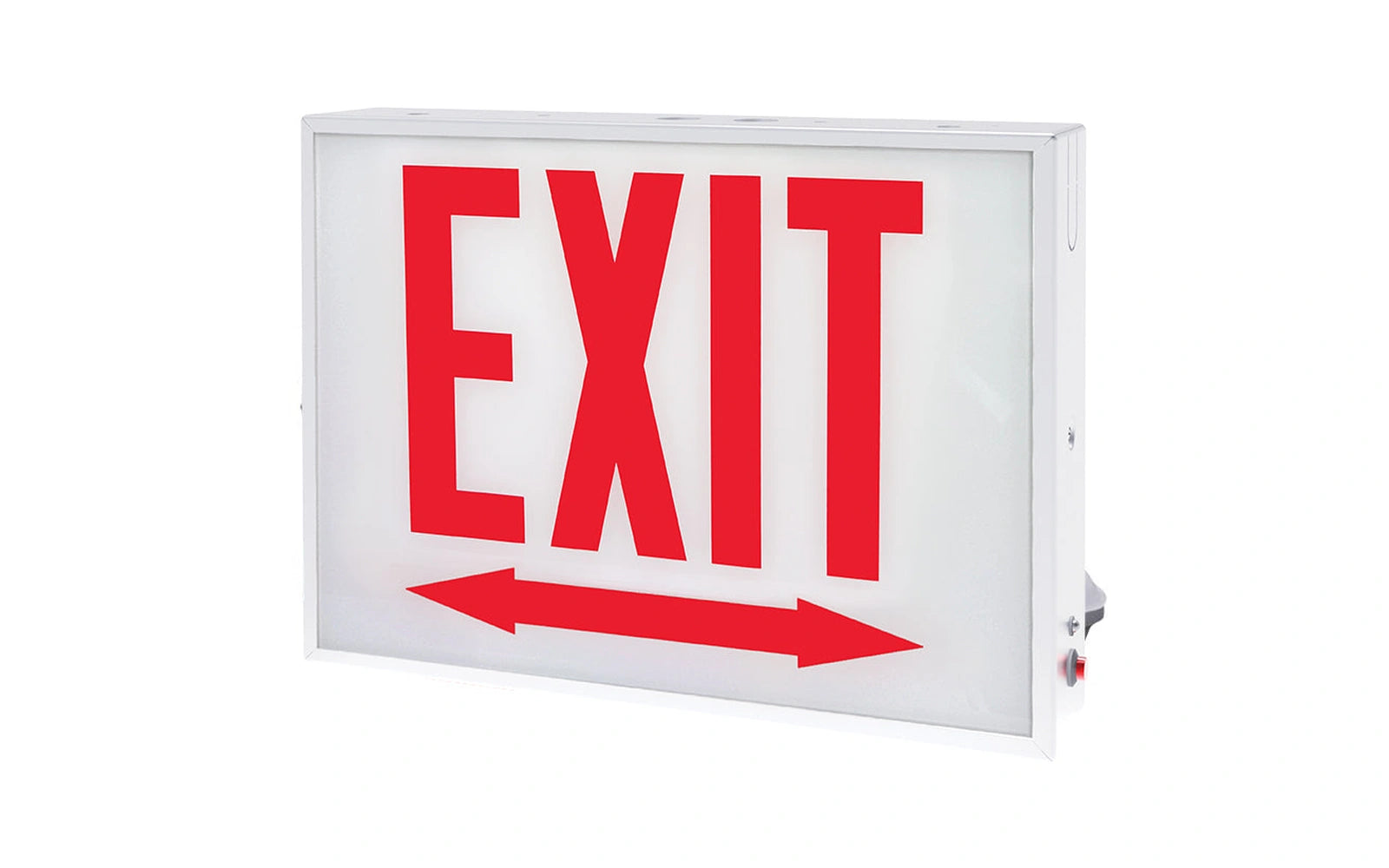

Steel LED Exit Sign with Glass Panel - Chicago Approved, Battery Backup - Unlimited Lights Project Ready
The Steel LED Exit Sign with Glass Panel - Chicago Approved, Battery Backup is an exit sign from Exitronix model family CHIX-LB for commercial egress signage. Use the spec-backed details below to confirm fit before adding it to a quote or project order. Key project details include 6V, 9.6V, 277V, 120V, and 277VAC.
Quick fit
- Model or SKU family: CHIX-LB.
- Electrical configuration includes 6V, 9.6V, 277V, and 120V.
- Mounting support includes Wall, Ceiling, Pendant, and Universal.
- Housing or construction: Steel, and Glass.
- Location fit: Damp Location, Indoor, and Outdoor.
- Spec-listed standards and ratings include UL 924, UL Listed, NFPA 101, and NEC.
- Emergency backup: Yes, and No.
Key specifications
| Product family | exit sign |
|---|---|
| Brand | Exitronix |
| Model / SKU family | CHIX-LB |
| Voltage | 6V, 9.6V, 277V, 120V, 277VAC, and 120VAC |
| Wattage | Under 10W, 3W, and 6.8W |
| Location rating | Damp Location, Indoor, and Outdoor |
| Mounting | Wall, Ceiling, Pendant, Universal, End Mount, and Canopy Mount |
| Housing / construction | Steel, and Glass |
| Exit sign type | Steel Exit Sign, High-Abuse Exit Sign, Compact Exit Sign, and Low-Profile Exit Sign |
| Letter color | Red |
| Face count | Single Face, and Double Face |
| Power source | AC Only, Battery Backup, LiFePO4 Battery, and Lithium Battery |
| Emergency backup | Yes, and No |
| Self-testing | No |
| Remote capable | Yes |
| Operating temperature | 5°C to 45°C, and 41°F to 113°F |
| Certifications / listings | UL 924, UL Listed, NFPA 101, and NEC |
Application guidance
Use this exit sign for commercial egress signage where the model, voltage, size, and listing details match the existing fixture or project requirement. Compare related options in Exit Signs, Steel Exit Signs.
Installation and compliance notes
- Install according to the manufacturer instructions and applicable electrical code requirements.
- Confirm final approval requirements with the authority having jurisdiction before ordering for inspected work.
- Match the product voltage to the project circuit: 6V, 9.6V, 277V, 120V, and 277VAC.
- Confirm the installed environment matches the listed location rating: Damp Location, Indoor, and Outdoor.
- Keep the spec sheet with project submittals for listed ratings such as UL 924, UL Listed, NFPA 101, and NEC.
Options and variants
- Power Source: With Battery, and AC Only
- Options: Remote Capacity: Remote Capacity
- Available SKU examples: CHIX-LB, CHIX-WB, CHIX-WB-RC.
Documents
Product FAQ
How can this exit sign be mounted?
The source spec indicates Wall, Ceiling, Pendant, Universal, and End Mount mounting support. Confirm the selected variant and installation instructions before release.
What voltage should I confirm before ordering?
Confirm the project circuit matches the product voltage shown in the spec: 6V, 9.6V, 277V, 120V, and 277VAC.
Can this be used in damp or wet locations?
Use the listed environment rating as the guide. This product references Damp Location, Indoor, and Outdoor in the available product data.
Which option should I choose?
Choose the variant that matches the required face count, color, mounting, voltage, or feature package shown in the option selector and SKU list.
What should I review before ordering?
Review the spec sheet, SKU options, mounting conditions, voltage, location rating, lead time, and any job-specific code requirements.
Use this checklist to confirm Steel LED Exit Sign with Glass Panel - Chicago Approved, Battery Backup - Unlimited Lights Project Ready against the project before ordering. For replacement matching, keep model numbers, photos, cut sheets and quantity notes together.
| Check | What to confirm |
|---|---|
| Compliance | Listing, approval language, project documents and AHJ requirements. |
| Environment | Indoor, damp, wet-location, outdoor, hazardous or high-traffic conditions. |
| Mounting | Wall, ceiling, end mount, pole, height, aiming, face count or fixture clearance. |
| Runtime and power | Voltage, battery backup, emergency runtime, remote capacity or control needs. |
| Compatibility | SKU, lamp/driver/ballast match, dimensions, wiring and accessory requirements. |
| Downloads | Review available cut sheets, install guides and IES files in the product details or request them for quote support. |
