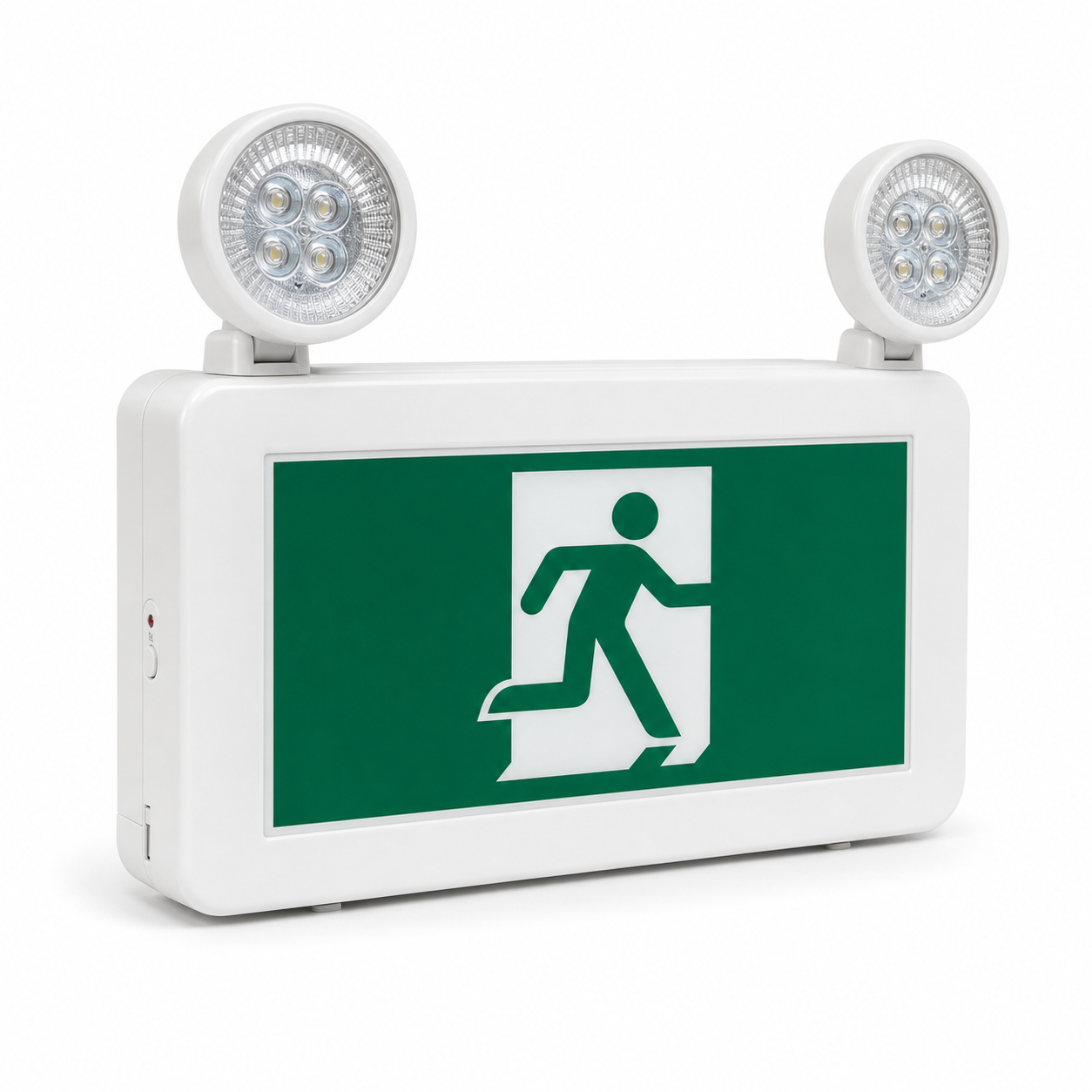

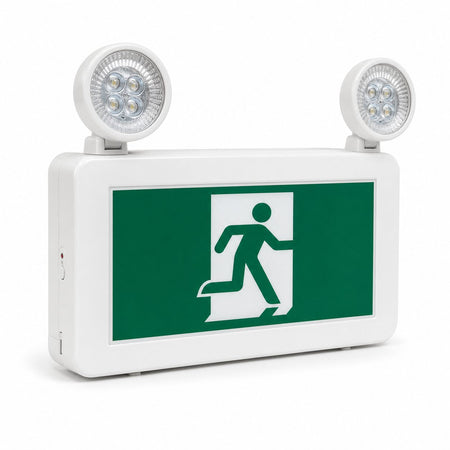

Running Man LED Exit & Emergency Combo - CSA Listed, 90 Min - Unlimited Lights Project Ready
The Running Man LED Exit & Emergency Combo - CSA Listed, 90 Min is an exit sign and emergency light combo from Exitronix model family RMPC-1W-WH for combined exit signage and emergency lighting. Use the spec-backed details below to confirm fit before adding it to a quote or project order. Key project details include 347V, 120/347VAC, Wall, Ceiling, and Universal.
Quick fit
- Model or SKU family: RMPC-1W-WH.
- Electrical configuration includes 347V, and 120/347VAC.
- Mounting support includes Wall, Ceiling, Universal, and Back Mount.
- Housing or construction: Thermoplastic, and Plastic.
- Location fit: Damp Location.
- Spec-listed standards and ratings include UL 924, CSA, NFPA 101, NEC, and CSA Listed.
- Emergency backup: Yes.
Key specifications
| Product family | exit sign and emergency light combo |
|---|---|
| Brand | Exitronix |
| Model / SKU family | RMPC-1W-WH |
| Voltage | 347V, and 120/347VAC |
| Wattage | Under 10W, and 1W |
| Lumens | Under 500 lm, and 150 lumens |
| Color temperature | 6000K |
| Location rating | Damp Location |
| Mounting | Wall, Ceiling, Universal, Back Mount, and Canopy Mount |
| Housing / construction | Thermoplastic, and Plastic |
| Exit sign type | Thermoplastic Exit Sign, Running Man Exit Sign, and LED Exit Sign |
| Letter color | Green Pictogram |
| Power source | NiCad Battery |
| Emergency light type | Thermoplastic Emergency Light, High-Output Emergency Light, and LED Emergency Light |

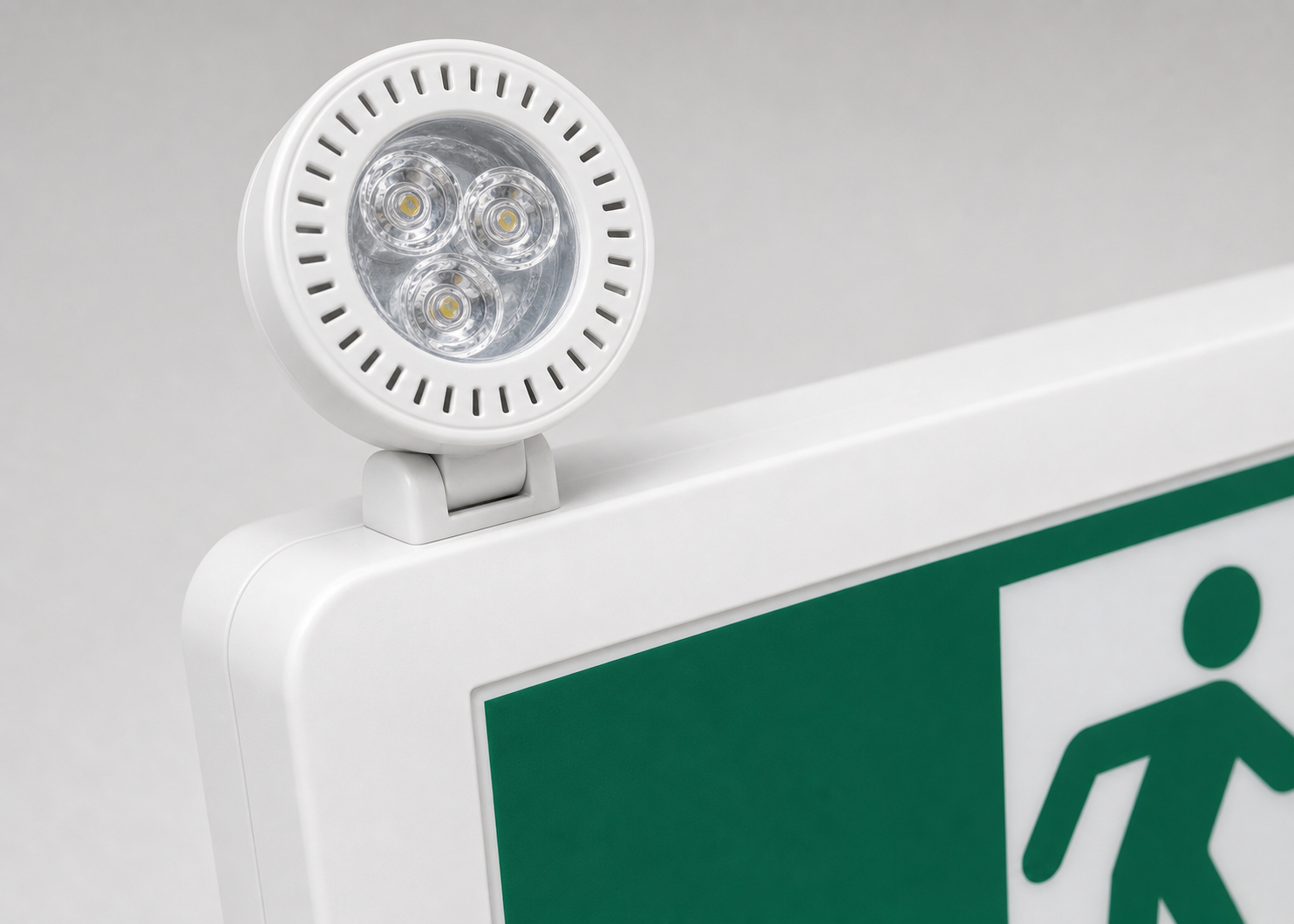

| Head count | 2 Heads |
| Emergency backup | Yes |
| Self-testing | No |
| Remote capable | No |
| Operating temperature | 10°C to 40°C, and 50°F to 104°F |
| Certifications / listings | UL 924, CSA, NFPA 101, NEC, and CSA Listed |
Application guidance

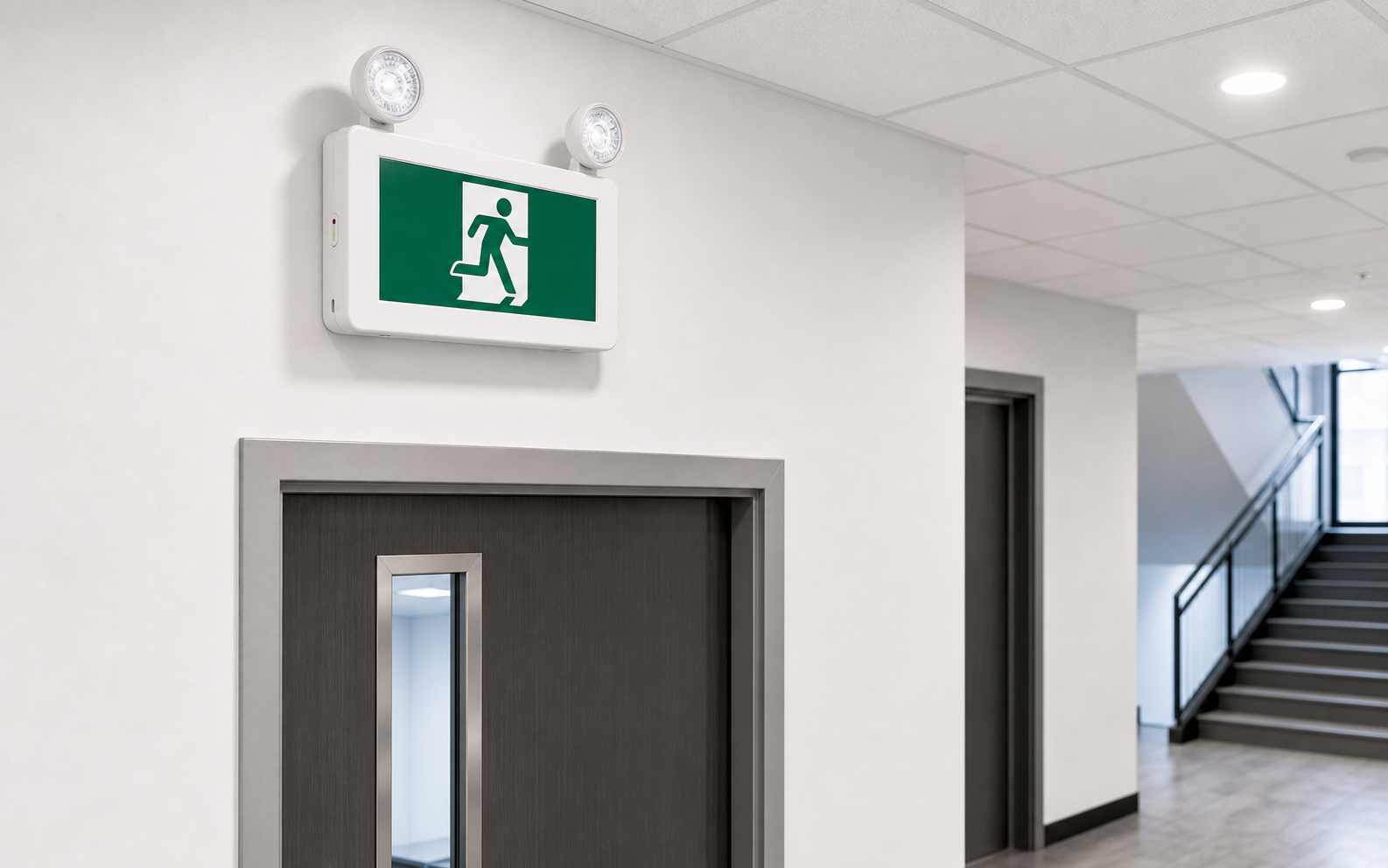

Use this exit sign and emergency light combo for combined exit signage and emergency lighting where the housing, head configuration, voltage, and location rating match the project. Confirm spacing, mounting height, and emergency egress requirements with the project plans. Compare related options in Exit Sign and Emergency Light Combos.
Installation and compliance notes
- Install according to the manufacturer instructions and applicable electrical code requirements.
- Confirm final approval requirements with the authority having jurisdiction before ordering for inspected work.
- Match the product voltage to the project circuit: 347V, and 120/347VAC.
- Confirm the installed environment matches the listed location rating: Damp Location.
- Keep the spec sheet with project submittals for listed ratings such as UL 924, CSA, NFPA 101, and NEC.
Options and variants
- Lamps | Finish: 1 Watt LED x 2 | White
- Available SKU examples: RMPC-1W-WH.
Documents
Product FAQ
How can this exit sign and emergency light combo be mounted?
The source spec indicates Wall, Ceiling, Universal, Back Mount, and Canopy Mount mounting support. Confirm the selected variant and installation instructions before release.
What voltage should I confirm before ordering?
Confirm the project circuit matches the product voltage shown in the spec: 347V, and 120/347VAC.
Can this be used in damp or wet locations?
Use the listed environment rating as the guide. This product references Damp Location in the available product data.
What should I review before ordering?
Review the spec sheet, SKU options, mounting conditions, voltage, location rating, lead time, and any job-specific code requirements.
Use this checklist to confirm Running Man LED Exit & Emergency Combo - CSA Listed, 90 Min - Unlimited Lights Project Ready against the project before ordering. For replacement matching, keep model numbers, photos, cut sheets and quantity notes together.
| Check | What to confirm |
|---|---|
| Compliance | Listing, approval language, project documents and AHJ requirements. |
| Environment | Indoor, damp, wet-location, outdoor, hazardous or high-traffic conditions. |
| Mounting | Wall, ceiling, end mount, pole, height, aiming, face count or fixture clearance. |
| Runtime and power | Voltage, battery backup, emergency runtime, remote capacity or control needs. |
| Compatibility | SKU, lamp/driver/ballast match, dimensions, wiring and accessory requirements. |
| Downloads | Review available cut sheets, install guides and IES files in the product details or request them for quote support. |
