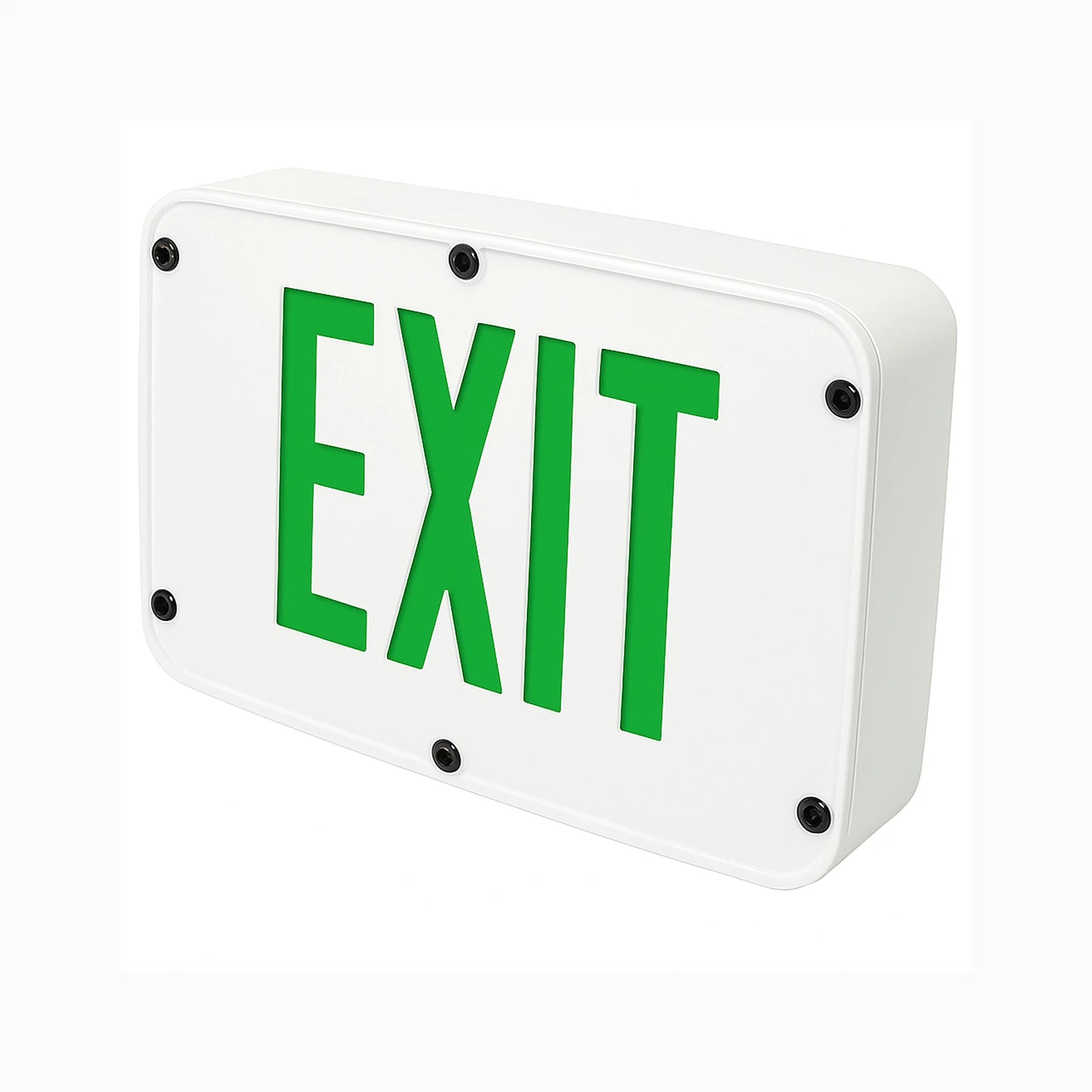

NEMA 4X LED Exit Sign - IP66, UL-EPH, Food-Zone & Wet Location Rated for Unlimited Lights

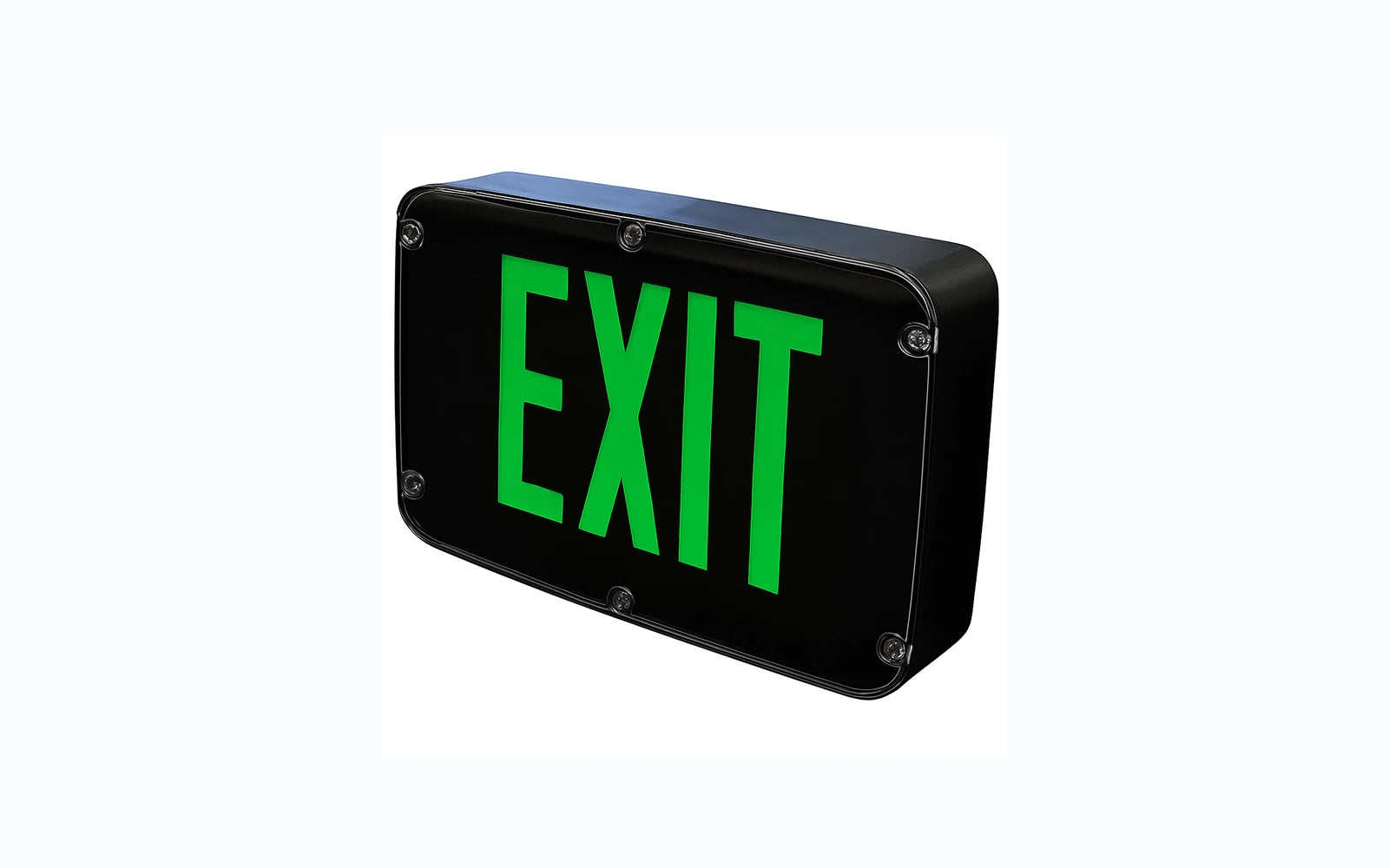

Exit Signs application image for NEMA 4X LED Exit Sign - IP66, UL-EPH, Food-Zone & Wet Location Rated

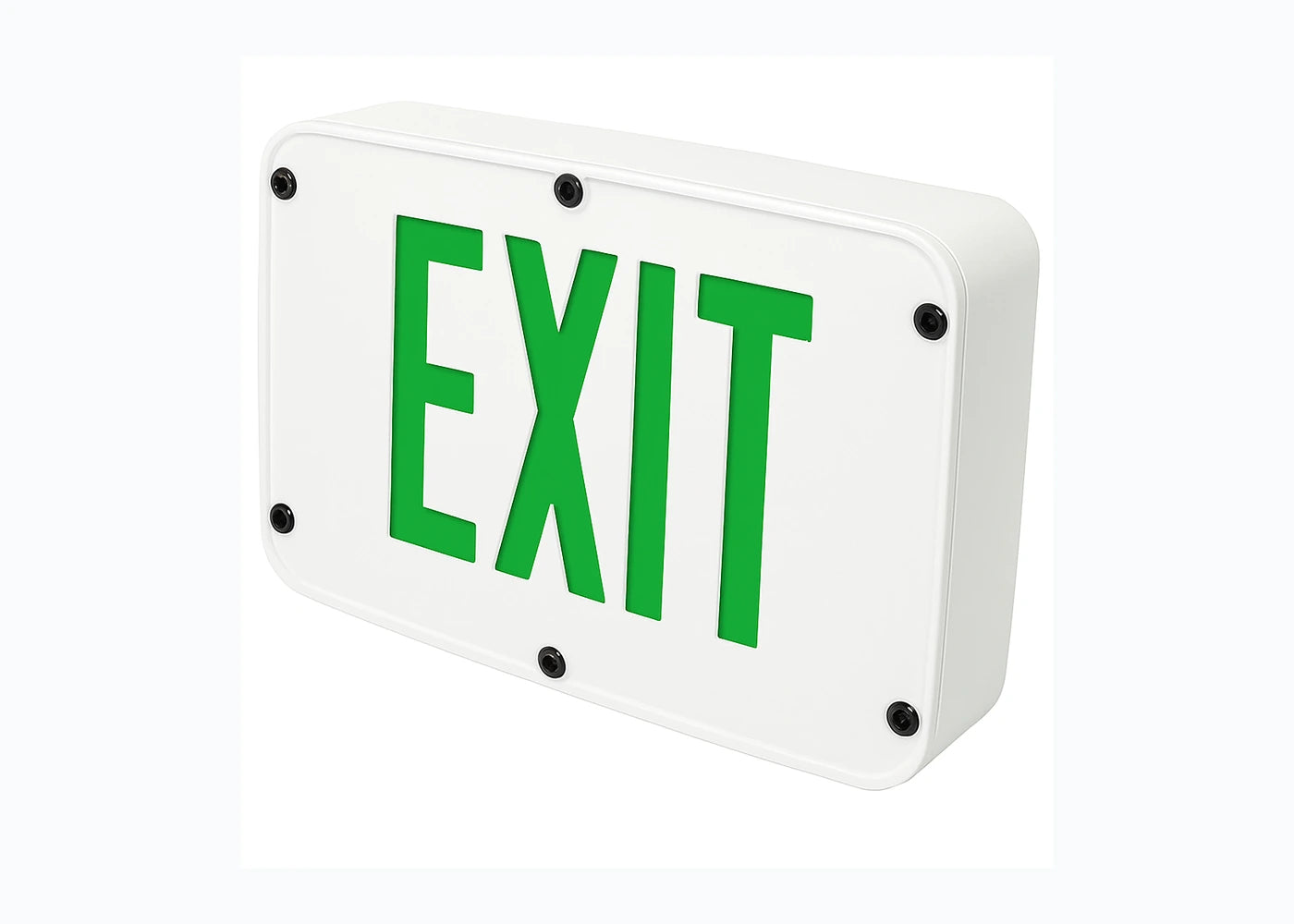

NEMA 4X LED Exit Sign - IP66, UL-EPH, Food-Zone & Wet Location Rated product detail image
NEMA 4X LED Exit Sign - IP66, UL-EPH, Food-Zone & Wet Location Rated for Unlimited Lights
Exit Signs application image for NEMA 4X LED Exit Sign - IP66, UL-EPH, Food-Zone & Wet Location Rated
NEMA 4X LED Exit Sign - IP66, UL-EPH, Food-Zone & Wet Location Rated product detail image
Exitronix

NEMA 4X LED Exit Sign - IP66, UL-EPH, Food-Zone & Wet Location Rated - Unlimited Lights Project Ready

SKU: NXFX-1-LB-G-BL
$289.81
Power Source
Finish
Voltage and Self Diagnostics and Tamper-resistant Hardware

Got questions?

Give us a call +1-888-959-1965!

Compare this product with commercial emergency lights and review the emergency lighting requirements guide before ordering.
Related guides
Exit sign code requirements
LED wall pack buying guide
Related collections
Emergency Lights
Exit Signs
LED Wall Pack Lights

The NEMA 4X LED Exit Sign - IP66, UL-EPH, Food-Zone & Wet Location Rated - Red Legend, Double Face is an exit sign from Exitronix model family NXFX-1-LB-G-BL for commercial egress signage. Use the spec-backed details below to confirm fit before adding it to a quote or project order. Key project details include 120/277V, 120/277VAC, 120VAC, 277VAC, and Ceiling.

Quick fit

  • Model or SKU family: NXFX-1-LB-G-BL.
  • Electrical configuration includes 120/277V, 120/277VAC, 120VAC, and 277VAC.
  • Mounting support includes Ceiling, Universal, End Mount, and Top Mount.
  • Housing or construction: Polycarbonate, Steel, and Stainless Steel.
  • Location fit: Wet Location, Outdoor, NEMA 4X, and IP66.
  • Spec-listed standards and ratings include UL 924, NFPA 101, NEC, OSHA, and CEC.
  • Emergency backup: Yes, and No.

Key specifications

Product family exit sign
Brand Exitronix
Model / SKU family NXFX-1-LB-G-BL
Voltage 120/277V, 120/277VAC, 120VAC, and 277VAC
Location rating Wet Location, Outdoor, NEMA 4X, and IP66
Mounting Ceiling, Universal, End Mount, Top Mount, Back Mount, and Canopy Mount
Housing / construction Polycarbonate, Steel, and Stainless Steel
Exit sign type Steel Exit Sign, NEMA 4X Exit Sign, Wet Location Exit Sign, and LED Exit Sign
Letter color Red, Green, and Black
Face count Single Face, and Double Face
Power source AC Only, and NiCad Battery
Emergency backup Yes, and No
Self-testing Yes
Remote capable Yes
Operating temperature -20°C to 50°C, and -4°F to 122°F
Certifications / listings UL 924, NFPA 101, NEC, OSHA, CEC, Title 20, IP66, and NEMA 4X

Application guidance

Use this exit sign for commercial egress signage where the model, voltage, size, and listing details match the existing fixture or project requirement. Compare related options in Exit Signs, Wet Location Exit Signs.

Installation and compliance notes

  • Install according to the manufacturer instructions and applicable electrical code requirements.
  • Confirm final approval requirements with the authority having jurisdiction before ordering for inspected work.
  • Match the product voltage to the project circuit: 120/277V, 120/277VAC, 120VAC, and 277VAC.
  • Confirm the installed environment matches the listed location rating: Wet Location, Outdoor, NEMA 4X, and IP66.
  • Keep the spec sheet with project submittals for listed ratings such as UL 924, NFPA 101, NEC, and OSHA.

Options and variants

  • Power Source: NiCad Battery, and AC Only
  • Finish: White, and Black
  • Options: Voltage | Self Diagnostics | Tamper-resistant Hardware: 2-Circuit Input 277VAC | Tamper-Resistant Hardware, 2-Circuit Input 120VAC | Tamper-Resistant Hardware, Self Diagnostics | Tamper-resistant Hardware, Self Diagnostics, 2-Circuit Input 120VAC, Tamper-Resistant Hardware, and 2-Circuit Input 277VAC
  • Available SKU examples: NXFX-1-LB-G-BL, NXFX-1-LB-G-BL-2CI1, NXFX-1-LB-G-BL-2CI7, NXFX-1-LB-G-BL-TRH, NXFX-1-LB-G-BL-2CI1-TRH, NXFX-1-LB-G-BL-2CI7-TRH, NXFX-1-LB-G-WH, NXFX-1-LB-G-WH-2CI1 and additional configured SKUs.

Documents

Download spec sheet

Product FAQ

How can this exit sign be mounted?

The source spec indicates Ceiling, Universal, End Mount, Top Mount, and Back Mount mounting support. Confirm the selected variant and installation instructions before release.

What voltage should I confirm before ordering?

Confirm the project circuit matches the product voltage shown in the spec: 120/277V, 120/277VAC, 120VAC, and 277VAC.

Can this be used in damp or wet locations?

Use the listed environment rating as the guide. This product references Wet Location, Outdoor, NEMA 4X, and IP66 in the available product data.

Which option should I choose?

Choose the variant that matches the required face count, color, mounting, voltage, or feature package shown in the option selector and SKU list.

What should I review before ordering?

Review the spec sheet, SKU options, mounting conditions, voltage, location rating, lead time, and any job-specific code requirements.

Use this checklist to confirm NEMA 4X LED Exit Sign - IP66, UL-EPH, Food-Zone & Wet Location Rated - Unlimited Lights Project Ready against the project before ordering. For replacement matching, keep model numbers, photos, cut sheets and quantity notes together.

CheckWhat to confirm
ComplianceListing, approval language, project documents and AHJ requirements.
EnvironmentIndoor, damp, wet-location, outdoor, hazardous or high-traffic conditions.
MountingWall, ceiling, end mount, pole, height, aiming, face count or fixture clearance.
Runtime and powerVoltage, battery backup, emergency runtime, remote capacity or control needs.
CompatibilitySKU, lamp/driver/ballast match, dimensions, wiring and accessory requirements.
DownloadsReview available cut sheets, install guides and IES files in the product details or request them for quote support.

Request project quote support
