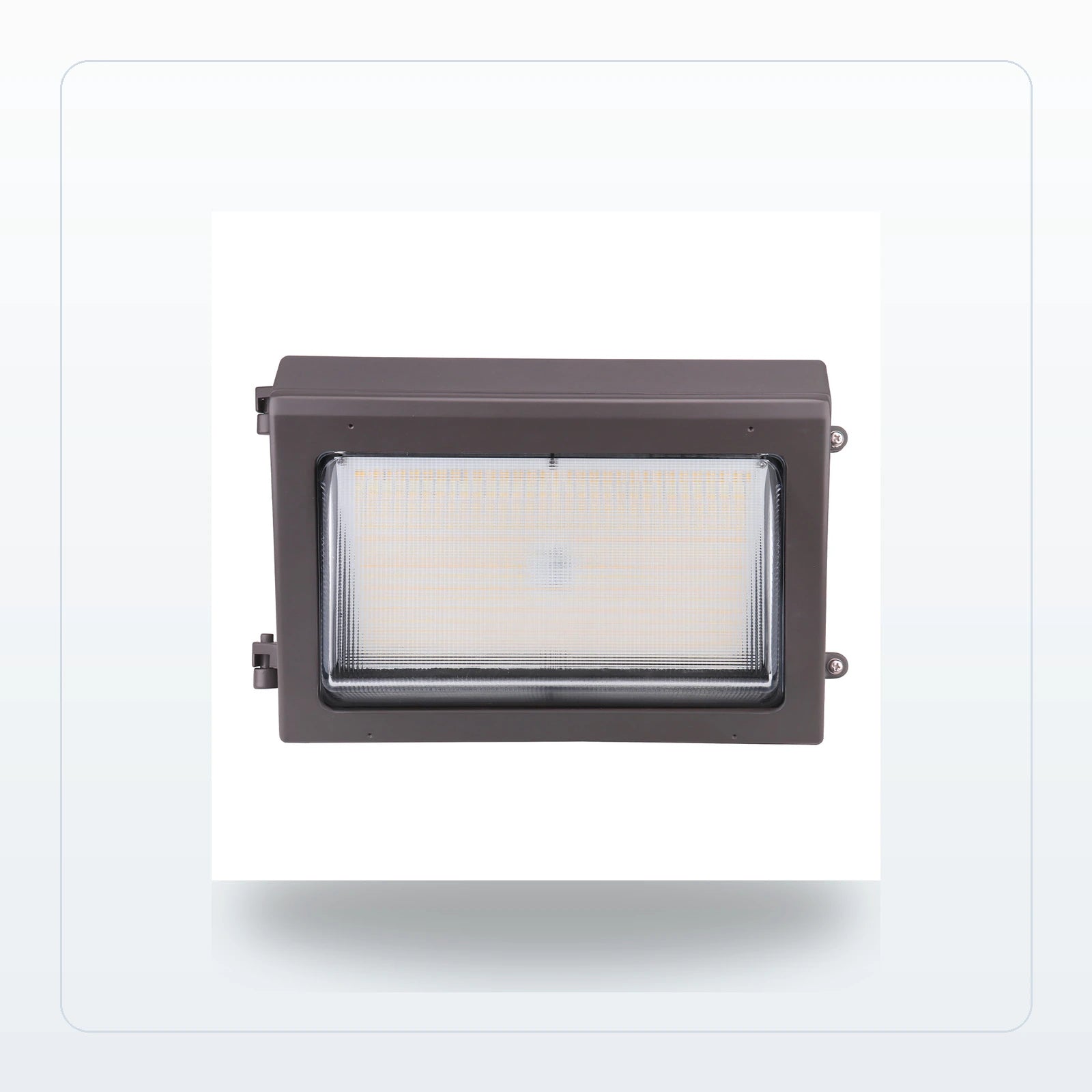

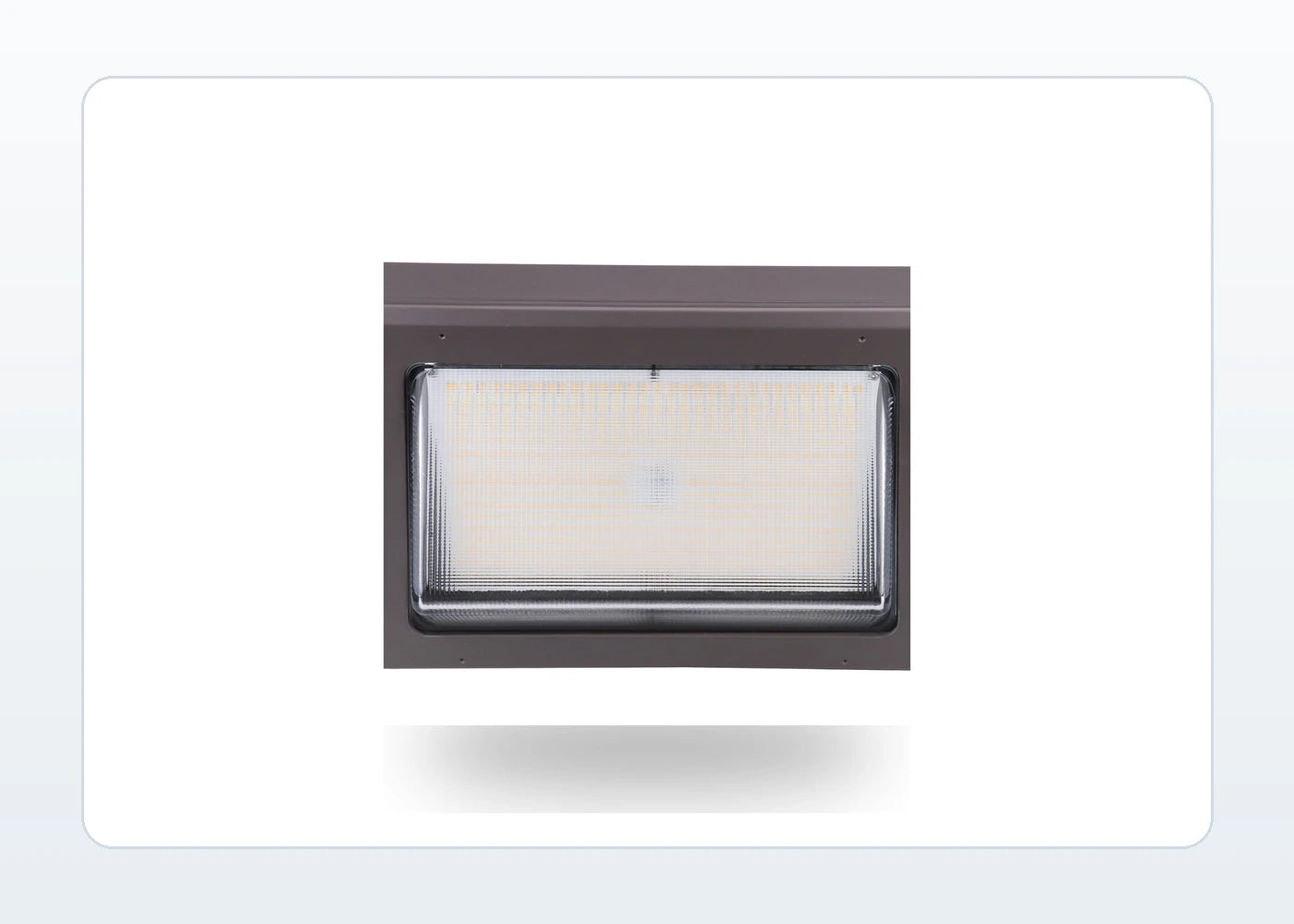

LED Wall Pack Glass Refractor - Up to 120W, Selectable Wattage & CCT (DLC Premium)
The LED Wall Pack Glass Refractor - Up to 120W, Selectable Wattage & CCT (DLC Premium) is a LED wall pack from TraceLite model family RWE-S-60-VS-CP-BR for commercial exterior lighting. Use the spec-backed details below to confirm fit before adding it to a quote or project order. Key project details include 120/277V, 120-277VAC, 10V, 12V, and 2VDC.
Quick fit
- Model or SKU family: RWE-S-60-VS-CP-BR.
- Electrical configuration includes 120/277V, 120-277VAC, 10V, and 12V.
- Mounting support includes Surface, Wall, and Ceiling.
- Housing or construction: Aluminum, Die-Cast Aluminum, Glass, and Cast Aluminum.
- Location fit: Wet Location, and IP65.
- Spec-listed standards and ratings include UL, cUL, NEC, DLC, and IP65.
- Emergency backup: Yes.
Key specifications
| Product family | LED wall pack |
|---|---|
| Brand | TraceLite |
| Model / SKU family | RWE-S-60-VS-CP-BR |
| Voltage | 120/277V, 120-277VAC, 10V, 12V, and 2VDC |
| Wattage | 10-29W, 30-59W, 60-99W, 100-199W, Under 10W, and 29W |
| Lumens | Under 500 lm, 10,000-19,999 lm, 500-999 lm, 8,016 lumens, 16,218 lumens, and 8,100 lumens |
| Color temperature | 3000K, 5000K, Selectable CCT, and 4000K |
| Location rating | Wet Location, and IP65 |
| Mounting | Surface, Wall, and Ceiling |
| Housing / construction | Aluminum, Die-Cast Aluminum, Glass, and Cast Aluminum |
| Power source | Battery Backup |
| Emergency backup | Yes |
| Remote capable | Yes |
| Controls | Photocell, Occupancy Sensor, 0-10V Dimming, Dimming, and CCT Selectable |
| Operating temperature | -20°C to 40°C, Operating Temperature -30°C, and 0°C to 40°C |
| Warranty / service life | Five year warranty |
| Certifications / listings | UL, cUL, NEC, DLC, IP65, cULus Listed, and DLC Listed |
Application guidance

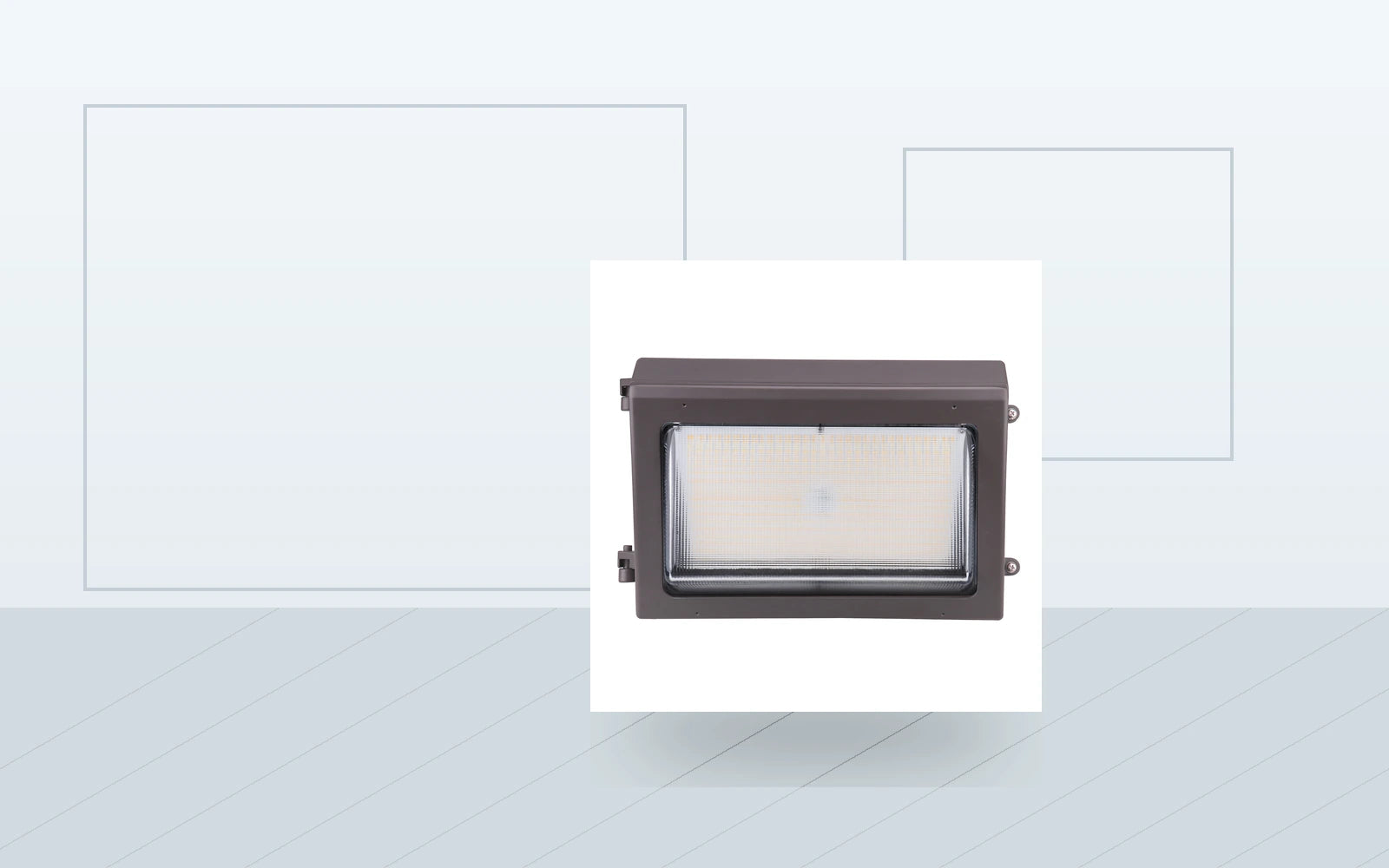

Use this LED wall pack for commercial exterior lighting where output, mounting, voltage, controls, and weather rating match the site plan. Confirm pole, wall, bracket, or aiming requirements before release. Compare related options in Outdoor LED Lights, LED Wall Pack Lights.
Installation and compliance notes
- Install according to the manufacturer instructions and applicable electrical code requirements.
- Confirm final approval requirements with the authority having jurisdiction before ordering for inspected work.
- Match the product voltage to the project circuit: 120/277V, 120-277VAC, 10V, 12V, and 2VDC.
- Confirm the installed environment matches the listed location rating: Wet Location, and IP65.
- Keep the spec sheet with project submittals for listed ratings such as UL, cUL, NEC, and DLC.
Options and variants
- Wattage: Medium, 120W (Switchable; 60W-100W-120W), Medium, 60W (Switchable; 29W-40W-60W), and Small, 60W (Switchable; 29W-40W-60W)
- Available SKU examples: RWE-S-60-VS-CP-BR, RWE-M-60-VS-CP-BR, RWE-M-120-VS-CP-BR.
Documents
Product FAQ
How can this LED wall pack be mounted?
The source spec indicates Surface, Wall, and Ceiling mounting support. Confirm the selected variant and installation instructions before release.
What voltage should I confirm before ordering?
Confirm the project circuit matches the product voltage shown in the spec: 120/277V, 120-277VAC, 10V, 12V, and 2VDC.
Can this be used in damp or wet locations?
Use the listed environment rating as the guide. This product references Wet Location, and IP65 in the available product data.
Which option should I choose?
Choose the variant that matches the required face count, color, mounting, voltage, or feature package shown in the option selector and SKU list.
What should I review before ordering?
Review the spec sheet, SKU options, mounting conditions, voltage, location rating, lead time, and any job-specific code requirements.
Use this checklist to confirm LED Wall Pack Glass Refractor - Up to 120W, Selectable Wattage & CCT (DLC Premium) against the project before ordering. For replacement matching, keep model numbers, photos, cut sheets and quantity notes together.
| Check | What to confirm |
|---|---|
| Compliance | Listing, approval language, project documents and AHJ requirements. |
| Environment | Indoor, damp, wet-location, outdoor, hazardous or high-traffic conditions. |
| Mounting | Wall, ceiling, end mount, pole, height, aiming, face count or fixture clearance. |
| Runtime and power | Voltage, battery backup, emergency runtime, remote capacity or control needs. |
| Compatibility | SKU, lamp/driver/ballast match, dimensions, wiring and accessory requirements. |
| Downloads | Review available cut sheets, install guides and IES files in the product details or request them for quote support. |
