Edge-Lit Exit Sign - Stair, Aluminum, 8 Inch Red Letters
Edge-Lit Aluminum EXIT / STAIR Sign — Chicago Approved, 8 in Red Letters, 120-min Ni-Cd, 120/277 VAC, Damp Location — Features & Specs

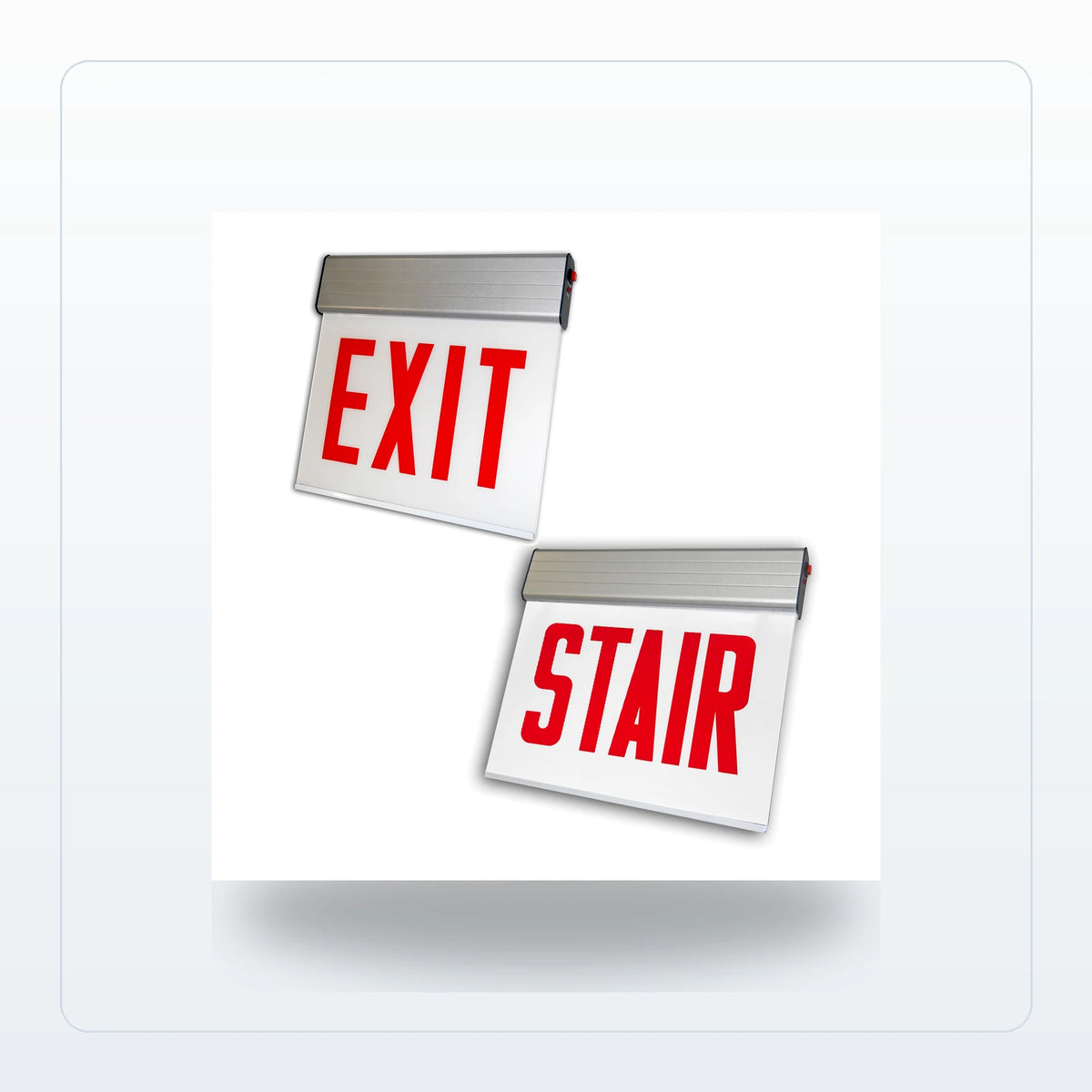

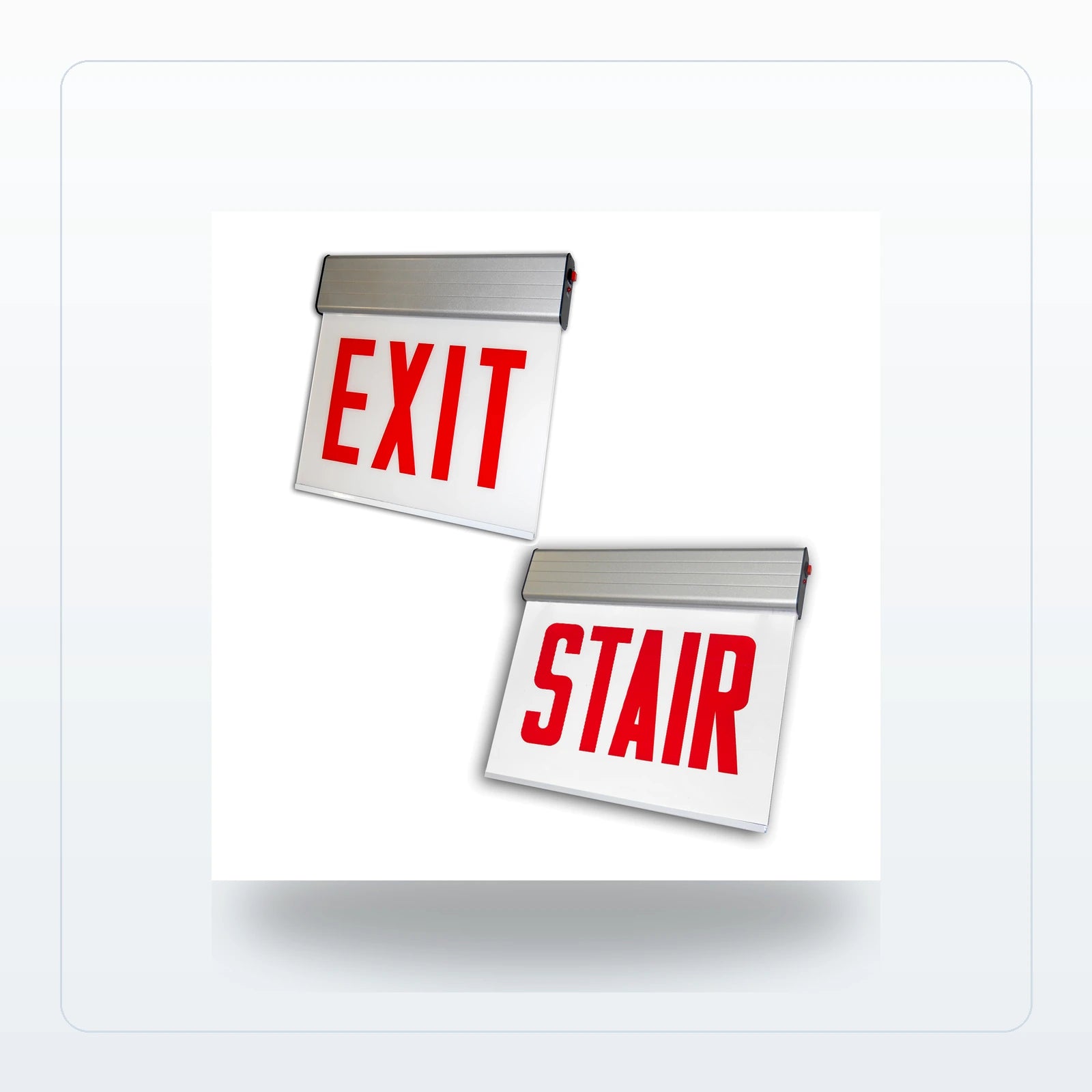

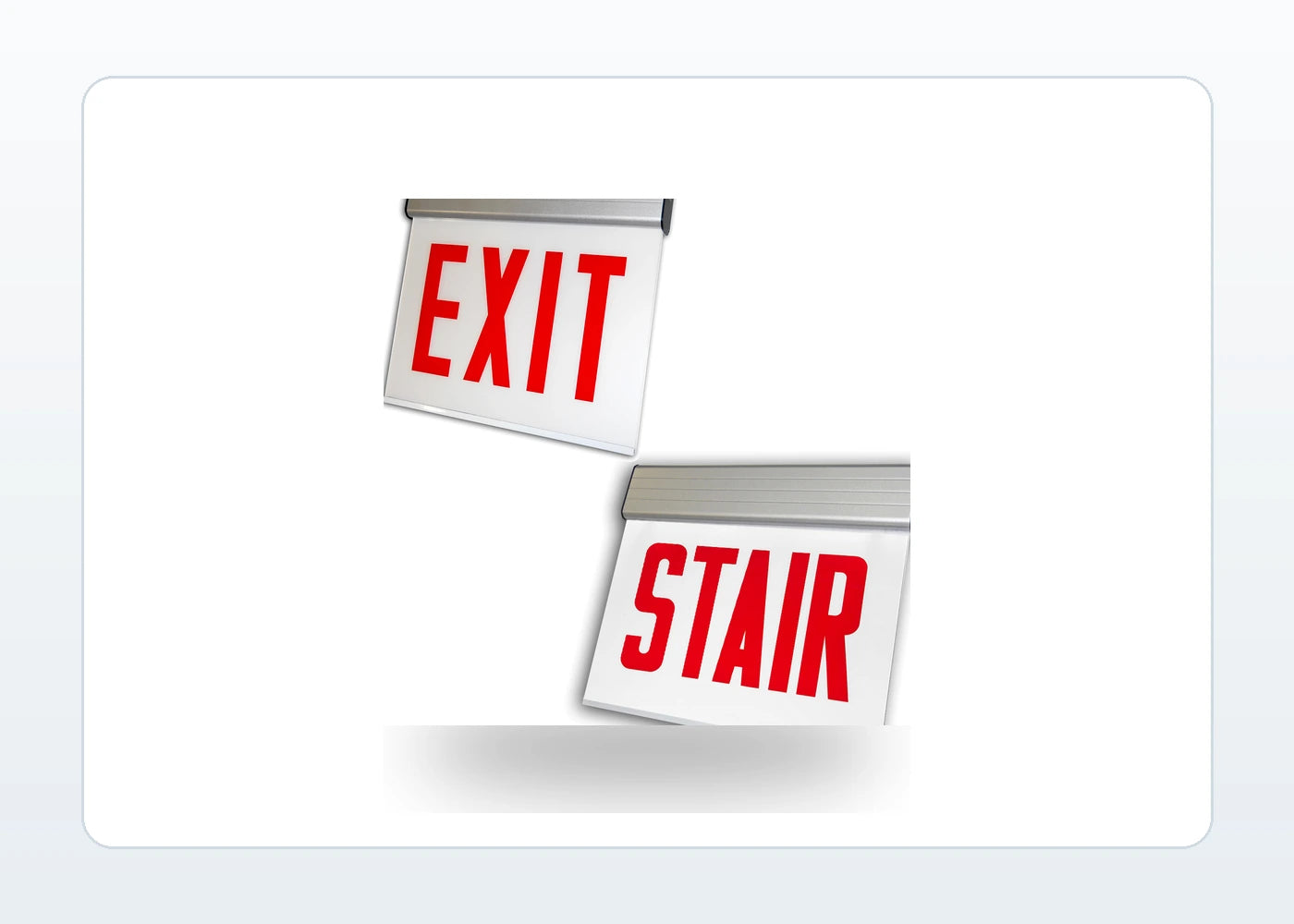

This Chicago-approved edge-lit EXIT / STAIR sign pairs a slim extruded-aluminum housing with an acrylic, silk-screened legend panel for crisp visibility. Long-life LEDs illuminate the edge-lit panel while a 4.8 V Ni-Cd battery provides up to 120 minutes of UL 924-compliant egress operation. The universal canopy supports top, end, or back mounting on a standard J-box—ideal for Chicago stairwells and corridors that require 8 in red letters and high contrast. Explore our Edge-Lit Exit Signs or compare jurisdictional models in Chicago-Approved Exit Signs.
Key Features
- City of Chicago Approved; UL 924 listed for emergency egress signage.
- 8 in red EXIT or STAIR legend; uniform LED edge-lighting across the acrylic panel.
- Field-selectable single- or double-face configuration; chevrons supplied for left/right/double arrows.
- 120/277 VAC dual-voltage input with bi-color status LED and push-to-test.
- 4.8 V Ni-Cd battery with up to 120-minute emergency runtime; solid-state transfer & two-rate charger (~24 h recharge).
- Universal canopy for top, end, or back mount; standard J-box pattern.
- Extruded aluminum body; natural or white powder-coat finish. Damp-location rated (0–50 °C).
- 5-year warranty on electronics/housing; 5-year prorated Ni-Cd battery.
Applications & Code Notes (Chicago)
Use this model for stair and corridor signage where Chicago approval and 8 in letter height are required. The edge-lit panel creates an architectural profile that blends well with modern interiors, while the universal canopy simplifies layout changes (e.g., switching from wall back-mount to end-mount). For plan-review guidance and submittal language, reference our Chicago Compliance Guide. For additional variants (recessed frames, thermoplastic bodies, ultra-clear panels), browse the edge-lit signs collection.
Related Chicago Guides
Spec Sheet
Download CAELXTE Edge-Lit Exit Sign Spec Sheet (PDF)
Illumination
- Energy-efficient white LEDs transmit through a silk-screened acrylic panel for uniform edge-lit visibility.
- 8 in red EXIT or STAIR legend; single or double face field-selectable; field-applied chevrons (left/right/double).
Electrical
- 120/277 VAC dual-voltage input with bi-color status LED and push-to-test button.
- 4.8 V Ni-Cd battery provides up to 120 minutes of emergency runtime; solid-state transfer; two-rate charger (~24 h full recharge).
- Input load (EM): 4.3 W / 0.04 A @ 120 V • 4.7 W / 0.02 A @ 277 V.
Mounting
- Universal canopy for top, end, or back mounting to standard J-box patterns.
- Set arrow chevrons during install to match the approved egress direction (left/right/double).
Housing / Panel
- Extruded aluminum housing with natural or white powder-coat finish.
- UV-stabilized, silk-screened acrylic legend panel with uniform edge-lighting.
Options
- Legends: EXIT or STAIR.
- Faces: single or double (field-selectable).
- Arrows: none, left, right, or double.
Warranty / Listings
- 5-year warranty on electronics and housing; 5-year prorated Ni-Cd battery.
- UL 924 listed for damp locations (0–50 °C / 32–122 °F).
- Complies with City of Chicago requirements and meets NFPA 101, NEC, and OSHA. CEC Title 20 certified.
Dimensions
- 13 in W × 6 in H × 4½ in D (overall height with canopy approx. 13½ in).
Installation Tips
- Confirm arrow direction during rough-in; apply chevrons before final inspection.
- For double-face, verify sightlines from both approaches in the corridor/stairwell.
- Record initial foot-candle readings and a 120-minute discharge test for the close-out package.
Compare With Other Edge-Lit Exit Signs
| Model (H1) | Legend / Letters | Faces | Mounting | Approvals | Best For |
|---|---|---|---|---|---|
| This model — Edge-Lit Exit Sign – Stair, Aluminum, 8" Red | STAIR or EXIT · 8 in red | Single / Double | Top / End / Back (canopy) | Chicago · UL 924 · Damp | Chicago stairwells & corridors |
| Edge-lit Exit Sign - Thermoplastic - Slim Profile | EXIT · red/green (varies) | Single / Double | Surface canopy | UL 924 · Damp | Budget architectural look |
| Low-Profile Edge-Lit LED Exit Sign | EXIT · red | Single | Surface canopy | UL 924 · Damp | Slim aesthetic corridors |
| Recessed Edge-Lit Aluminum Exit Sign | EXIT · red | Single | Recessed frame | UL 924 · Damp | Flush ceiling / wall niches |
| Edge-Lit Recessed Exit Sign – Stair, 8" Red Letters | STAIR · 8 in red | Single | Recessed frame | UL 924 · Damp | Recessed Chicago stair runs |
| Edge-Lit Exit Sign – Recessed, NYC 8" Red Letters | EXIT · 8 in red | Single | Recessed frame | NYC · UL 924 · Damp | New York City corridors |
Frequently Asked Questions
Is this sign approved for use in Chicago?Yes. The Chicago-approved edge-lit EXIT / STAIR sign is UL 924 listed, damp-rated, and designed to meet City of Chicago requirements for 8 in red letters on stair and corridor signs.
What does “edge-lit” mean?LEDs inject light into an acrylic panel; the silk-screened legend scatters light for a thin, uniform appearance with minimal glare—ideal for architectural spaces.
Does it support both EXIT and STAIR legends?Yes. Order with EXIT or STAIR. The unit is field-selectable for single or double face, and includes arrow chevrons for left/right/double directions.
How long does the battery last in an outage?The maintenance-free Ni-Cd battery delivers up to 120 minutes of emergency operation and typically recharges in about 24 hours.
- Chicago stair exit sign 8 in
- edge-lit aluminum EXIT / STAIR
- UL 924 damp-location exit sign
- 120-minute Ni-Cd battery backup
- top / end / back mount canopy
- 8-inch red letters stairwell sign
