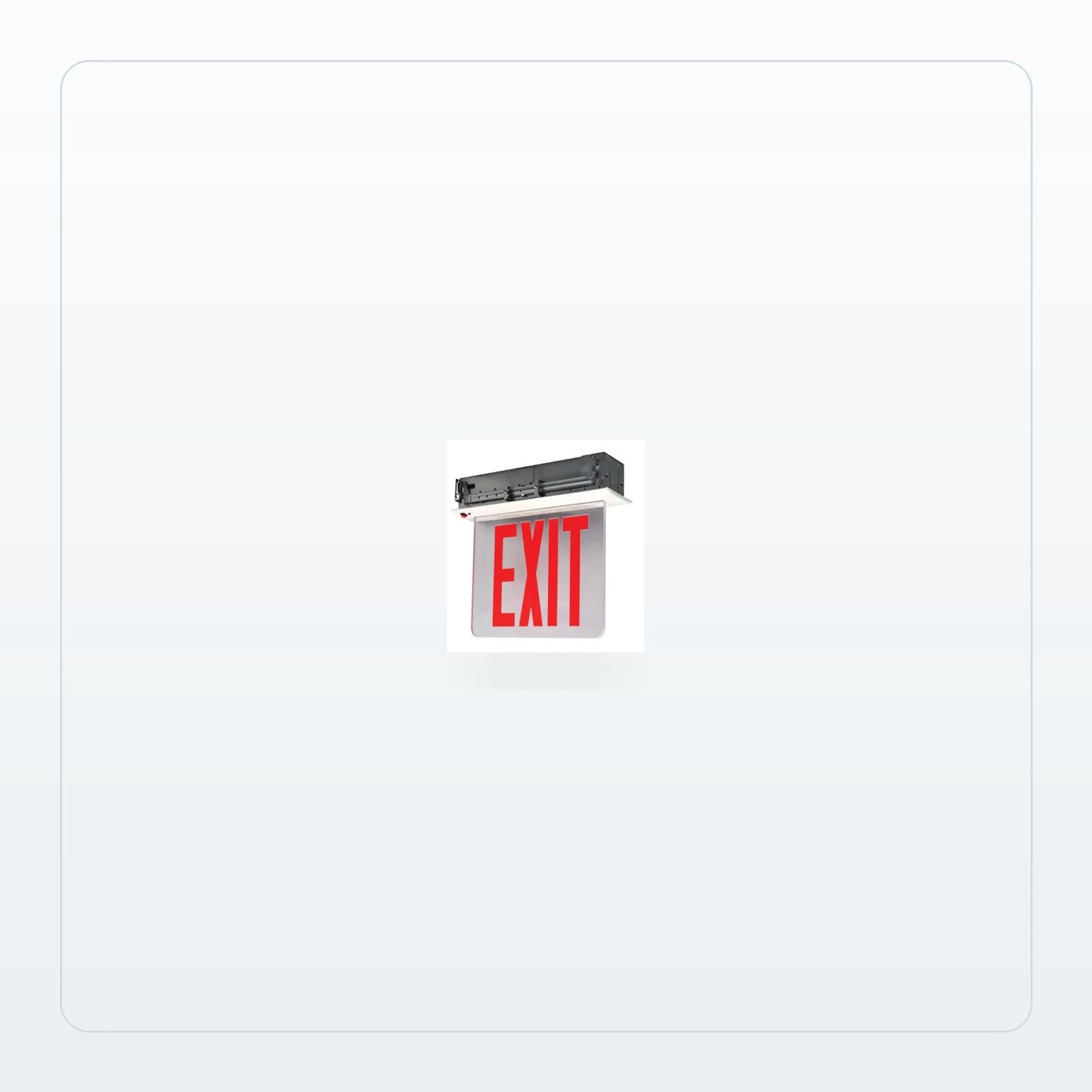

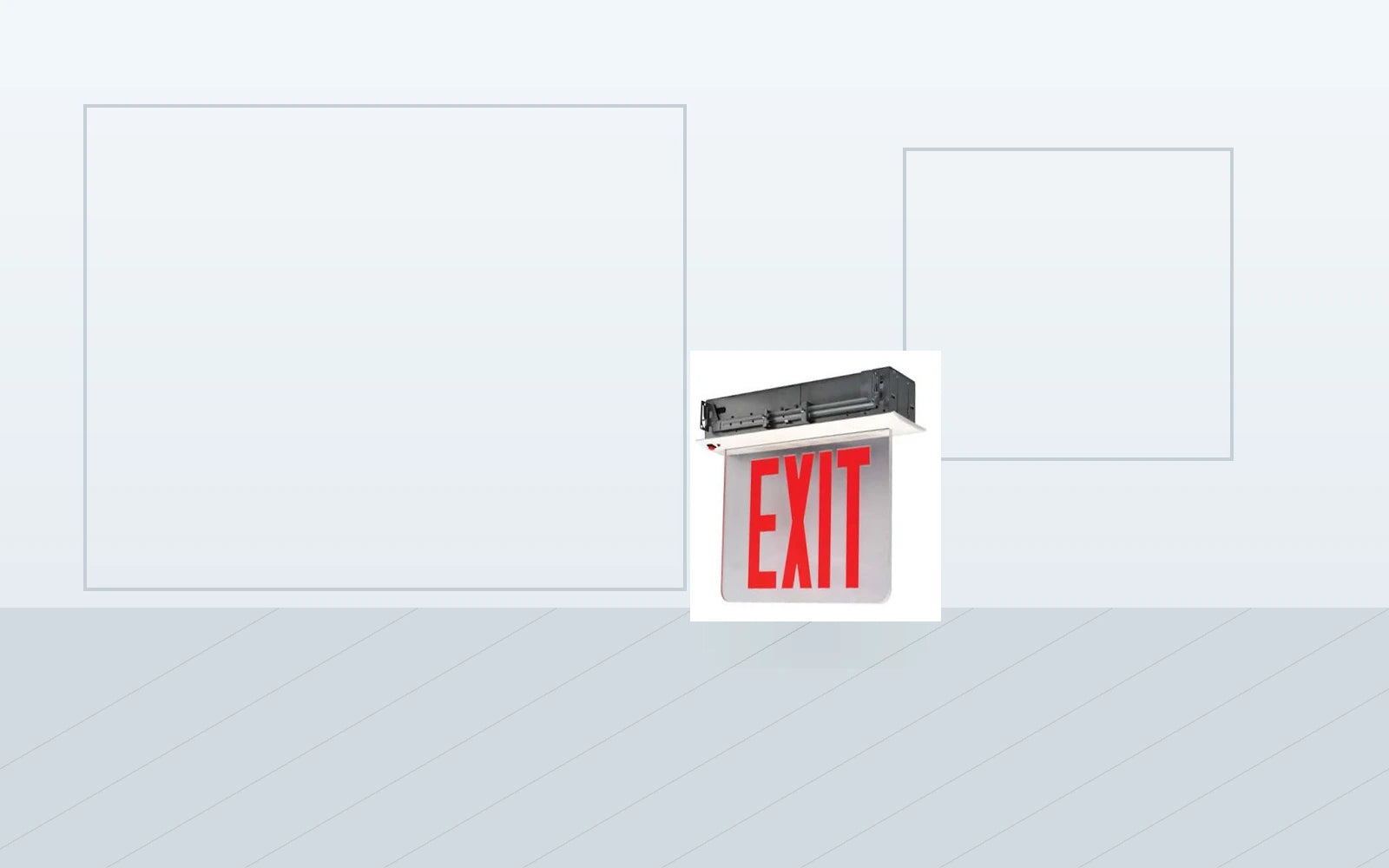

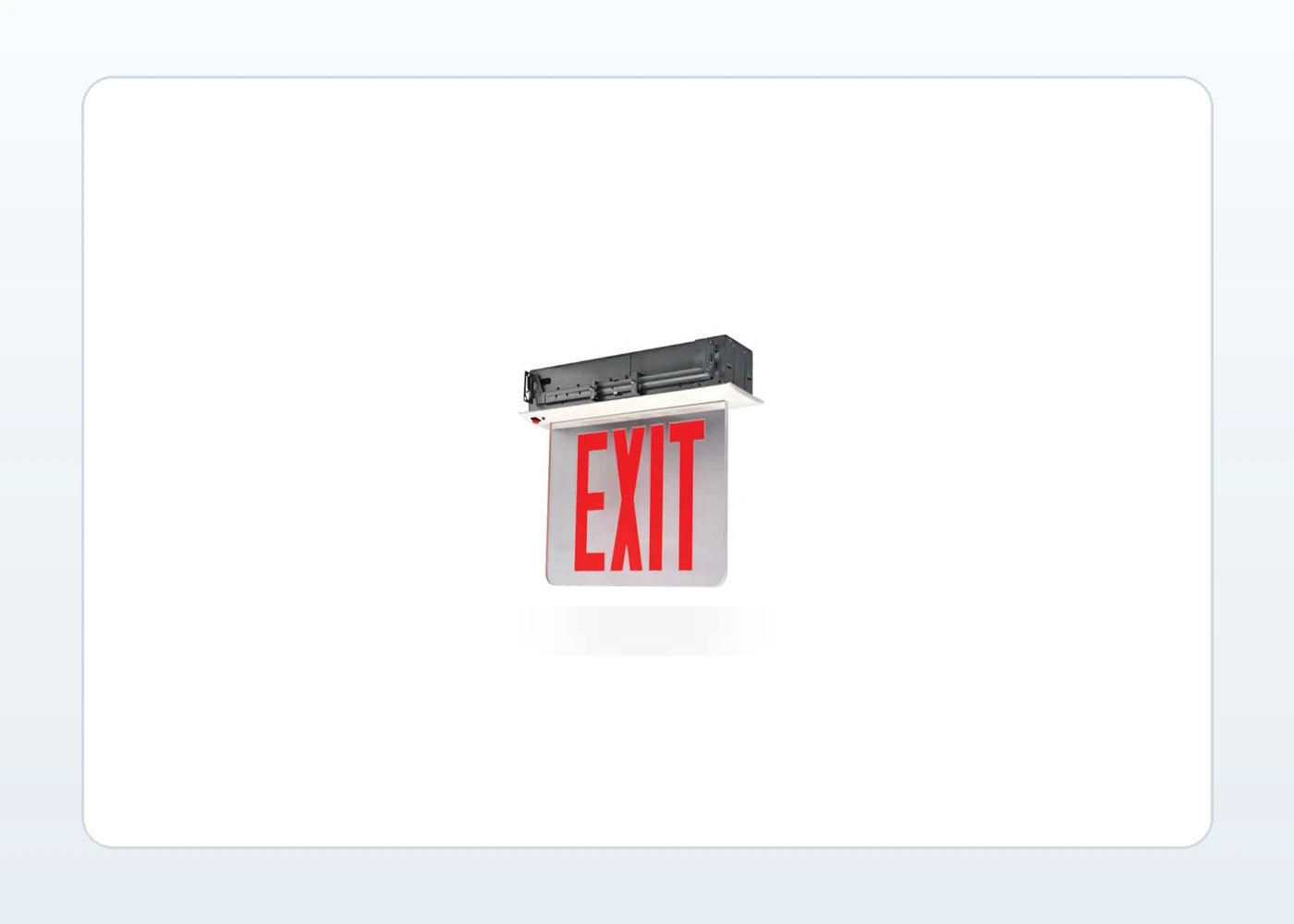

Edge-Lit Exit Sign - Recessed, NYC 8" Red Letters - Single Face - Unlimited Lights Project Ready
The Edge-Lit Exit Sign - Recessed, NYC 8" Red Letters - Single Face is an exit sign from Best Lighting model family NYRELZXTE1RCW for commercial egress signage. Use the spec-backed details below to confirm fit before adding it to a quote or project order. Key project details include 120V, 277V, 208V, 240V, and 8V.
Quick fit
- Model or SKU family: NYRELZXTE1RCW.
- Electrical configuration includes 120V, 277V, 208V, and 240V.
- Mounting support includes Wall, Ceiling, and Recessed.
- Housing or construction: Aluminum, Acrylic, and Extruded Aluminum.
- Location fit: Damp Location.
- Spec-listed standards and ratings include UL Listed, NFPA 101, NEC, OSHA, and UL 924.
- Emergency backup: Yes, and No.
Key specifications
| Product family | exit sign |
|---|---|
| Brand | Best Lighting |
| Model / SKU family | NYRELZXTE1RCW |
| Voltage | 120V, 277V, 208V, 240V, and 8V |
| Wattage | Under 10W, 1 W, and 2 W |
| Location rating | Damp Location |
| Mounting | Wall, Ceiling, and Recessed |
| Housing / construction | Aluminum, Acrylic, and Extruded Aluminum |
| Exit sign type | Edge-Lit Exit Sign, and LED Exit Sign |
| Letter color | Red, and Black |
| Face count | Single Face, and Double Face |
| Power source | AC Only, and Battery Backup |
| Emergency backup | Yes, and No |
| Self-testing | Yes |
| Warranty / service life | Five year warranty |
| Certifications / listings | UL Listed, NFPA 101, NEC, OSHA, and UL 924 |
Application guidance
Use this exit sign for commercial egress signage where the model, voltage, size, and listing details match the existing fixture or project requirement. Compare related options in Exit Signs, Edge Lit Exit Signs.
Installation and compliance notes
- Install according to the manufacturer instructions and applicable electrical code requirements.
- Confirm final approval requirements with the authority having jurisdiction before ordering for inspected work.
- Match the product voltage to the project circuit: 120V, 277V, 208V, 240V, and 8V.
- Confirm the installed environment matches the listed location rating: Damp Location.
- Keep the spec sheet with project submittals for listed ratings such as UL Listed, NFPA 101, NEC, and OSHA.
Options and variants
- Panel | Trim Plate: White | White, Mirror | Aluminum, White | Aluminum, White | Black, Mirror | Black, Clear | Black, Clear | White, and Mirror | White
- Options: Battery Backup | Wall Mount | Self Diagnostics | Special Voltage: Battery Backup | Special Voltage, Battery Backup | Self Diagnostics, Wall Mount | Special Voltage, Battery Backup | Wall Mount | Special Voltage, Battery Backup | Wall Mount | Self Diagnostics, Battery Backup, Wall Mount, and Battery Backup | Wall Mount
- Available SKU examples: NYRELZXTE1RCW, NYRELZXTE1RCWEM, NYRELZXTE1RCW-WM, NYRELZXTE1RCWSPV, NYRELZXTE1RCWEM-WM, NYRELZXTE1RCWEMSDT, NYRELZXTE1RCWEMSPV, NYRELZXTE1RCW-WMSPV and additional configured SKUs.
Documents
Product FAQ
How can this exit sign be mounted?
The source spec indicates Wall, Ceiling, and Recessed mounting support. Confirm the selected variant and installation instructions before release.
What voltage should I confirm before ordering?
Confirm the project circuit matches the product voltage shown in the spec: 120V, 277V, 208V, 240V, and 8V.
Can this be used in damp or wet locations?
Use the listed environment rating as the guide. This product references Damp Location in the available product data.
Which option should I choose?
Choose the variant that matches the required face count, color, mounting, voltage, or feature package shown in the option selector and SKU list.
What should I review before ordering?
Review the spec sheet, SKU options, mounting conditions, voltage, location rating, lead time, and any job-specific code requirements.
Use this checklist to confirm Edge-Lit Exit Sign - Recessed, NYC 8" Red Letters - Single Face - Unlimited Lights Project Ready against the project before ordering. For replacement matching, keep model numbers, photos, cut sheets and quantity notes together.
| Check | What to confirm |
|---|---|
| Compliance | Listing, approval language, project documents and AHJ requirements. |
| Environment | Indoor, damp, wet-location, outdoor, hazardous or high-traffic conditions. |
| Mounting | Wall, ceiling, end mount, pole, height, aiming, face count or fixture clearance. |
| Runtime and power | Voltage, battery backup, emergency runtime, remote capacity or control needs. |
| Compatibility | SKU, lamp/driver/ballast match, dimensions, wiring and accessory requirements. |
| Downloads | Review available cut sheets, install guides and IES files in the product details or request them for quote support. |
