Chicago-Approved Steel LED Exit & Emergency Combo - Battery Backup - Unlimited Lights Project Ready

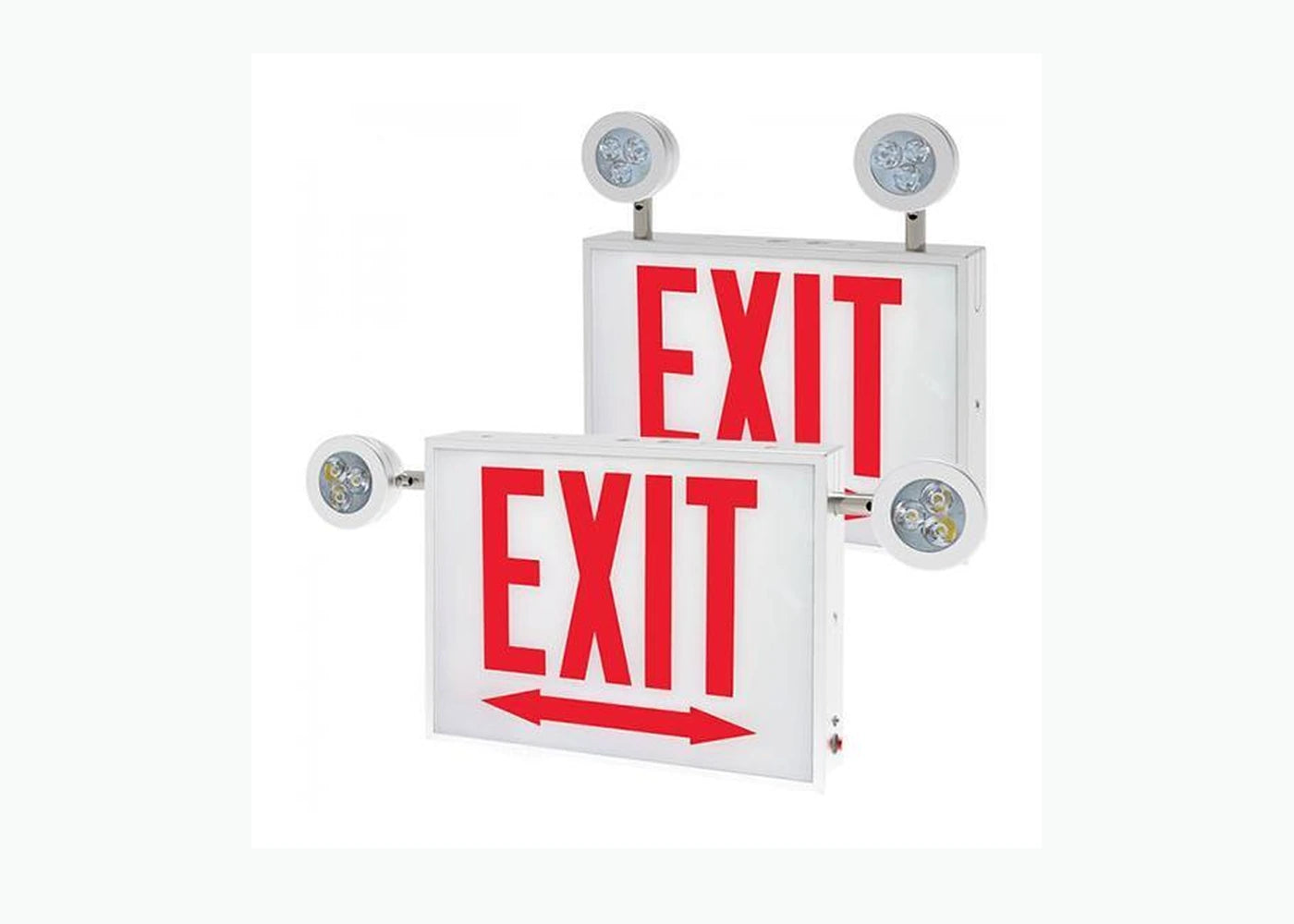

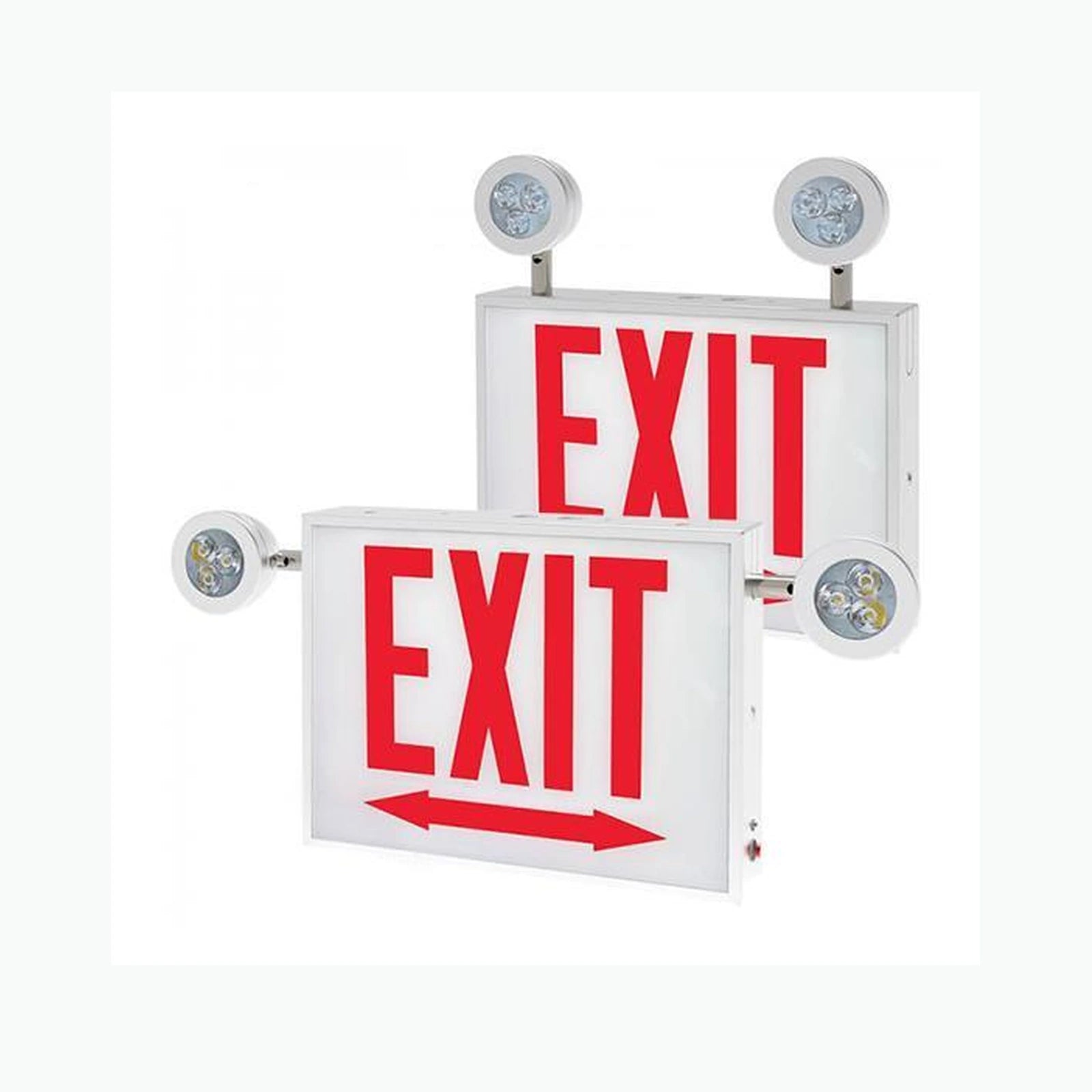

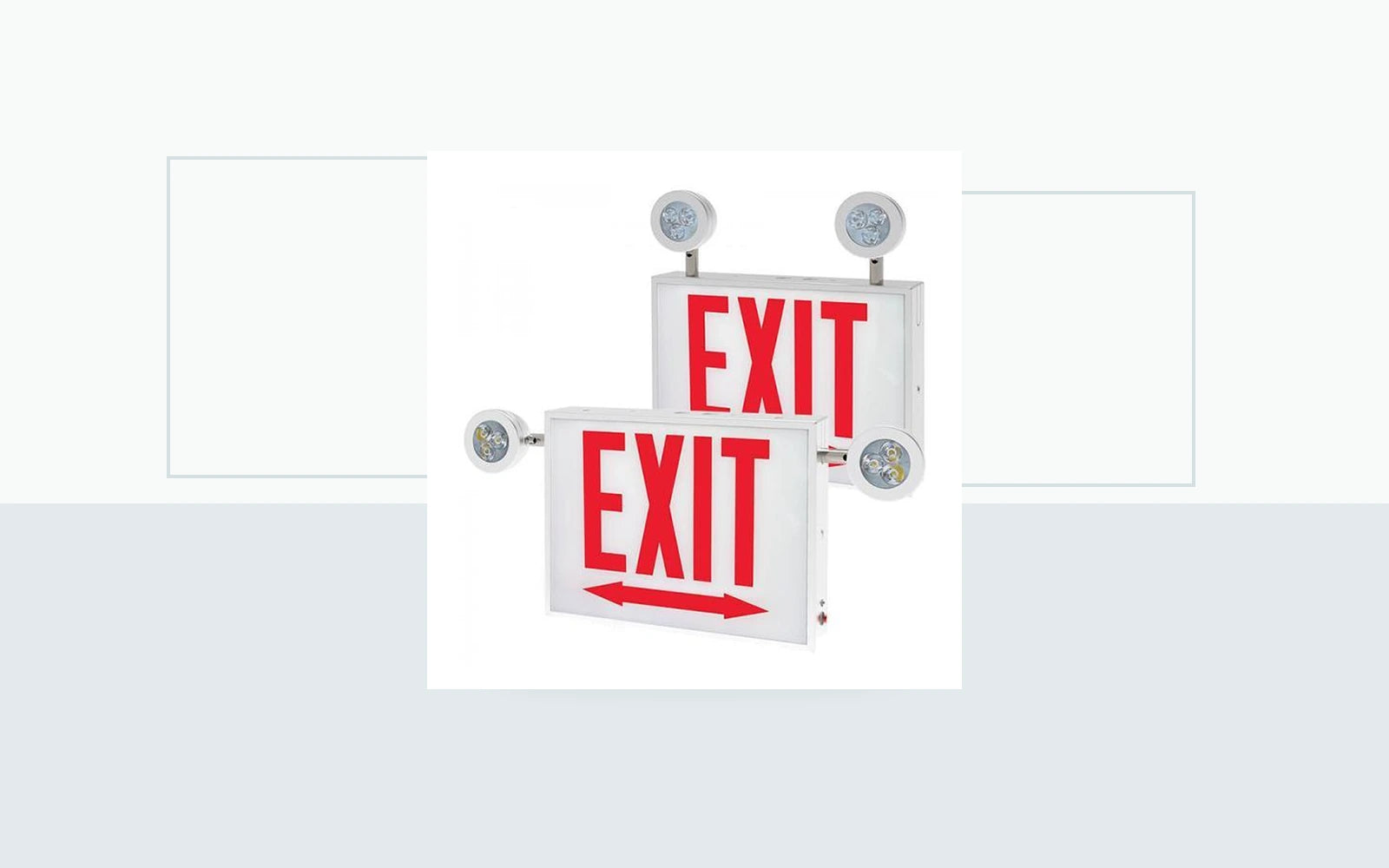

The Chicago-Approved Steel LED Exit & Emergency Combo - Battery Backup is an exit sign and emergency light combo from Exitronix model family CHIC for combined exit signage and emergency lighting. Use the spec-backed details below to confirm fit before adding it to a quote or project order. Key project details include 277V, 120V, 277VAC, 120VAC, and Wall.
Quick fit
- Model or SKU family: CHIC.
- Electrical configuration includes 277V, 120V, 277VAC, and 120VAC.
- Mounting support includes Wall, Ceiling, Pendant, and Universal.
- Housing or construction: Steel, and Glass.
- Location fit: Damp Location.
- Spec-listed standards and ratings include UL 924, UL Listed, NFPA 101, and NEC.
- Emergency backup: Yes.
Key specifications
| Product family | exit sign and emergency light combo |
|---|---|
| Brand | Exitronix |
| Model / SKU family | CHIC |
| Voltage | 277V, 120V, 277VAC, and 120VAC |
| Wattage | Under 10W, and 2.85W |
| Lumens | Under 500 lm, and 396 lumens |
| Location rating | Damp Location |
| Mounting | Wall, Ceiling, Pendant, Universal, End Mount, and Canopy Mount |
| Housing / construction | Steel, and Glass |
| Exit sign type | Steel Exit Sign, High-Abuse Exit Sign, Compact Exit Sign, and Low-Profile Exit Sign |
| Letter color | Red |
| Face count | Single Face, and Double Face |
| Power source | Battery Backup, LiFePO4 Battery, and Lithium Battery |
| Emergency light type | Steel Emergency Light, Compact Emergency Light, and LED Emergency Light |
| Head count | 2 Heads |
| Emergency backup | Yes |
| Self-testing | No |
| Remote capable | No |
| Operating temperature | 5°C to 45°C, and 41°F to 113°F |
| Certifications / listings | UL 924, UL Listed, NFPA 101, and NEC |
Application guidance
Use this exit sign and emergency light combo for combined exit signage and emergency lighting where the housing, head configuration, voltage, and location rating match the project. Confirm spacing, mounting height, and emergency egress requirements with the project plans. Compare related options in Exit Sign and Emergency Light Combos, Steel Exit Sign And Emergency Light Combos, Exit Signs.
Installation and compliance notes
- Install according to the manufacturer instructions and applicable electrical code requirements.
- Confirm final approval requirements with the authority having jurisdiction before ordering for inspected work.
- Match the product voltage to the project circuit: 277V, 120V, 277VAC, and 120VAC.
- Confirm the installed environment matches the listed location rating: Damp Location.
- Keep the spec sheet with project submittals for listed ratings such as UL 924, UL Listed, NFPA 101, and NEC.
Options and variants
- Base: Default
- Available SKU examples: CHIC.
Documents
Product FAQ
How can this exit sign and emergency light combo be mounted?
The source spec indicates Wall, Ceiling, Pendant, Universal, and End Mount mounting support. Confirm the selected variant and installation instructions before release.
What voltage should I confirm before ordering?
Confirm the project circuit matches the product voltage shown in the spec: 277V, 120V, 277VAC, and 120VAC.
Can this be used in damp or wet locations?
Use the listed environment rating as the guide. This product references Damp Location in the available product data.
What should I review before ordering?
Review the spec sheet, SKU options, mounting conditions, voltage, location rating, lead time, and any job-specific code requirements.
Use this checklist to confirm Chicago-Approved Steel LED Exit & Emergency Combo - Battery Backup - Unlimited Lights Project Ready against the project before ordering. For replacement matching, keep model numbers, photos, cut sheets and quantity notes together.
| Check | What to confirm |
|---|---|
| Compliance | Listing, approval language, project documents and AHJ requirements. |
| Environment | Indoor, damp, wet-location, outdoor, hazardous or high-traffic conditions. |
| Mounting | Wall, ceiling, end mount, pole, height, aiming, face count or fixture clearance. |
| Runtime and power | Voltage, battery backup, emergency runtime, remote capacity or control needs. |
| Compatibility | SKU, lamp/driver/ballast match, dimensions, wiring and accessory requirements. |
| Downloads | Review available cut sheets, install guides and IES files in the product details or request them for quote support. |
