Chicago-Approved Steel Exit - Stair Sign

Chicago-Approved Steel EXIT / STAIR Sign — 6? Red Letters, 120/277 V, 120-min Ni-Cd (EM), Single/Double Face — Features & Specs

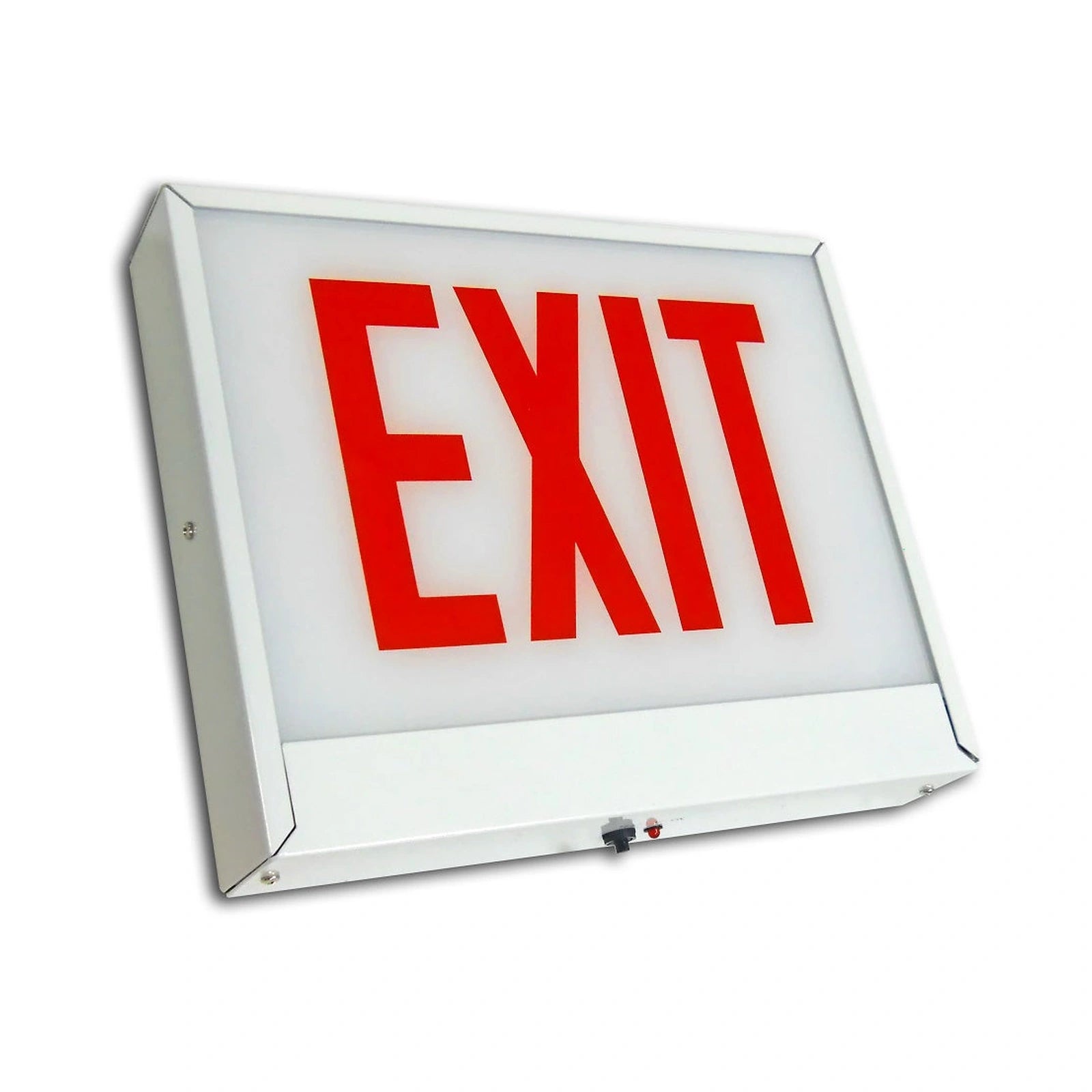

The CAXTE Chicago-Approved Steel EXIT / STAIR Sign pairs a powder-coated 20-gauge steel cabinet with a bright red-on-white legend and field-configurable arrows. It’s built for stairwells, corridors, and public interiors that require Chicago-approved LED exit signs. Emergency (EM) models include a 4.8 V Ni-Cd battery with up to 120 minutes of runtime.

Key Features

• City of Chicago Approved; UL 924 listed.
• LED-illuminated EXIT/STAIR legend with uniform brightness.
• 120/277 V dual-voltage with status LED and push-to-test.
• EM models: 4.8 V Ni-Cd battery, up to 120 min runtime; ˜24-hour recharge.
• Solid-state transfer and two-rate charger.
• Universal mounting: top/end canopy or wall via rear backplate.
• Convertible: ships single-face; field-convertible to double-face.
• Rugged 20-gauge powder-coated steel housing (white or black).
• Removable steel chevron arrows for directional marking.
• Damp-location rated (0–50 °C); CEC Title 20 compliant.
• 5-year electronics/housing warranty; 5-year prorated battery.

Related Chicago Guides

Spec Sheet

Download Steel Exit Sign Spec Sheet (PDF)

Illumination

• Long-life white LEDs for uniform EXIT or STAIR legend visibility.
• Field-selectable legends with multiple arrow directions.

Electrical

• 120/277 V dual-voltage input with bi-color indicator and push-to-test for quick checks (see our LED exit signs collection).
• 4.8 V Ni-Cd battery (EM models) — up to 120-minute emergency runtime.
• Solid-state transfer; two-rate charger (˜24-hour recharge).
• Power draw: 5 W • 0.10 A @ 120 V • 0.05 A @ 277 V.

Mounting

• Top or end mount using the included steel canopy.
• Wall mount via the universal rear backplate knockouts.
• Convert from single-face to double-face in the field as needed.

Housing

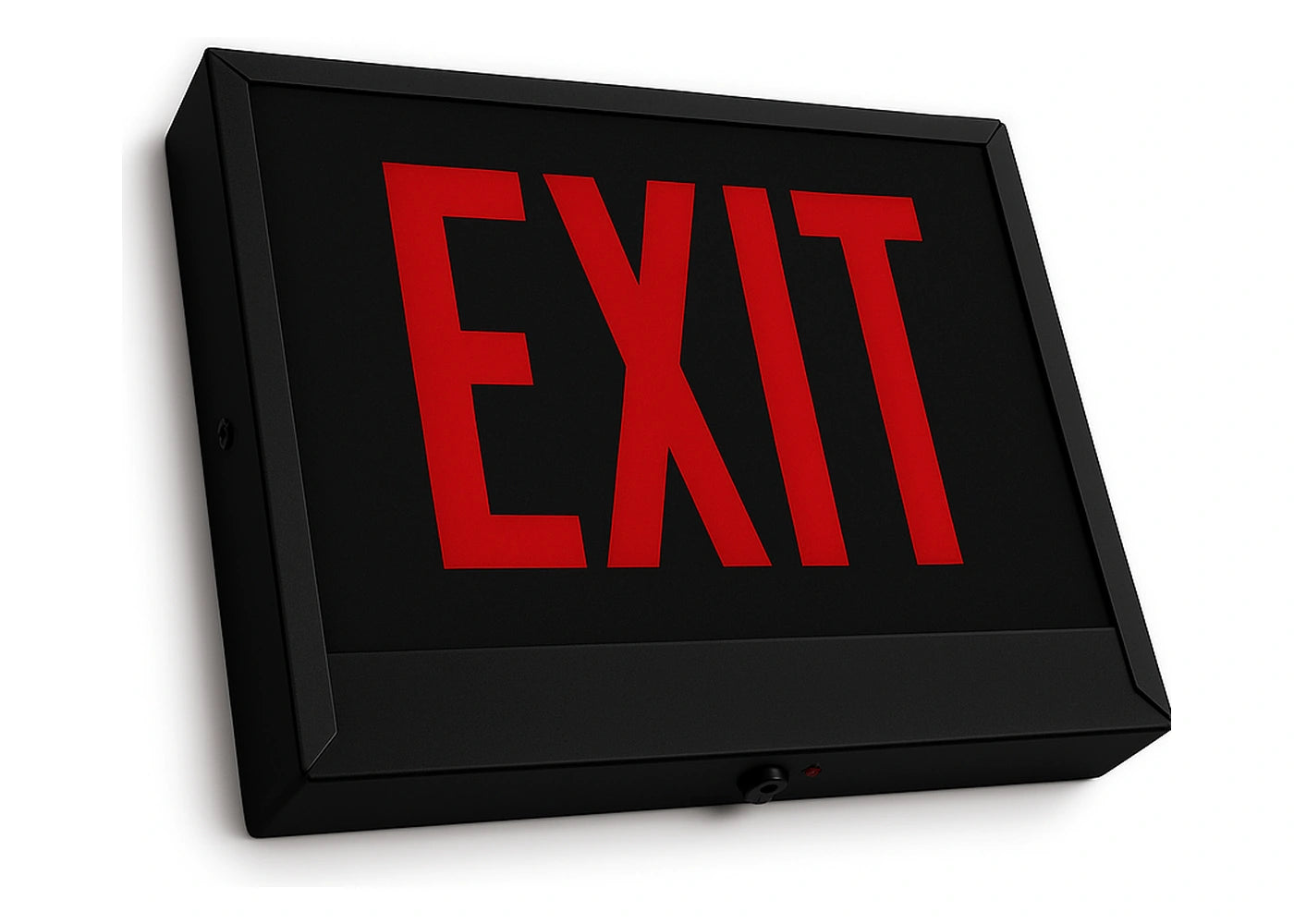

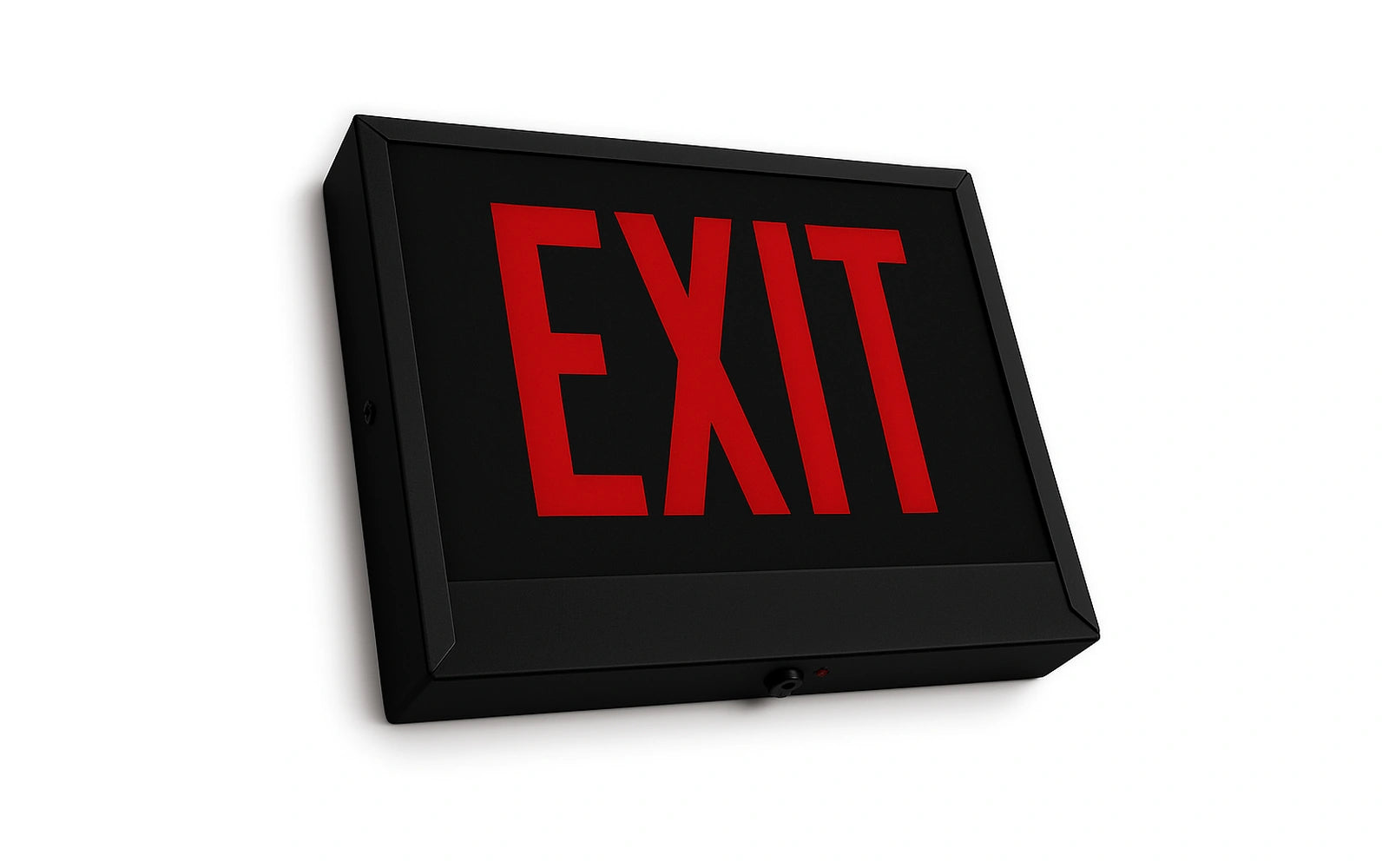

• Durable 20-gauge powder-coated steel — white or black finish.
• Removable steel chevron arrows for directional marking.

Options

• Legend options: EXIT or STAIR.
• Arrow configurations: None, Left, Right, or Double.

Warranty / Listings

• 5-year warranty on electronics and housing; 5-year prorated battery.
• UL 924 listed for damp locations (0–50 °C); City of Chicago Approved; CEC Title 20 certified.
• Complies with NFPA 101, NEC, and OSHA. For plan-review notes, see the Chicago Compliance Guide.

Dimensions

• Cabinet: 12 in W × 10 in H × 2 in D
• Overall depth to face: 4½ in

Frequently Asked Questions

Is the CAXTE sign approved for use in Chicago?

Yes. The CAXTE Chicago-Approved Steel EXIT / STAIR Sign is UL 924 listed for damp locations and meets City of Chicago requirements.

Does this fixture include emergency backup?

Yes. EM models include a 4.8 V Ni-Cd battery that powers the sign for up to 120 minutes during an outage.

What mounting options are supported?

Mount to the wall using the universal backplate or choose top/end mounting with the included steel canopy.

Can I configure the sign to show arrows?

Yes. The faceplate includes field-removable steel chevrons for left, right, double-arrow, or no-arrow configurations.

Is the sign single or double face?

It ships single-face and includes components to convert to double-face in the field.
