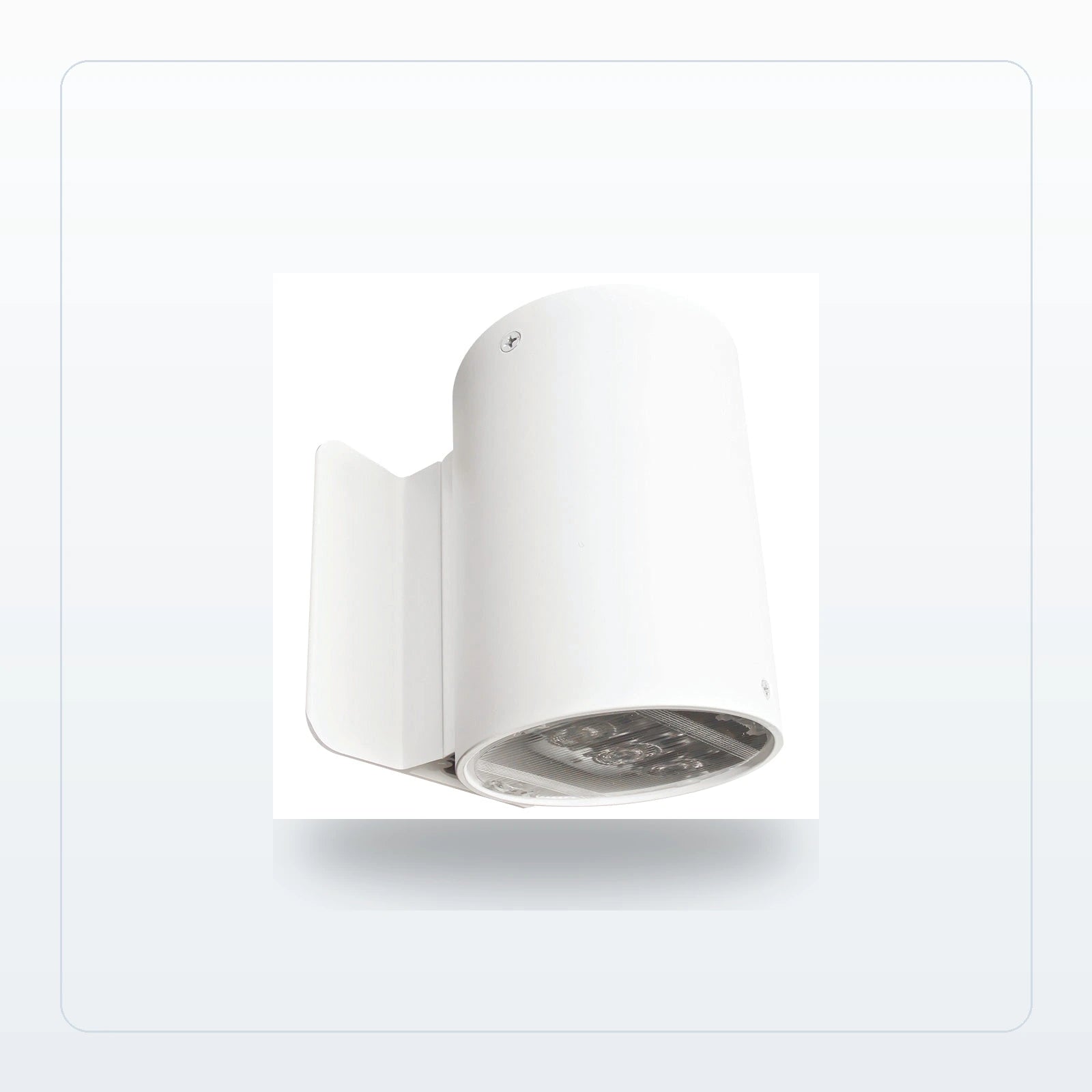

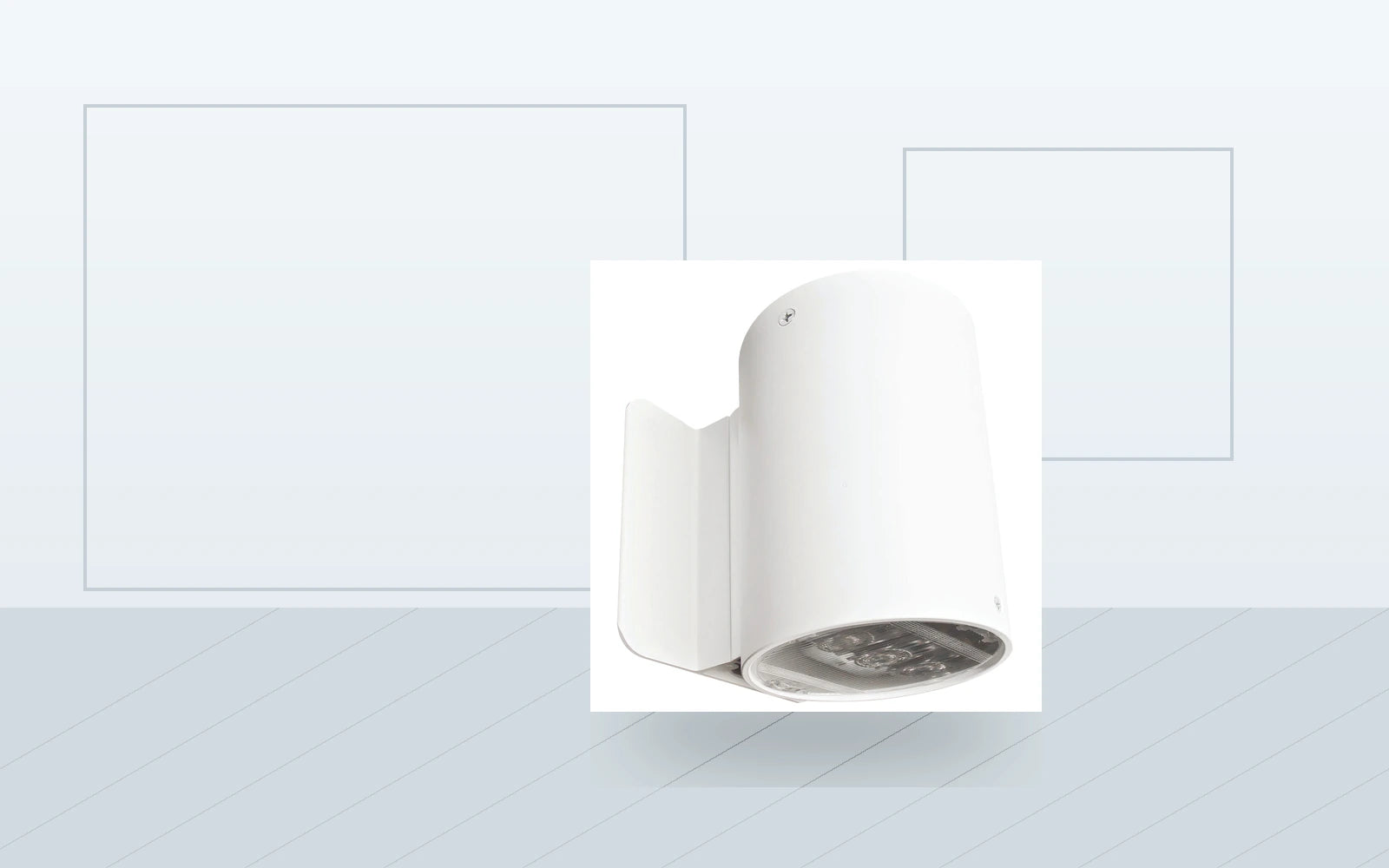

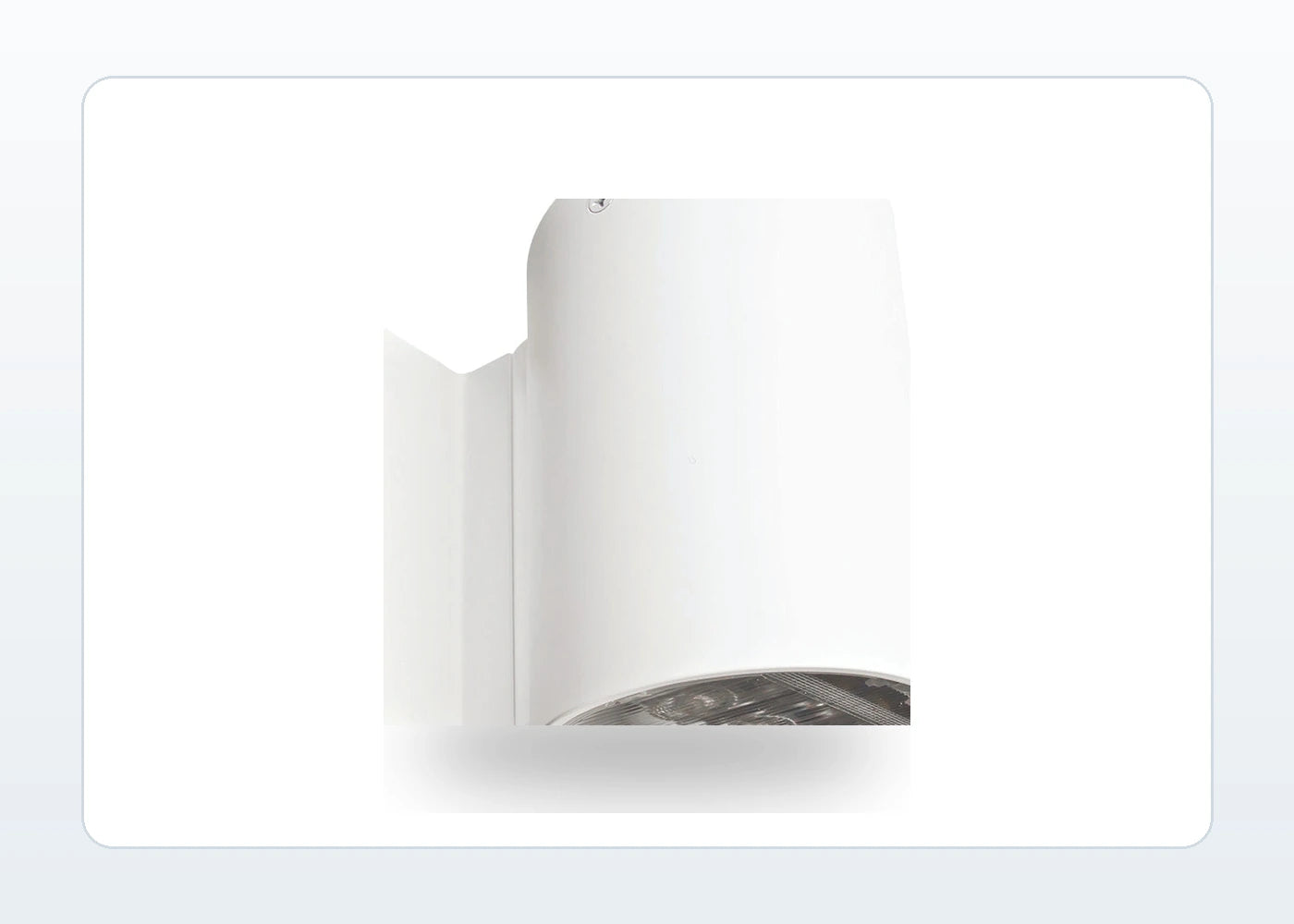

Architectural Cylinder Emergency Down-Light - Luxeon LEDs, 55 ft Spacing - Unlimited Lights Project Ready
The Architectural Cylinder Emergency Down-Light - Luxeon LEDs, 55 ft Spacing is an emergency light from Exitronix model family NF1-WB-7L-WH-PM12 for emergency egress illumination. Use the spec-backed details below to confirm fit before adding it to a quote or project order. Key project details include 120/277V, 120VAC, 277VAC, 120/277VAC, and Surface.
Quick fit
- Model or SKU family: NF1-WB-7L-WH-PM12.
- Electrical configuration includes 120/277V, 120VAC, 277VAC, and 120/277VAC.
- Mounting support includes Surface, Wall, Ceiling, and Pendant.
- Housing or construction: Polycarbonate, Aluminum, and Extruded Aluminum.
- Location fit: Damp Location, and Indoor.
- Spec-listed standards and ratings include UL 924, ETL, NFPA 101, NEC, and BABA.
- Emergency backup: Yes.
Key specifications
| Product family | emergency light |
|---|---|
| Brand | Exitronix |
| Model / SKU family | NF1-WB-7L-WH-PM12 |
| Voltage | 120/277V, 120VAC, 277VAC, and 120/277VAC |
| Wattage | Under 10W, 10-29W, 7W, and 10.5W |
| Color temperature | 5600K |
| Location rating | Damp Location, and Indoor |
| Mounting | Surface, Wall, Ceiling, Pendant, and Canopy Mount |
| Housing / construction | Polycarbonate, Aluminum, and Extruded Aluminum |
| Emergency light type | High-Output Emergency Light, and LED Emergency Light |
| Head count | 2 Heads |
| Emergency backup | Yes |
| Self-testing | Yes |
| Remote capable | No |
| Controls | Photocell |
| Certifications / listings | UL 924, ETL, NFPA 101, NEC, BABA, and ETL Listed |
Application guidance
Use this emergency light for emergency egress illumination where the housing, head configuration, voltage, and location rating match the project. Confirm spacing, mounting height, and emergency egress requirements with the project plans. Compare related options in Emergency Lights, Self Testing Emergency Lights.
Installation and compliance notes
- Install according to the manufacturer instructions and applicable electrical code requirements.
- Confirm final approval requirements with the authority having jurisdiction before ordering for inspected work.
- Match the product voltage to the project circuit: 120/277V, 120VAC, 277VAC, and 120/277VAC.
- Confirm the installed environment matches the listed location rating: Damp Location, and Indoor.
- Keep the spec sheet with project submittals for listed ratings such as UL 924, ETL, NFPA 101, and NEC.
Options and variants
- Wattage: (3) 3.5 Watt LEDs, and (2) 3.5 Watt LEDs
- Mounting: 6" Pendant Mount Assembly, Surface Mount (Top), J-box Mount, 12" Pendant Mount Assembly, and Wall Mount
- Options: Damp Location Rated | Self Diagnostics | Security Lighting/Night Lighting: Damp Location Rated | Self Diagnostics, Security Lighting/Night Lighting 120VAC, Self Diagnostics | Security Lighting/Night Lighting 120VAC, Damp Location Rated, and Self Diagnostics
- Available SKU examples: NF1-WB-7L-WH-PM12, NF1-WB-7L-WH-WM, NF1-WB-10L-WH-JB, NF1-WB-10L-WH-JB-DR, NF1-WB-10L-WH-JB-G2, NF1-WB-10L-WH-JB-DR-G2, NF1-WB-10L-WH-PM6, NF1-WB-10L-WH-PM6-DR and additional configured SKUs.
Documents
Product FAQ
How can this emergency light be mounted?
The source spec indicates Surface, Wall, Ceiling, Pendant, and Canopy Mount mounting support. Confirm the selected variant and installation instructions before release.
What voltage should I confirm before ordering?
Confirm the project circuit matches the product voltage shown in the spec: 120/277V, 120VAC, 277VAC, and 120/277VAC.
Can this be used in damp or wet locations?
Use the listed environment rating as the guide. This product references Damp Location, and Indoor in the available product data.
Which option should I choose?
Choose the variant that matches the required face count, color, mounting, voltage, or feature package shown in the option selector and SKU list.
What should I review before ordering?
Review the spec sheet, SKU options, mounting conditions, voltage, location rating, lead time, and any job-specific code requirements.
Use this checklist to confirm Architectural Cylinder Emergency Down-Light - Luxeon LEDs, 55 ft Spacing - Unlimited Lights Project Ready against the project before ordering. For replacement matching, keep model numbers, photos, cut sheets and quantity notes together.
| Check | What to confirm |
|---|---|
| Compliance | Listing, approval language, project documents and AHJ requirements. |
| Environment | Indoor, damp, wet-location, outdoor, hazardous or high-traffic conditions. |
| Mounting | Wall, ceiling, end mount, pole, height, aiming, face count or fixture clearance. |
| Runtime and power | Voltage, battery backup, emergency runtime, remote capacity or control needs. |
| Compatibility | SKU, lamp/driver/ballast match, dimensions, wiring and accessory requirements. |
| Downloads | Review available cut sheets, install guides and IES files in the product details or request them for quote support. |
