Adjustable Wall Pack - LED Outdoor Fixture with Rotating Light Bars - Unlimited Lights Project Ready

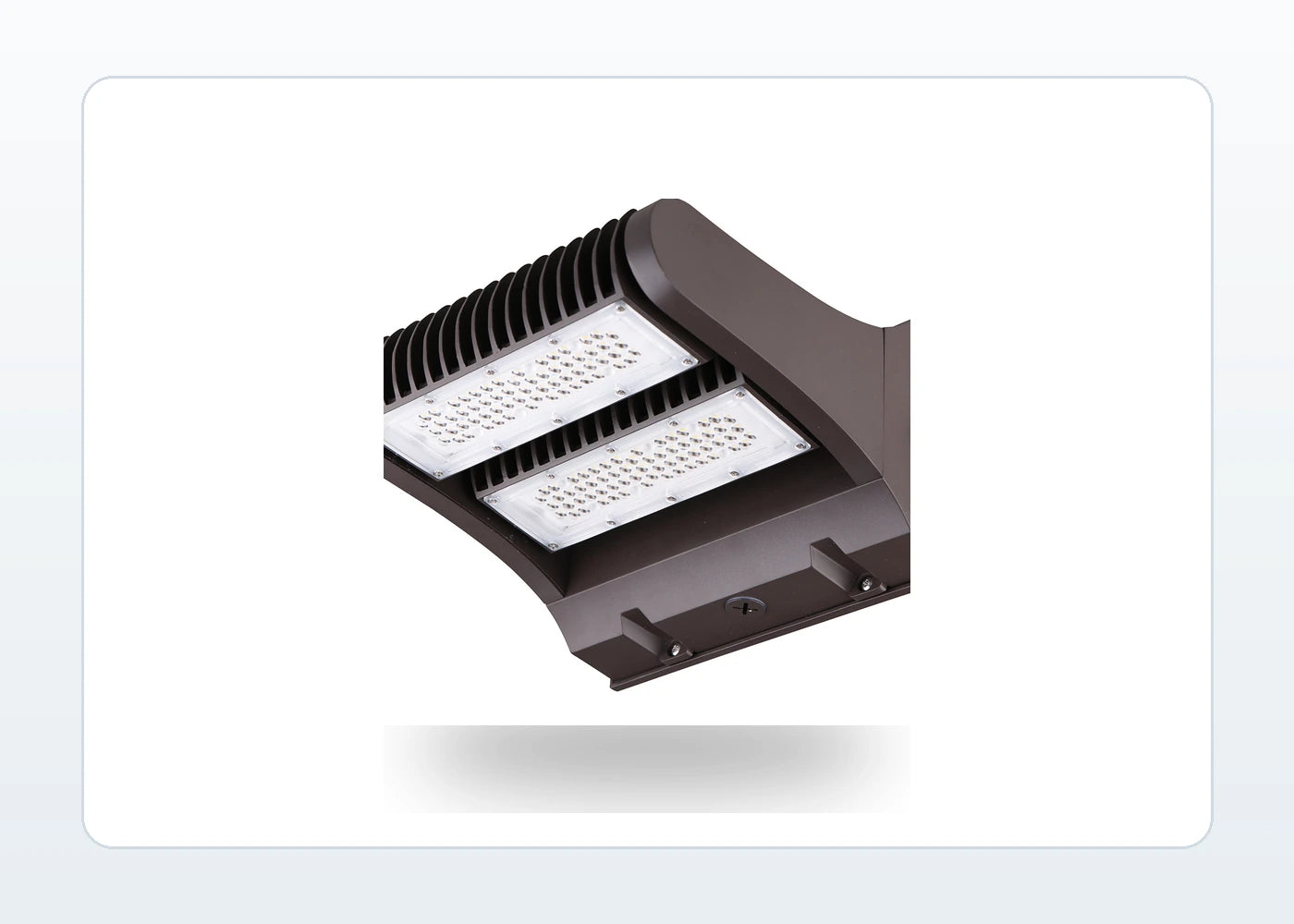

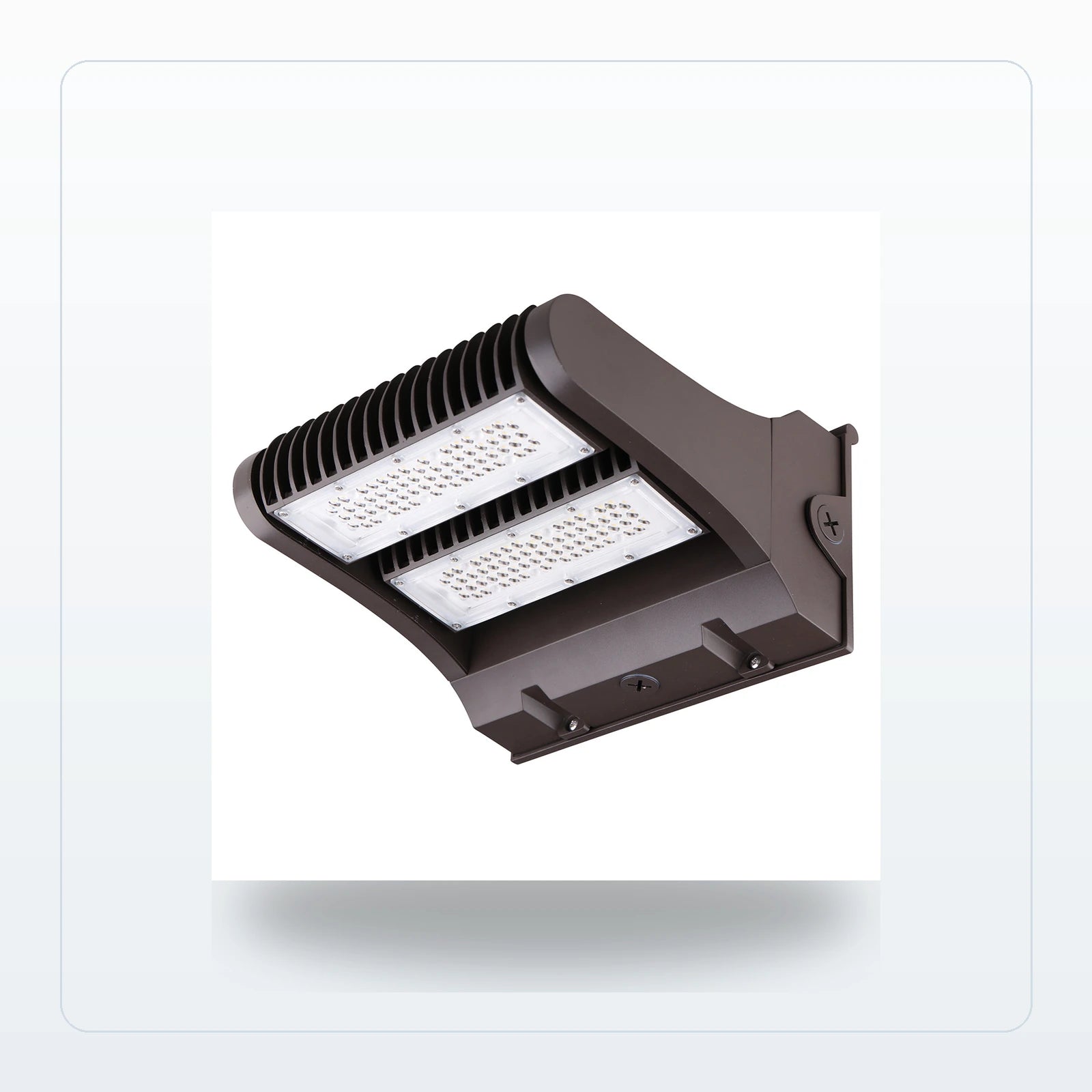

The Adjustable Wall Pack - LED Outdoor Fixture with Rotating Light Bars is a LED wall pack from TraceLite model family BAWX-1-25-C-BR for commercial exterior lighting. Use the spec-backed details below to confirm fit before adding it to a quote or project order. Key project details include 120/277V, 120-277VAC, 120/277VAC, Surface, and Wall Mount.
Quick fit
- Model or SKU family: BAWX-1-25-C-BR.
- Electrical configuration includes 120/277V, 120-277VAC, and 120/277VAC.
- Mounting support includes Surface, Wall Mount, and Arm Mount.
- Housing or construction: Polycarbonate, Aluminum, Die-Cast Aluminum, and Cast Aluminum.
- Location fit: Wet Location, Outdoor, and IP65.
- Spec-listed standards and ratings include UL Listed, DLC, IP65, and DLC Listed.
- Output and power details from the spec include 10-29W, 60-99W, 30-59W, 25W, and 60W.
Key specifications
| Product family | LED wall pack |
|---|---|
| Brand | TraceLite |
| Model / SKU family | BAWX-1-25-C-BR |
| Voltage | 120/277V, 120-277VAC, and 120/277VAC |
| Wattage | 10-29W, 60-99W, 30-59W, 25W, 60W, and 40W |
| Lumens | Under 500 lm, 5,000-9,999 lm, 10,000-19,999 lm, 3,286 lumens, 8400 lumens, and 11,200 lumens |
| Color temperature | 3000K, 5000K, Selectable CCT, and 4000K |
| Location rating | Wet Location, Outdoor, and IP65 |
| Mounting | Surface, Wall Mount, and Arm Mount |
| Housing / construction | Polycarbonate, Aluminum, Die-Cast Aluminum, and Cast Aluminum |
| Controls | Photocell, CCT Selectable, Wattage Selectable, and Button Photocontrol |
| Operating temperature | -20°C to 40°C, and -4°F to 104°F |
| Warranty / service life | Five year warranty |
| Certifications / listings | UL Listed, DLC, IP65, and DLC Listed |
Application guidance

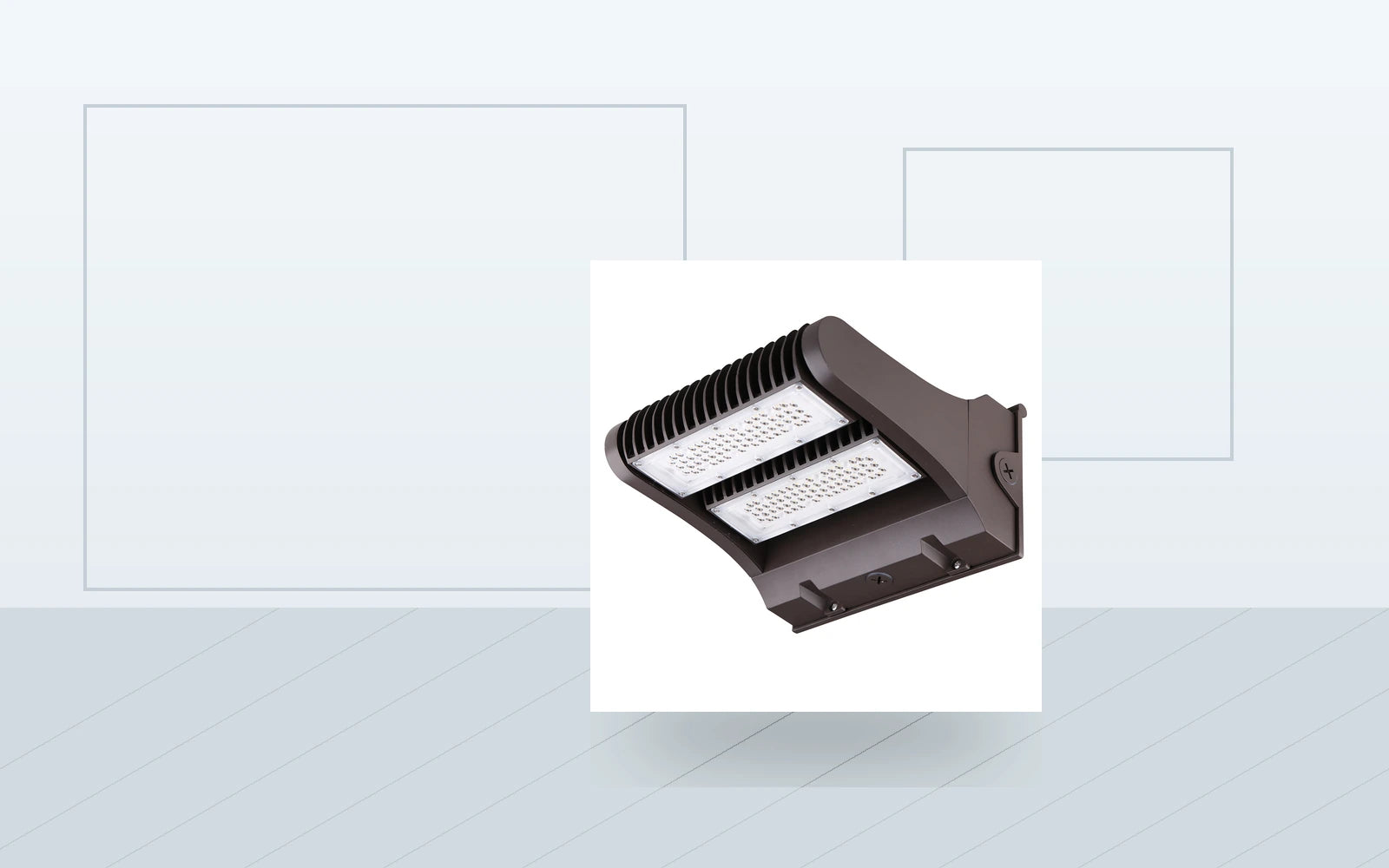

Use this LED wall pack for commercial exterior lighting where output, mounting, voltage, controls, and weather rating match the site plan. Confirm pole, wall, bracket, or aiming requirements before release. Compare related options in Outdoor LED Lights, LED Wall Pack Lights.
Installation and compliance notes
- Install according to the manufacturer instructions and applicable electrical code requirements.
- Confirm final approval requirements with the authority having jurisdiction before ordering for inspected work.
- Match the product voltage to the project circuit: 120/277V, 120-277VAC, and 120/277VAC.
- Confirm the installed environment matches the listed location rating: Wet Location, Outdoor, and IP65.
- Keep the spec sheet with project submittals for listed ratings such as UL Listed, DLC, IP65, and DLC Listed.
Options and variants
- Rotatable Bar | Power: 2-Bar Adjustable (40W/60W/80W) LED Wallpack, 2-Bar Adjustable (25W/40W/60W) LED Wallpack, and 1-Bar Adjustable (25W) LED Wallpack
- Available SKU examples: BAWX-1-25-C-BR, BAWX-2-60-CP-BR, BAWX-2-80-CP-BR.
Documents
Product FAQ
How can this LED wall pack be mounted?
The source spec indicates Surface, Wall Mount, and Arm Mount mounting support. Confirm the selected variant and installation instructions before release.
What voltage should I confirm before ordering?
Confirm the project circuit matches the product voltage shown in the spec: 120/277V, 120-277VAC, and 120/277VAC.
Can this be used in damp or wet locations?
Use the listed environment rating as the guide. This product references Wet Location, Outdoor, and IP65 in the available product data.
Which option should I choose?
Choose the variant that matches the required face count, color, mounting, voltage, or feature package shown in the option selector and SKU list.
What should I review before ordering?
Review the spec sheet, SKU options, mounting conditions, voltage, location rating, lead time, and any job-specific code requirements.
Use this checklist to confirm Adjustable Wall Pack - LED Outdoor Fixture with Rotating Light Bars - Unlimited Lights Project Ready against the project before ordering. For replacement matching, keep model numbers, photos, cut sheets and quantity notes together.
| Check | What to confirm |
|---|---|
| Compliance | Listing, approval language, project documents and AHJ requirements. |
| Environment | Indoor, damp, wet-location, outdoor, hazardous or high-traffic conditions. |
| Mounting | Wall, ceiling, end mount, pole, height, aiming, face count or fixture clearance. |
| Runtime and power | Voltage, battery backup, emergency runtime, remote capacity or control needs. |
| Compatibility | SKU, lamp/driver/ballast match, dimensions, wiring and accessory requirements. |
| Downloads | Review available cut sheets, install guides and IES files in the product details or request them for quote support. |
