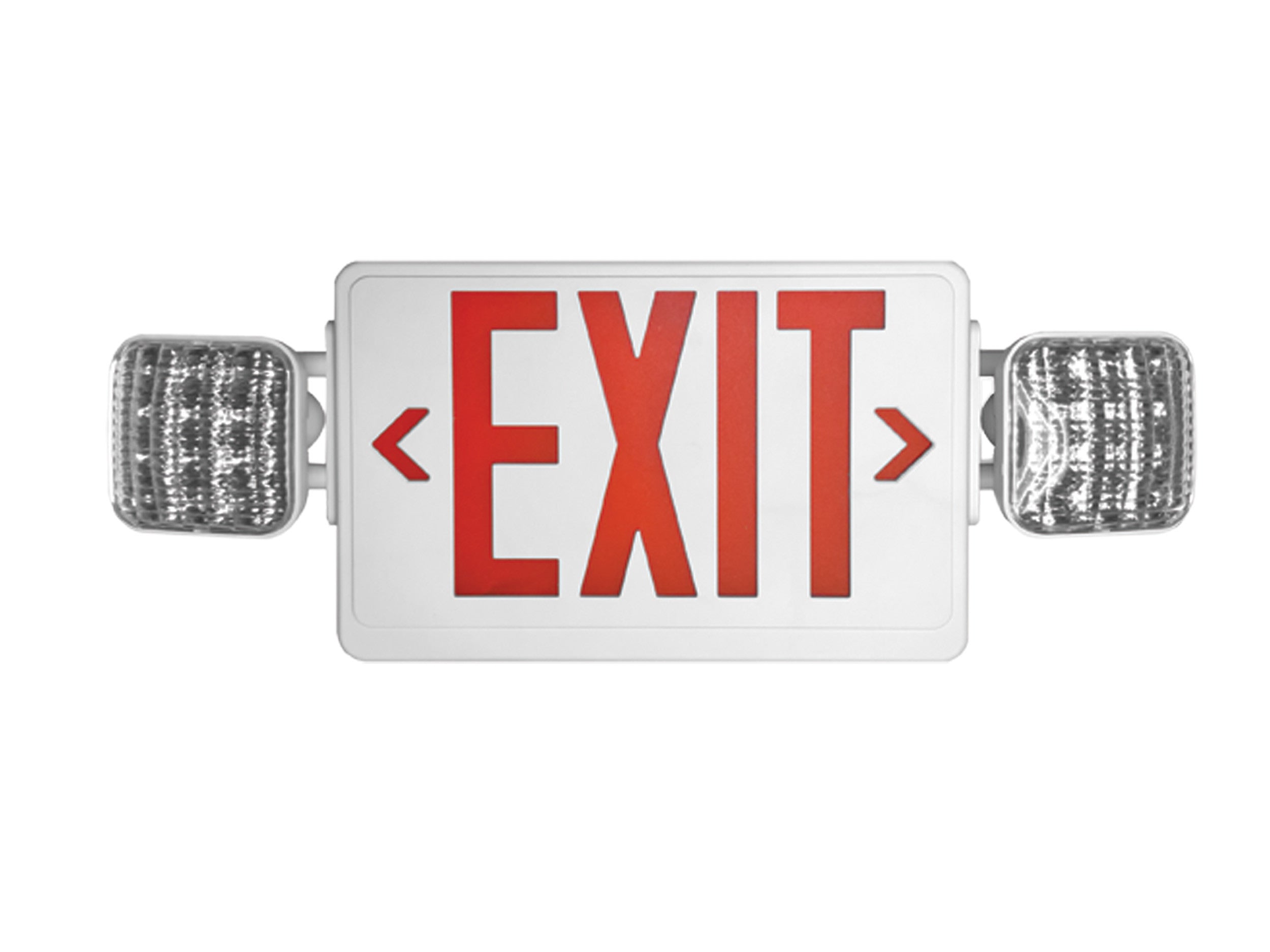

The Red LED Exit Sign Combo with fully adjustable LED Lights combines an efficient LED exit sign with reliable emergency lamps. The Red LED Exit Sign Combo with fully adjustable LED Lights being compliant affordable and simple. Only one electrical connection is required when installing an emergency exit combo. Installing an exit sign and separate emergency light requires two electrical connections and maintenance duties for two battery backup systems; eliminate this hassle by purchasing a combo exit sign with lights.

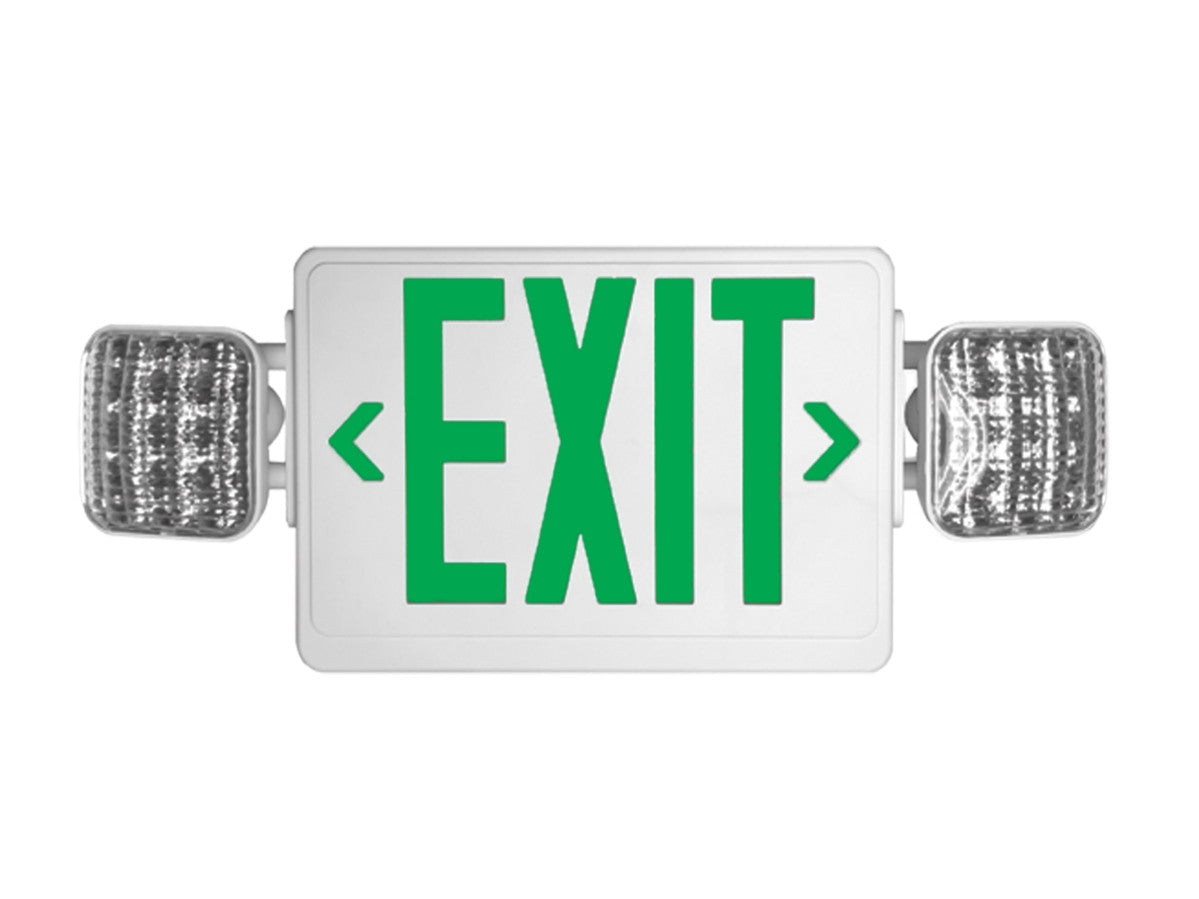

The Green LED Exit Sign Combo with LED Lights combines an efficient LED exit sign with reliable emergency lamps. Quality is not sacrificed for a lower bottom line, all VLED-U-WH-EL90 are UL 924 Listed for the United States; they are fire and building code compliant across the country. The EXIT portion of the combo is always ililluminated whereas the emergency lamps only ililluminate when power is lost. The battery backup system is what provides power for the unit when AC power is lost. This model features a 90-minute battery backup system for emergency operation of the exit sign and the emergency lights. A push button allows for easy testing of the battery backup unit.
Each lamp contains 12 long lasting, efficient ultra-bright white LEDs
Exit face is ililluminated by long-Life, high intensity, red or green LEDs
Remote capacity option available
Damp location rated
Easy to install, snap together design
Injection-molded, UL94 V-0 flame rated, high impact, thermoplastic housing
Available in white or black finishes
6” letter with a 3/4” stroke
Snap-in chevron type directional arrows
Universal J-Box mounting pattern, canopy included
120/277 VAC dual input
Short circuit, voltage surge, brown-out and low battery voltage disconnect protected
LED indicator light and push to test switch
Long life, maintenance-free NiCad battery
90 minute U.L. listed emergency run time
Application The Red/Green LED Exit Sign Combo with LED Lights is designed for all types of indoor exit sign applications from schools to offices to retail stores and more. A popular choice for all types of commercial exit sign and emergency light applications, the luminaries provide uniform radiance while consuming up to 5 watts of electricity entirely. If you're looking to mount on a surface area, this unit comes with the capability of being universally mounted. If you desire ceiling or wall mounting, this combo unit come single or double faced.
The Green LED Exit Sign Combo with LED Lights is popular for all types of commercial exit sign and emergency light applications. While supplying brilliant illumination, these bulbs only absorb less than 5 watts of electricity! This unit is can be universally mounted to any ceiling or wall. It comes with (2) E-X-I-T face-plates, a back-plate and surface canopy. Only requires AC power with dual voltage input (120/277).
External Specifications Entire unit is constructed from ABS thermoplastic, suitable for indoor use. Comes standard finished in white, optional black thermoplastic model available as well.
Internal Specifications Red LED Bulbs consume no more than 5 watts of electricity Sealed Lead Acid Battery (6 volt 4.5 amp) Green LEDs provide illumination while consuming less than 5 watts of electricity at all times. Features a sealed lead acid battery pack with the capacity of 6 volts.
Electrical Specifications Dual Voltage Operation (Additional available upon request) Low Voltage Battery Capacity AC Lockout (Prevents battery discharge)(Green)
Life Safety 101
UL Listed for Damp Locations
Warranty Red-3-Year Warranty. Green-All components are guaranteed for 5 years, with a separate 5 year warranty for the battery.
