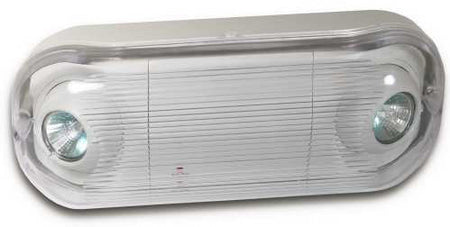

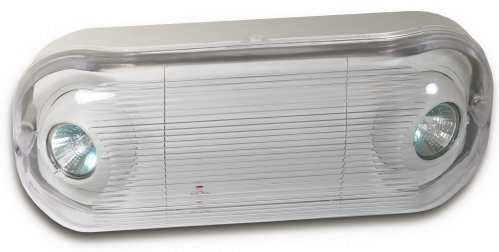

The WPEL is the most affordable wet location emergency light that we offer. The WPEL is designed for indoor or oudoor installation and features a fully gasket polycarbonate housing that protects the unit's electrical components from any contact with moisture. Powerful MR16 emergency lamps produce brilliant illumination that can be easily adjusted to cover a large area. A simple push button allows easy testing of the WPEL's battery backup system. This waterproof emergency light installs onto a variety of surfaces and utilizes 120 or 277v AC electrical power. Features a 6 volt 4.5 amp emergency light battery that provides 90 minutes of power. UL 924 Listed for the US.

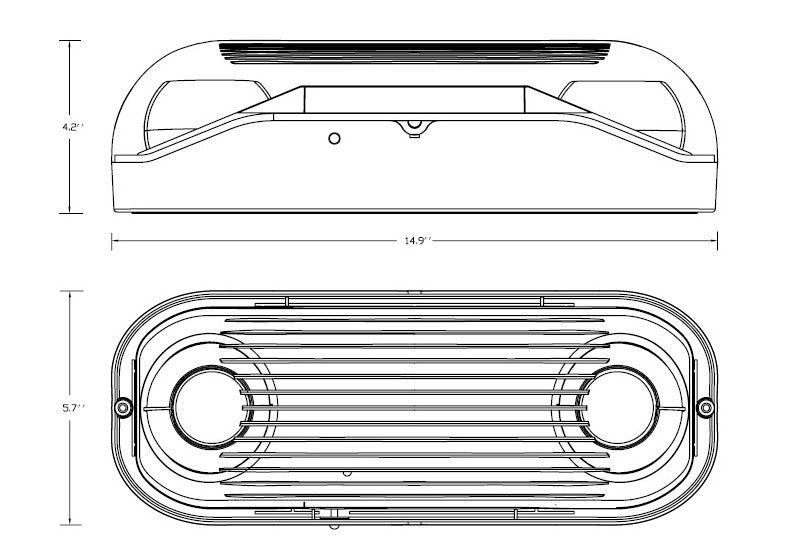

Wet Location Emergency Light Dimensions
Fiberglass housing is rate for oudoor and wet locations
Halogen MR16 lamps provide powerful illumination
Push-to-test button with LED charging indicator
UL 924 Listed for the United States
Application The WPEL wet location emergency light is suitable for installation into wet location environments that feature moisture, rain, and contact with other elements. The WPEL easily back mounts to junction boxes and normally inflammable surfaces..
Electrical Specifications 120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v.
Code Compliance UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.
Lifespan 8-10 year expected lifespan on all components except replaceable battery (five-year lifespan)
Technology Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.
Appeal Inexpensive and durable, this emergency light features rounded corners and compact MR16 halogen lamps that add to its aesthetic appeal.
Installation This emergency light is suitable for surface (wall and ceiling) installation. This model is suitable for indoor and oudoor wet location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and black(Common) wires for 120v AC connections and the red(277v) and black(Common) wires for 277v AC connections.
Warranty Five-year warranty on parts, five-year prorated warranty on battery.
