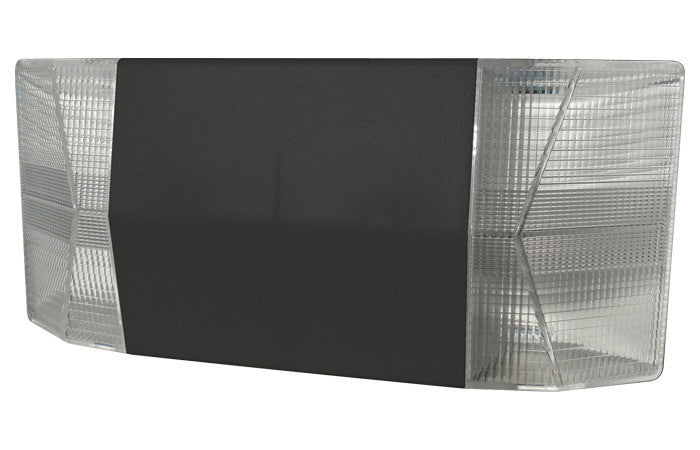

The Thermoplastic Emergency Lights features a low profile design and vandal resistant construction. The LP-B blends aesthetic appeal with durability. This emergency light features a thermoplastic housing with 2 incandescent lamps that are protected by a polycarbonate shield. A simple push button allows easy testing of the unit's battery backup system. The LP-B easily installs using 120 or 277v AC power. The LP-B is UL 924 Listed for the United States and is ideal for all types of indoor commercial installations.
A 90 minute battery backup system insures the operation of this emergency lighting fixture during power outages. A small button allows for easy testing of the battery backup system. The snap-together design makes installation simple and quick. Comes with a five year warranty. The design appeal of this fixture is coupled with an affordable thermoplastic housing, making this emergency light have an extremely high value rating.
- Fixed mount lamps create low profile
- Battery backup lasts 90 minutes
- Push-to-test button with LED charging indicator
- Also available with a black housing
- UL924 Listed for the United States
- 5 year warranty
The TEL-LP-W is suitable for all types indoor commercial use. This emergency light is popular for applications where a low profile look is desired. Popular for office, retail, and residential commercial use.External Specifications
The TEL-LP-W Series emergency light's housing is constructed from sturdy flame and corrosion resistant ABS thermoplastic. The LP-W comes ready to install with all necessary hardware and installation instructions. The back-plate easily installs onto walls and ceilings. This emergency lighting fixture comes standard finished in white and is also available in black. Fixed mount lamps are protected by a polycarbonate shield to be vandal resistant. A damp location rating and battery backup test button are standard on all emergency lights.Internal Specifications
High output incandescent lamps and a specially designed refractory lens assembly provides glare-free light distribution. Lamp Type: Incandescent - protected by polycarbonate shield. Lamp Rating: 6 volts, 5.4 watts. Lamp Life: 100 hours (expected average).Electrical Specifications
120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v.Code Compliance
UL924 Listed for the U.S. and Canada, CS860, NFPA Life Safety 101, UL Listed for Damp Locations.Warranty
Five-year warranty on parts, five-year prorated warranty on battery.Maintenance Profile
The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The emergency lamps are replaceable if broken or burnt out.Lifespan
8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).Options
There are no additional options for this model.Technology
Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.Appeal
The housing is also available in black.Overall Value
This low profile emergency light is the perfect fixture for most commercial interiors, an affordable price combined with an attractive design and reliable components.Installation
This emergency light is suitable for surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and black(Common) wires for 120v AC connections and the red(277v) and black(Common) wires for 277v AC connections.
