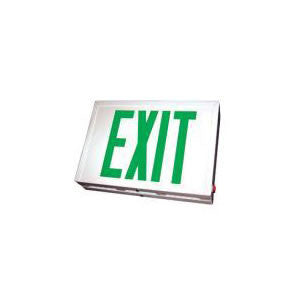

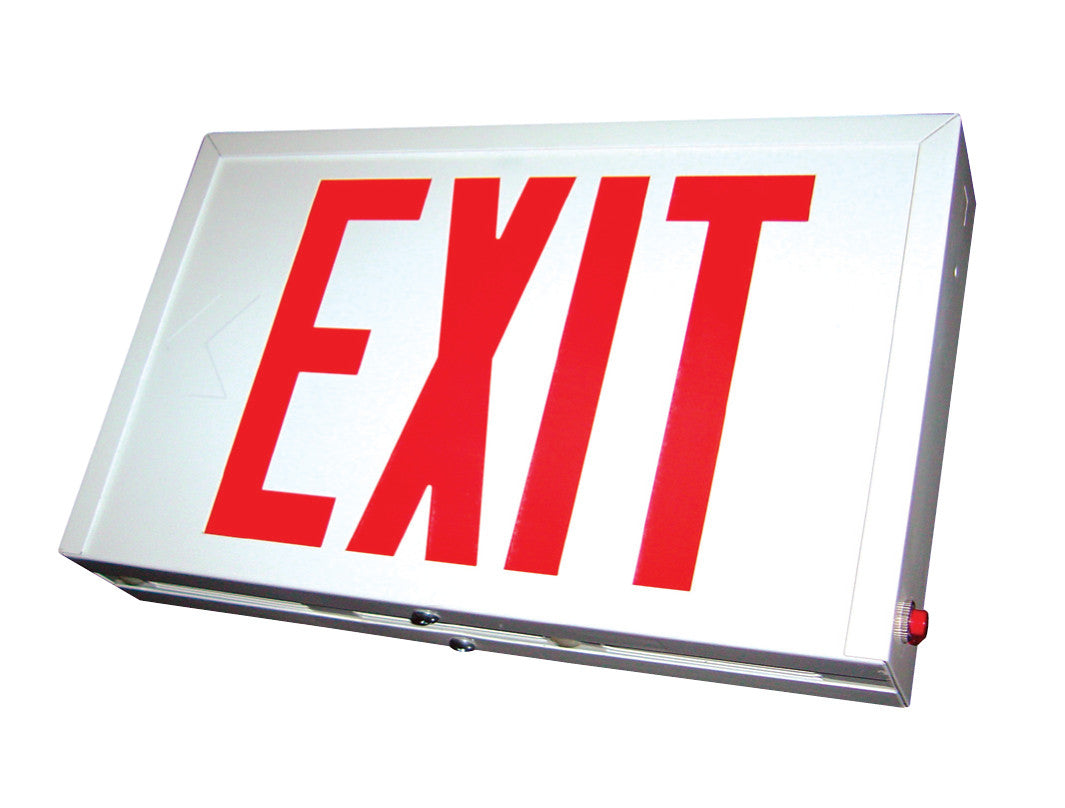

The Steel LED Exit Sign with Red/Green Letters features a heavy-duty 20 gauge welded steel enclosure with a white or black finish. Available in 6" letters with 3/4" stroke or 8" letters with a 1" stroke, high intensity LEDs provide a constant uniform, red or green, illumination. Attractive and easy to install, this series of exit signs offers only high quality LED illumination and internal electronics encased in a durable steel housing. Making the VEX-S Series ideal for any commercial, institutional, or industrial application.
Red/Green intensity LEDs
Constant uniform illumination
3/4" wide fully ililluminated letters
Color matched diffuser provides optimal light output
Mounting canopy included
Chevron style universal arrows
120/277V dual primary 60Hz input
Short circuit protection
Voltage surge protection
Solid-state, constant current type charger
Maintenance-free nickel cadmium battery
Low voltage disconnect eliminates deep discharge
E.T.L. listed 90 minute emergency run time, 12 hour recharge time
Application The strength and durability of the Steel LED Exit Sign with Red Letters is highly recommended in high abuse areas where it is imperative to have an operational exit sign available at all times.
External Specifications The Steel LED Exit Sign with Red Letters features an enclosure constructed from a rugged 20 gauge steel. With 6" letters with 3/4" stroke or 8" letters with a 1" stroke option, for greater visibility.
Internal Specifications Red or green high intensity LEDs provide a bright and clear illumination display for the exit sign. The LEDs last longer than conventional bulb signs, providing up to 100,000 hours of use without failure. LEDs are also excellent for minimizing energy consumption, starting at only 4 watts, and is a great maintenance-free solution.
Electrical Specifications 120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. The VEX-S Series provides a short circuit and voltage surge protection for the unit and also features protection from overcharging and brown-outs. The low voltage disconnect eliminates deep discharge.
Code Compliance The Steel LED Exit Sign with Red Letters is E.T.L. Listed and meets or exceeds the following: U.L. 924, N.E.C. requirements and N.F.P.A. 101.
Warranty The components for the Steel LED Exit Sign with Red Letters are guaranteed for 3 years with a separate 5 year pro-rated warranty on the battery. The warranty does not cover physical damage, abuse or acts of God. Manufacturer reserves the right to charge for such repairs if deemed necessary.
Appeal The heavy-duty, 20 gauge steel enclosure is designed to handle abuse for years. Offered with a white or black finish, it is ideal for almost any commercial application.
Overall Value The Steel LED Exit Sign with Red Letters provides durability and strength with a maintenance-free LED setup. This mode is a great value and it will make your facility code compliant for years to come.
Installation Interchangeable stencil face and/or back plate slide-fit flush into frame for optimum light seal. Fastening is done by means of a phillips head screw located in the center bottom frame. back-plate is supplied with a universal knockout pattern for quick, easy installation. Canopy is low-profile and offers simple installation for either top or side mounts.
