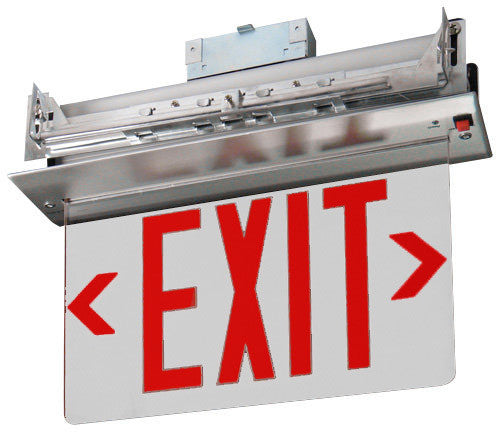

The EDGE Recessed Series Edge-Lit LED Exit Sign seamlessly combines safety and style. The fully recessed housing installs into your drywall or suspended ceiling and the only visible portion of the sign is the acrylic EXIT panel. Red or green letters are evenly ililluminated by efficient LEDs which are located within the recessed housing.
Edge-Lit exit signs are seen in all types of upscale commercial facilities throughout the country. The glowing acrylic EXIT panel is attractive and compliant; no longer will your exit sign draw away from the aesthetic appeal of your interior.
The EDGE Series offers upscale appeal at an attractive price. Compliance is guaranteed; all Edge-Lit exit signs are UL 924 Listed and compliant throughout the United States. This model features a 90-minute battery backup system for emergency operation during power outages. A push button allows for easy testing of the battery backup system.
The sign can be ordered to be single or double-sided. Double-sided models feature a mirrored insert which gives creates an optical illusion of a clear panel. Operates using 120 or 277v AC power. Damp location rated.
Edge Lit Exit Sign Dimensions
Attractive – Recessed housing creates seamless appeal and stylish design
Efficient - consumes less than 5 watts AC electricity at all times
Push-to-test button with LED charging indicator
Works for single and double face applications
Drywall or suspended ceiling installation
UL 924 Listed for the United States
Five year warranty
Application Recessed Edge Lit exit signs are ideal for indoor commercial applications. The recessed aluminum housing is designed for drywall and suspended ceiling applications. Requires 120 or 277 volt electricity. The recessed Edge Lit exit sign is the premier indoor exit sign choice.
External Specifications back-box and trim plate are constructed from aluminum and available in white, black, or a classic brushed finish. The panel is a high-grade acrylic that is laser-etched with the word "EXIT" in red.
Internal Specifications Edge Lit LED exit signs are extremely efficient. Red LEDs located within the housing provide illumination while consuming less than 5 watts of electricity at all times. Battery backup system features nickel-cadmium battery pack.
Electrical Specifications 120/277v AC dual-voltage operation is standard for any recessed edge lit exit sign. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.
Code Compliance UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.
Warranty Five-year warranty on parts, five-year prorated warranty on battery.
Maintenance Profile The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The nickel cadmium battery is replaceable.
Lifespan 8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).
Options There are no options for this model.
Technology Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.
Appeal Affordable construction and stylish design makes this exit sign ideal for almost any recessed commercial application.
Overall Value High value rating: this model offers an attractive, high end appeal for an affordable price.
Installation This Edge Lit LED exit sign is suitable for recessed ceiling installation. This model is suitable for indoor and damp location installations on drywall or suspended ceiling surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.
