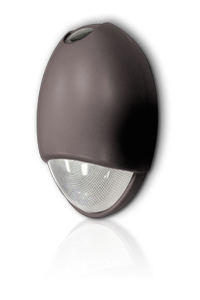

Outdoor teardrop LED Die Cast STD
Regular price
$134.99
Couldn't load pickup availability
Illumination
Long life, efficient, ultra bright white LED.
6W (2 LEDs x 3.0 watt) per unit.
Mirror-bright reflector and prismatic polycarbonate refractor.
Can be used as a Normally-ON or Normally-OFF light as well as on a switched circuit.
Electrical
Universal 120-277VAC voltage.
Charge rate/power "ON” LED indicator light and push-to-test switch for mandated code compliance testing.
4.8V long life, maintenance-free, rechargeable NiCd battery.
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Self-diagnostic test feature continually diagnoses units performance and tests system to ensure reliable operation and to meet electrical and life safety codes (Standard).
Field-selectable wiring allows for "AC” operation of the unit to be controlled using a wall-switch or a photocell or any other switching mechanism.
Mounting
Surface mount via easy connect back plate that fits most standard size junction boxes.
Universal K/O pattern on back plate for wall mount.
Threaded opening at the top of the enclosure for conduit mount.
Housing
Decorative, Low Profile, architectural design.
Die-cast aluminum housing.
Durable powder-coated finishes in white, black, nickel and dark bronze.
Sealed and gasketed.
Options
CW: Optional internal heater for extreme cold temperature applications (-20°C – 50°C).
PC: Unit features optional photocell technology that automatically responds to low exterior lighting levels in "AC" mode.
Long life, efficient, ultra bright white LED.
6W (2 LEDs x 3.0 watt) per unit.
Mirror-bright reflector and prismatic polycarbonate refractor.
Can be used as a Normally-ON or Normally-OFF light as well as on a switched circuit.
Electrical
Universal 120-277VAC voltage.
Charge rate/power "ON” LED indicator light and push-to-test switch for mandated code compliance testing.
4.8V long life, maintenance-free, rechargeable NiCd battery.
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Self-diagnostic test feature continually diagnoses units performance and tests system to ensure reliable operation and to meet electrical and life safety codes (Standard).
Field-selectable wiring allows for "AC” operation of the unit to be controlled using a wall-switch or a photocell or any other switching mechanism.
Mounting
Surface mount via easy connect back plate that fits most standard size junction boxes.
Universal K/O pattern on back plate for wall mount.
Threaded opening at the top of the enclosure for conduit mount.
Housing
Decorative, Low Profile, architectural design.
Die-cast aluminum housing.
Durable powder-coated finishes in white, black, nickel and dark bronze.
Sealed and gasketed.
Options
CW: Optional internal heater for extreme cold temperature applications (-20°C – 50°C).
PC: Unit features optional photocell technology that automatically responds to low exterior lighting levels in "AC" mode.
