Multi-Purpose 30W 2899 Lumens 100-277 voltage LED Area Light

The LEDMPAL series is a group of architectural LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the LEDMPAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted area lighting, and other outdoor lighting requirements.

Features:

• Available in 4000K (neutral white) and 5000K (cool white).
• Long-life LEDs provide 69,000 hours of operation with at least 70% of initial lumen output (L70).
• Delivers 2,899 lumens and 100 lumens per watt.
• Universal 100-277 AC voltage (50-60Hz) is standard.
• Die cast aluminum housing with durable, dark bronze powder coat finish, and a heat-resistant polycarbonate lens.
• Wireway enclosure is sealed with a water-tight, silicon rubber gasket.
• Effective projected areas (EPA's) are: Front = 0.09 sf; Side = 0.07 sf; and Face = 0.29 sf.
• Easy installation in new construction or retrofit applications.

Specifications:

• Color Temperature: 4000k, 5000k
• CRI 1: >80
• Luminaire Lumens: 2,899
• Luminaire Watts: 30
• Lumens Per Watt: 100
• Input Voltage: 120-277 (50-60Hz)
• Input Current (A): 120V: 0.24, 240V: 0.12, 277V: 0.10
• Power Factor: >90%
• THD3: <20%
• L70Hours4: 69,000

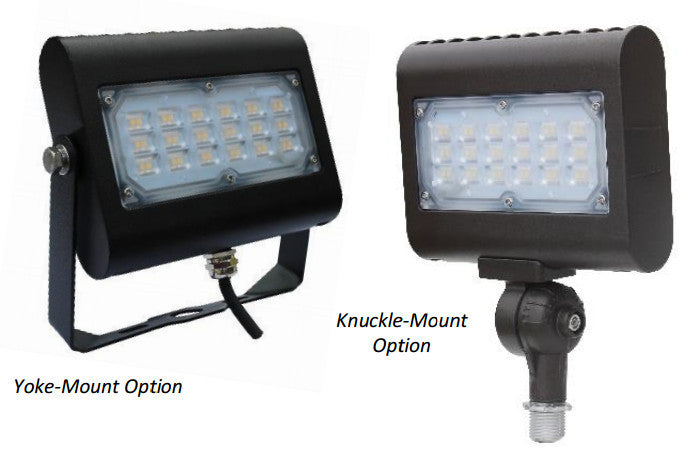

Mounting Options:

• Yoke-mount option provides secure attachment to flat surfaces.
• Aluminum die-cast knuckle-mount option is installed on a junction box. Incudes ½” NPS stem with locking nut.

Warranty & Listings:

• cULus listed for wet locations (-30°C to 40°C / -22°F to 104°F)
• IP65 rated.
• DLC approved.
• Complies with FCC Part 15.
• Complies with EN61000-4-5, surge immunity (1kV).
• Complies with EN61000-4-2 level 2 electrostatic discharge (4kV).
• Tested to UL1598, UL8750 and IEC60598 safety standards.
• 5-year warranty
