WOW0821240209BLCLJLLLML

LED Wall Pack Mini Polycarbonate 20 & 30 Watts 120-277 Voltage


Your Price:
$64.99

Quantity:

Buy in bulk and save
Typically ships within 2-3 business days.

4 Great Reasons To Buy From Us:

  • Image of Image of Image of
  • Image of Image of Image of
  • Image of Image of Image of
  • Image of Image of Image of

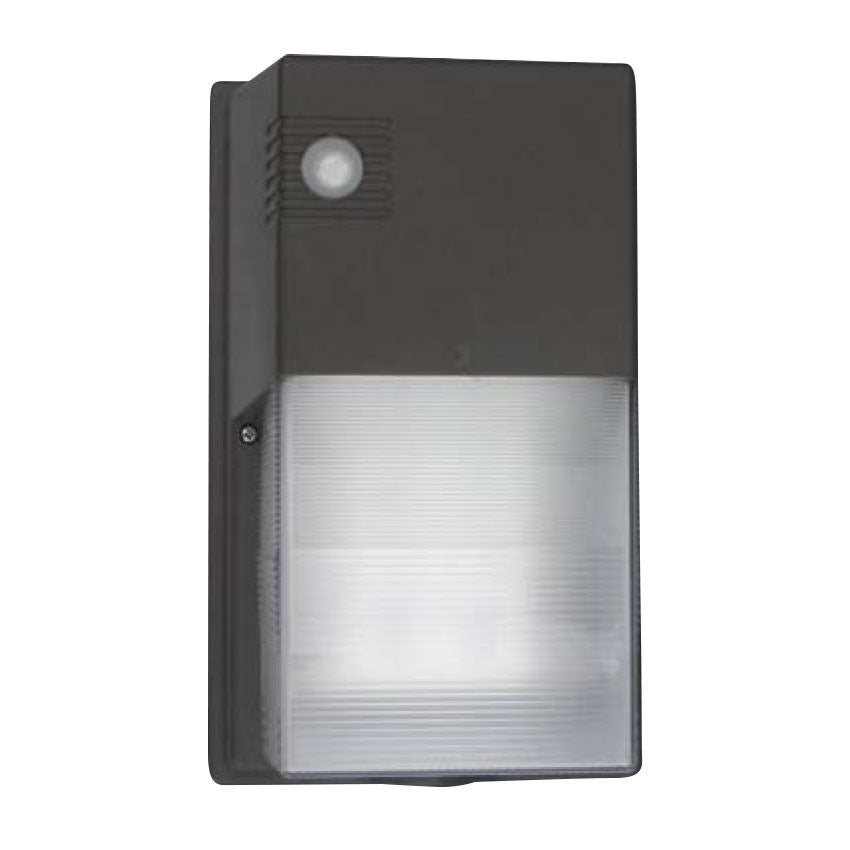

The LEDWPPC wall pack series is an economical solution for outdoor perimeter and area lighting. With a built-in photocell, and a polycarbonate housing and lens, the LEDWPPC is a versatile and durable outdoor luminaire. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

Features:
  • Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
  • LEDWPPC20W delivers 1,031 lumens and 45 lumens per watt (LPW).
  • LEDWPPC30W delivers 2,465 lumens and 85 lumens per watt (LPW).
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • Built-in, button-type photocell (120 AC voltage only).
  • Polycarbonate housing with a painted, die cast aluminum back plate, and a seamless gasket to prevent leaks.
  • Fluted, polycarbonate lens for even light distribution.
  • Easy installation in new construction or retrofit

Specifications:
  • Color Temperature: 4000k , 5000k
  • CRI 1: >70
  • Luminaire Lumens: 1,031, 2,465
  • Luminaire Watts: 20, 30
  • Lumens Per Watt: 45, 85
  • Input Voltage: 120-277 (50-60Hz)
  • Input Current (A): 120V: 0.19, 0.24, 240V : 0.10, 0.12, 277V : 0.08, 0.10
  • Power Factor: >90%
  • THD3: <20%

Warranty & Listings:
  • cULus listed for wet locations (-20°C to 40°C / -4°F to 104°F).
  • IP54 rated.
  • Complies with FCC Part 15, Class B.
  • 5 year warranty
