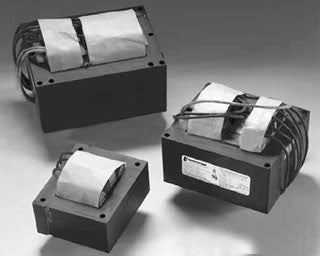

Home » M70TRILC3M-502K - 1 Lamp - 70W Metal Halide HID Ballast Kit - 120/277/347v - Core&Coil
M70TRILC3M502K 1-70W MH M98 TRI 60Hz C&C GC Boot
M70TRILC3M502K 1-70W MH M98 TRI 60Hz C&C GC Boot
Universal

M70TRILC3M-502K - 1 Lamp - 70W Metal Halide HID Ballast Kit - 120/277/347v - Core&Coil

In stock
SKU: M70TRILC3M502K
$64.16

Got questions?

Give us a call 800-847-1955!

Features
  • Type: HID Core & Coil
  • Circuit Type: HX-HPF
  • Number of Lamps: 1
  • Lamp Type: 70W Metal Halide
  • Input Voltage: 120/277/347V
  • Frequency: 60HZ
  • Input Power: 91W
  • Maximum Input Current: 1.85/0.8/0.65A
  • Nominal Open Circuit Voltage: 260V
  • Fuse Rating: 4/2A

Specifications
  • Contents: Ballast, Capacitor
  • Input Voltage: 120/277/347 V
  • Input Current: 1.7/0.78/0.6 Ampere
  • Input Power: 95 W
  • Frequency Rating: 60 HZ
  • Lamp Type: Metal Halide
  • Lamp Wattage: 70 W
  • Circuit Type: HX-HPF
  • ANSI Code: M98 (Medium Base)
  • Minimum Starting Temperature: -30 DEG C
  • Size: 3.938 INCH L X 2.8 INCH W X 2.812 INCH H
  • Approval: UL, CSA
  • Additional Information: Package Type Kit
