LED 2x4 Troffer Magnetic Retrofit Kit - 30 Watt - 3 Strip - 3340 Lumens
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
LED 2x4 Troffer Retrofit Kit
3 - 42" LED strips and 1 LED driver, 30 watt delivers 3340 lumens of 4000K or 5000K light and features exceptional efficacy.
Features
- Watts: 30.0
- Lumens: 3340
- Efficiency (Lumens/Watt): >119 lm/w
- Voltage: 90-277v, 50- 60 Hz
- Dimensions: Retrofits 2'x4' Troffer/Strip Fixture
- Hours: > 50,000
- CRI: 80>
- Led Strips: 3x42"(Magnetic)
- Led Driver: 1 (Magnetic) Solid State
- Color: 4000K, 5000K
- Dimming: 0-10V Dimming
- Operating Temp: -40F-+140F
- Listings: cULs, DLC Premium Listed, FCC
- UL1598 & UL1598C
- Warranty: 5 Year

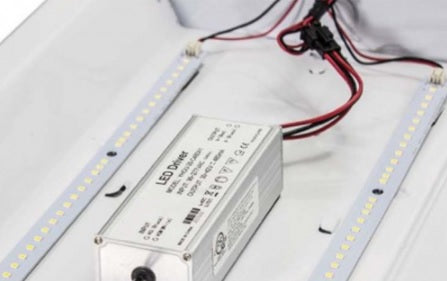

The LED strips and the driver are MAGNETIC backed, so they literally attach themselves to the troffer body without the need to drill holes or screws in. This product is perfect for do-it-yourself lighting projects! The high efficiency driver and LED strips give much higher lumens per watt and overall lower system wattage than relamping a T8 fixture with LED Tubes.
This retrofit kit installs in 3 or 4 minutes with only your bare hands. Just pop off the ballast cover, disconnect power from the ballast, connect power to the LED driver, and plug in the LED strips. It is that Simple!
The special thermally conductive magnet attaches the kit both physically and thermally to the troffer or strip light, allowing for easy heat dissipation away from the components. The entire body of the troffer becomes the heat sink for the strips, making them operate extremely cool, which dramatically extends their lifespan.
Additional information
Retrofit Kits come with (2) screw holes, (2) #8 screws and grommets if mechanical attachment is necessary. Sticker included in the driver box to be placed on fixture after retrofitting.
