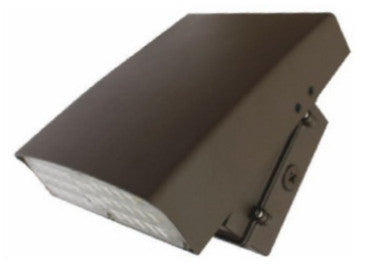

LED 80W and 120W 100-277 Voltage Adjustable Full Cutoff Wall Pack

The ELEDWPCA series is a contemporary, commercial-grade area luminaire. It features a heavy-duty, spring-loaded hinge, which provides the flexibility of focusing light near the mounting surface or projecting light forward. With a die cast aluminum housing and a polycarbonate lens, the ELEDWPCA series will stand up to many years of punishing environmental conditions. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID area lights.

Features:

• Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures
• Long-life LEDs provide 69,000 hours of operation with at least 70% of initial lumen output (L70)
• LEDWPCA80W delivers 8,871 lumens and 110 lumens per watt (LPW) at both 3000k & 4000k, and 9,241 lumens and 115 LP Wat 5000k
• LEDWPCA120W delivers 13,949 lumens and 112 lumens per watt (LPW) at both
• Heavy-duty,spring-loaded hinge providesthe flexibility of focusing light near the mounting surface or projecting light forward
• Universal 100-277 AC voltage (50-60Hz) is standard
• Watertight, compression-type electrical connectors prevent moisture intrusion
• Die cast aluminum housing with durable, dark bronze, powder coat paint
• Durable, UV-resistant polycarbonate lens
• Removable, threaded plugs for side attachment of ½” rigid electrical conduit, or for button photocells
• Easy installation in new construction or retrofit

Specifications:

• Color Temperature: 3000k, 4000k, 5000k
• CRI 1: >80
• Luminaire Lumens: 8,871, 9,241, 13,949, 14,227
• Luminaire Watts: 80, 120
• Lumens Per Watt: 111, 116, 113
• Input Voltage: 120-277 (50-60Hz)
• Input Current (A): 120V: 0.67, 1.04, 240V : 0.34, 0.52, 277V : 0.29, 0.45
• Power Factor: >90%
• THD3: <20%
• L70Hours4: 69,000

Vertical Adjustability:

• Heavy-duty, spring-loaded hinge provides vertical adjustability of the luminaire housing up to 65
• Adjustability provides for a range of lighting e ects from full-cuto downlight to forward throw
• Knurled notches securely retain rotated position even in demanding environments.

Warranty & Listings:

• cULus listed for wet locations (-20°C to 40°C / -4°F to 104°F)
• IP65 rated
• Complies with FCC Part 15 class B
• Complies with EN61000-4-5, surge immunity (1kV)
• 5-year warranty
