LED 4FT 4000K & 5000K 45Watt Wrap Around 5K DIM MV - DLC

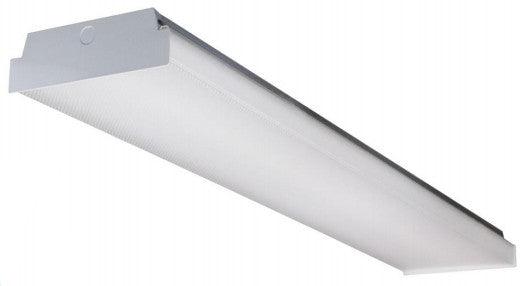

The BWALED4FT is a 1’ x 4’ LED wrap luminaire, which is designed as a direct replacement for fluorescent wraps. The BWALED4FT is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

Features:

• Available in 4000k (neutral) and 5000k (cool white) color temperatures.
• Long-life LEDs provide 52,000 hours of operation with at least 70% of initial lumen output (L70).
• Provides 4,195 luminaire lumens (93 lumens per watt) at both 4000k and 5000k.
• Uniform illumination with no visible LED pixelation.
• Universal 100-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.95.
• Total harmonic distortion < 10%.
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.

Specifications:

• Color Temperature: 4000K, 5000K
• CRI 1: >80
• Luminaire Lumens: 4,195
• Luminaire Watts: 45
• Lumens Per Watt: 93
• Input Voltage: 120-277 (50-60Hz)
• Input Current (A):
• 120V: 0.38
• 240V: 0.19
• 277V: 0.16
• Power Factor: > 95%
• THD2: < 10%
• L70Hours: 52,000

Warranty & Listings:

• ETL approved for damp locations and to relevant U.L. standards DLC approved.
• Complies with FCC Part 15, Class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
• 5-year warranty of all electronics and housing.
