Iota I-420-EM-A Emergency Ballast

The I-420-EM-A from IOTA Engineering is a UL Listed fluorescent emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I-420-EM-A switches to the emergency mode and operates one or two of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can. The I-420-EM-A can be used with most 10W-57W twin, triple, quad tube, 2D and Straight 4-pin compact fluorescent lamps, with an initial output of up to 1100 lumens for one or two lamps. The I-420-EM-A utilizes AC output to ensure compatibility with new lamp technologies, and features lamp selector leads for optimizing light output for designated lamp types. The I-420EM-A provides flex for wiring to the fixture or ballast compartment and a single-piece test switch and charge indicator for installation in a standard switch box for mounting adjacent to the fixture. The I-420-EM-A is suitable for use in damp locations.

LAMPS OPERATED: 10-57 Watt 4-pin Rapid Start Compact Lamps
including Twin, Triple, Quad Tube, 2D & Straight

• Will cold start and operate all specified lamps
• Long life high temperature recyclable Ni-Cad battery
• Galvanized steel case

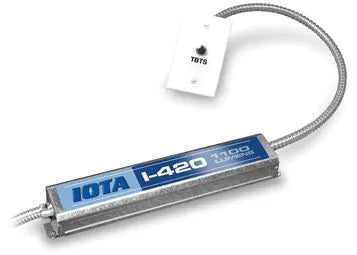

• Includes test switch and charge indicator accessory kit
• For use with switched or unswitched fixtures
• 5-Year Warranty
• Suitable for use in damp locations
• Selectable lamp leads optimize light output for desired lamp type
• Meets or exceeds all National Electrical Code and Life Safety Code Emergency Lighting Requirements
