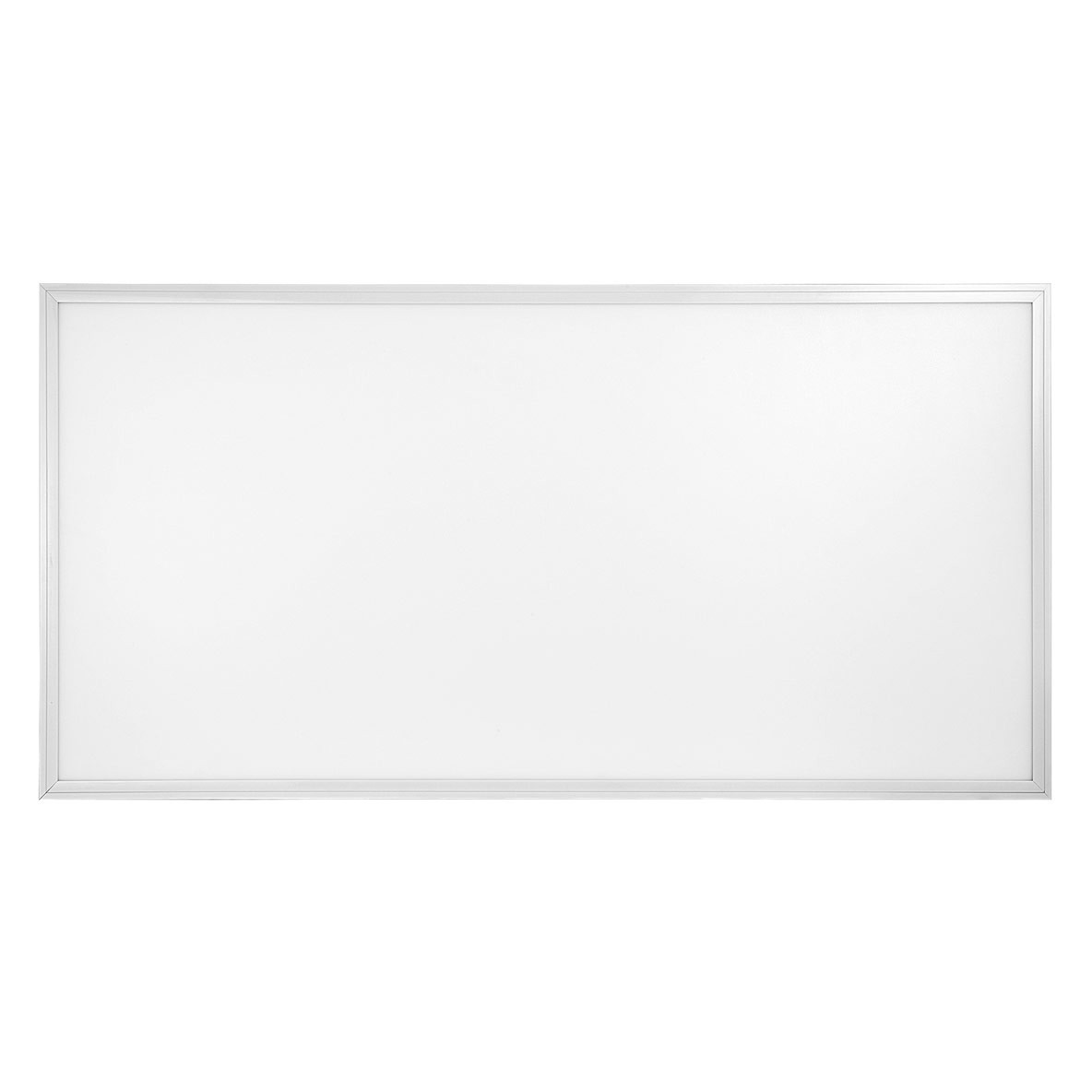

35W - 2X4 LED Flat Panel - DIM - 4000k or 5000k - 120/277v - DLC Premium

SKU:
Weight: 13.6 lbS
Review
FAST SHIPPING FOR ITEMS IN STOCK*
FAST SHIPPING FOR ITEMS IN STOCK*
MONEY BACK 100% GUARANTEE
MONEY BACK 100% GUARANTEE
30 DAYS HASSLE-FREE RETURNS
30 DAYS HASSLE-FREE RETURNS
LOWEST PRICE GUARANTEE
LOWEST PRICE GUARANTEE

The premium-performance, ultra-thin, edge-lit LED panel series offers industry-leading lumens per watt (LPW), and is DLC Premium listed. This fixture is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.



Emergency back up available. Field install only.



FEATURES:

  • Available in 4000k (cool white) and 5000k (bright white) color temperatures
  • Long-life LEDs provide 81,000 hours of operation with at least 70% of initial lumen output (L70)
  • Provides 4,516 luminaire lumens (124 lumens per watt, LPW) at 3000k, 4,589 luminaire lumens (126 LPW) at 4000k, and 4,637 luminaire lumens (128 LPW) at 5000k
  • Uniform illumination with no visible LED pixilation
  • Universal 120-277 AC voltage (50-60Hz) is standard
  • 0-10vdc dimming capability is standard
  • Power factor > 0.90
  • Total harmonic distortion < 20%
  • Color rendering index > 80
  • Aluminum housing
  • PMMA (polymethyl methacrylate) acrylic lens with light guide panels for optimal light distribution and efficiency
  • Easy installation in new construction or retrofit
  • Standard earthquake clips provide secure installation in grid ceilings.
  • Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. Optional surface mounting (option SMK)

SPECIFICATION

  • Color Temperature: 4000k, 5000k
  • CRI 1: > 80
  • Luminaire Lumens: 4,589, 4,637
  • Luminaire Watts: 35
  • Lumens Per Watt: 126, 128
  • Input Voltage: 120-277
  • Input Current (A): 120V: 0.30, 240V: 0.15, 277V: 0.13
  • Power Factor: > 90%
  • THD2: < 20%
  • L70 Hours3: 81,000

SURFACE MOUNTING KIT

  • Optional surface mounting kit provides for installation on plaster or other hard ceilings

WARRANTY & LISTINGS
  • UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -25°C to 50°C (-13°F to 122°F)
  • DLC Listed and Labeled
  • Complies with FCC Part 15, part B
  • 5-year warranty
