LED Round Wet Location Highbay - 100W - 5000k - 120/277v - DLC

In stock
Regular price $168.99

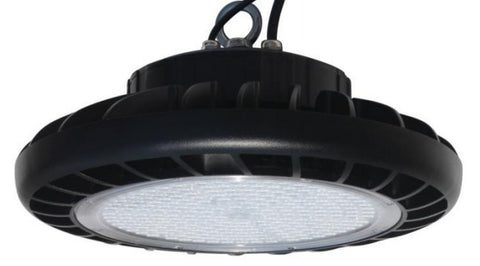

This is a round LED high bay luminaire, which is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a die cast aluminum housing and poly-carbonate lens, it provides durability and high performance. High-efficacy, long-life LED's provide both energy and maintenance cost savings compared to traditional, HID high bays.

  • Available in 5000k (cool white) color temperatures.
  • Long-life LEDs provide 69,000 hours of operation with at least 70% of initial lumen output (L70).
  • Provides 13,092 lumens & 132 lumens per watt at 5000k.
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • Watertight, compression-type electrical connectors prevent moisture intrusion.
  • Optional polycarbonate junction box attaches to the luminaire housing, and provides a convenient mounting option for occupancy sensors, or for making electrical connections at the luminaire.
  • Optional polycarbonate occupancy sensor mount attaches to junction box knock-out (½ ” NPS), and provides extension from the housing for effective occupancy sensor placement.
  • 0-10vdc dimming drivers are standard.
  • Painted die cast aluminum housing.
  • Easy installation in new construction or retrofit

  • Color Temperature: 5000k
  • CRI 1: >80
  • Luminaire Lumens: 13,092
  • Luminaire Watts: 100
  • Lumens Per Watt: 132
  • Input Voltage: 120-277
  • Input Current (A): 120V: 0.83, 1.23, 1.85, 240V: 0.42, 0.62, 0.93, 277V: 0.36, 0.53, 0.80
  • Power Factor: >90%
  • THD3: <20%
  • L70Hours4: 69,000

Warranty & Listings:
  • cULus listed for wet locations in ambient temperatures from
  • -20°C to 40°C (-4°F to 104°F).
  •  IP65 rated for ingress protection.
  •  IK10 rated for protection from external impacts.
  •  DLC standard approved.
  •  Complies with FCC Part 15, class B.
  •  Complies with EN61000-4-5, surge immunity protection (4kV).
  • 5-year warranty
