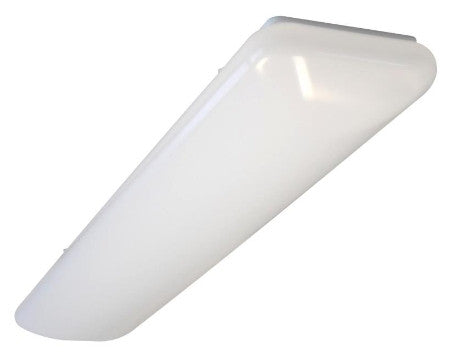

The BCLDLED4FT is a 1’ x 4’ LED cloud luminaire. It is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals, stores, and residences, and is the perfect choice for both new onstruction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
Long-life LEDs provide 52,000 hours of operation with at least 70% of initial lumen output (L70).
Provides 3,691 luminaire lumens (95 lumens per watt) at both 4000k and 5000k.
Uniform illumination with no visible LED pixelation.
Universal 100-277 AC voltage (50-60Hz) is standard.
0-10vdc dimming capability is standard.
Power factor > 0.95.
Total harmonic distortion < 10%.
Color rendering index > 80.
Steel housing and acrylic lens.
Easy installation in new construction or retrofit..
Color Temperature: 4000k, 5000k
CRI1: > 80, > 80
Luminaire Lumens: 3,691, 3,691
Luminaire Watts: 39, 39
Lumens Per Watt: 95, 95
Input Voltage: 120-277(50-60Hz), 120-277(50-60Hz)
Input Current (A):
120V: 0.33, 0.33
240V: 0.16, 0.16
277V: 0.14, 0.14
Power Factor: > 95%, > 95%
THD2: < 10%, < 10%
L70Hours: 52,000, 52,000
Warranty & Listings
ETL approved for damp locations and to relevant U.L. standards (-30°C to 50°C / -22°F to 122°F).
Complies with FCC Part 15, Class A.
Complies withIEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
