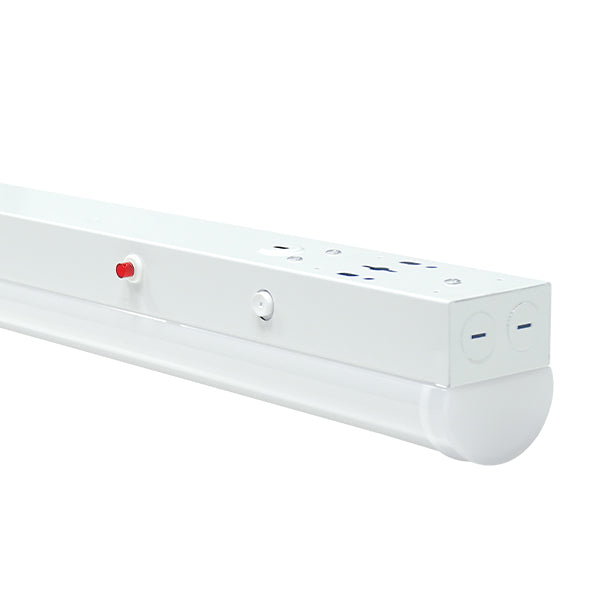

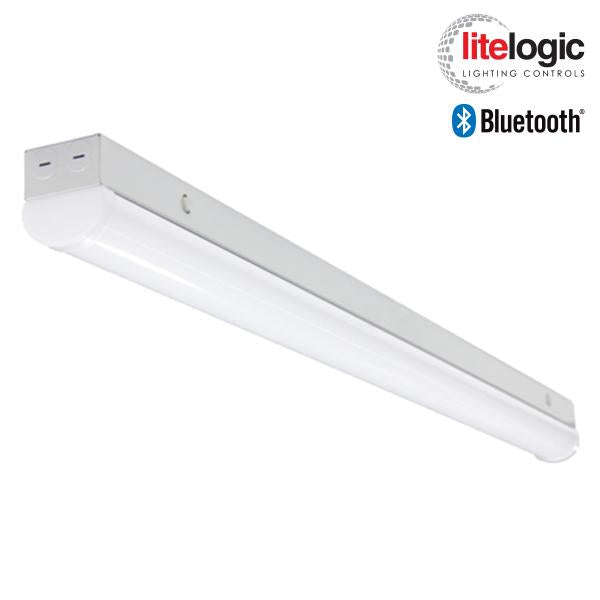

27W LED 3FT Lensed Strip - 5000K - DIM - 120/277v - DLC

This series is a group of 2’, 3’, 4’ and 8’ covered strip lights, which are designed as direct replacements for fluorescent strips. This series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

Features:

• Available in 5000k (bright white) color temperatures.
• Long-life LEDs provide 52,000 hours of operation with at least 70% of initial lumen output (L70).
• Provides 3,327 luminaire lumens (111 LPW) at 5000k.
• Uniform illumination with no visible LED pixelation.
• Universal 100-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit

specifications:

• Color Temperature: 5000k
• CRI 1: > 80
• Luminaire Lumens: 3,327
• Luminaire Watts: 30
• Lumens / Watt : 111
• Input Voltage: 120-277(50-60Hz)
• Input Current (A):
• 120V: 0.25
• 240V: 0.13
• 277V: 0.11
• Power Factor: > 90%
• THD2: < 20%
• L70Hours: 52,000

Warranty & Listings

• ETL approved for damp locations and to relevant U.L. standards (-30° C to 50° C / -22° F to 122° F).
• DLC approved.
• Complies with FCC Part 15, Class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD)
• 5-year warranty of all electronics and housing
