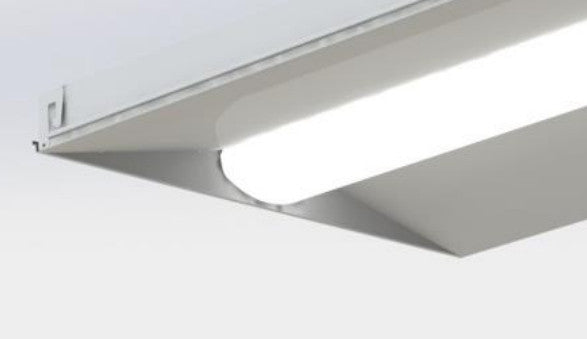

The BCBLED24 is a 2’ x 4’ LED center basket luminaire, which is designed as a direct replacement for 2’ x 4’ fluorescent luminaires installed in grid ceilings. The BCBLED24 is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
Long-life LEDs provide 52,000 hours of operation with at least 70% of initial lumen output (L70).
Provides 4,758 luminaire lumens (99 lumens per watt) at both 4000k and 5000k.
Uniform illumination with no visible LED pixelation.
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10vdc dimming capability is standard.
Power factor > 0.90.
Total harmonic distortion < 20%.
Color rendering index > 80.
Steel housing and acrylic lens.
Easy installation in new construction or retrofit. Housing fits in standard 2’ x 4’ grid ceilings.
Color Temperature: 4000k
CRI 1: > 80
Luminaire Lumens: 4,758
Luminaire Watts: 48
Lumens Per Watt: 99
Input Voltage: 120-277(50-60Hz)
Input Current (A): 120V: 0.40, 240V: 0.20, 277V: 0.17
Power Factor: > 90%
THD2: < 20%
L70 Hours3: 52,000
WARRANTY & LISTINGS:
ETL approved for damp locations and to relevant U.L. standards (-30 C to 50 C / -22 F to 122 F).
Complies with FCC Part 15, Class A.
Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
