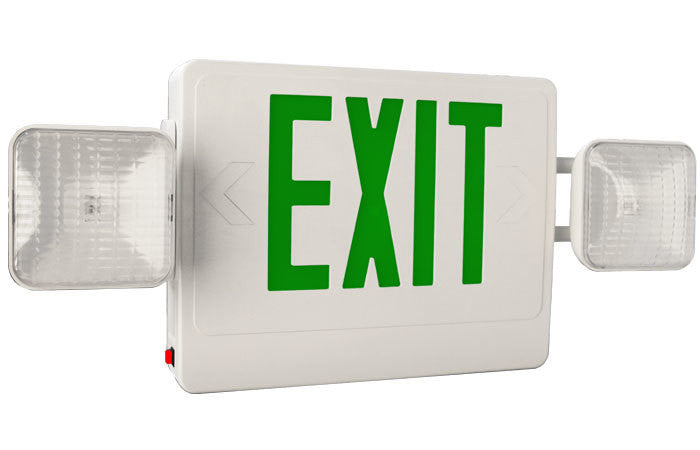

The EXIT-COMBO Series Thermoplastic LED Exit Sign with Emergency Lights combines an efficient LED exit sign with reliable emergency lamps. Beginning at less than $40 per unit, the EXIT-COMBO Series makes being compliant affordable and simple. Only one electrical connection is required when installing an emergency exit combo. Installing an exit sign and separate emergency light requires two electrical connections and maintenance duties for two battery backup systems; eliminate this hassle by purchasing a combo exit sign with lights.
Quality is not sacrificed for a lower bottom line, all EXIT-COMBO Series exit signs are UL 924 Listed for the United States; they are fire and building code compliant across the country. The EXIT portion of the combo is always ililluminated whereas the emergency lamps only ililluminate when power is lost. The battery backup system is what provides power for the unit when AC power is lost. This model features a 90-minute battery backup system for emergency operation of the exit sign and the emergency lights. A push button allows for easy testing of the battery backup unit.
Combines 2 emergency fixtures into one unit
Efficient - LED technology consumes less than 5 watts electricity
Push-to-test button with LED charging indicator
Works for single and double face applications
UL924 Listed for the United States
Application The EXIT-COMBO Series is designed for all types of indoor exit sign applications from schools to offices to retail stores and more. The EXIT-COMBO Series is popular for all types of commercial exit sign and emergency light applications. Green LEDs provide uniform illumination while consuming less than 5 watts of electricity at all times. The EXIT-COMBO Series comes ready for "universal" configuration, meaning it comes with two EXIT face-plates, a back-plate, and mounting canopy. The EXIT-COMBO Series can be used for single and double-faced applications and is suitable for top or back surface mounting configurations. Operates using 120 or 277v AC power. Damp location rated.
External Specifications Entire unit is constructed from ABS thermoplastic, suitable for indoor use.
Internal Specifications Green LEDs provide illumination while consuming less than 5 watts of electricity at all times. Battery backup system features 6 volt 4.5 amp sealed lead acid battery pack.
Electrical Specifications 120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.
Code Compliance UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.
Maintenance Profile The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The 6 volt 4.5 amp sealed lead acid battery is replaceable.
Lifespan 8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).
Technology Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.
Appeal Affordable construction and design makes this exit sign ideal for almost any commercial application.
Installation This thermoplastic exit sign is suitable for surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.
Warranty Five-year warranty on parts, five-year prorated warranty on battery.
