Application
The Aluminum Exit Sign is used indoors in any type of commercial application. It is sturdy and attractive, making it a versatile sign for many interiors.
External Specifications
Housing is made from die-cast aluminum and brushed to a high-end finish. face-plates snap on and off for easy installation and maintenance requirements. Push to test button located on side of unit. Aluminum mounting plate allows for top and side mounting.
Internal Specifications

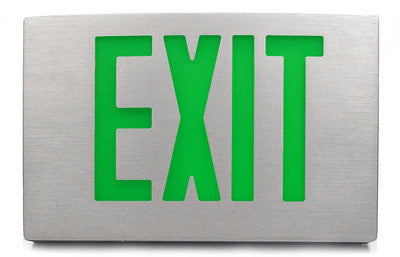

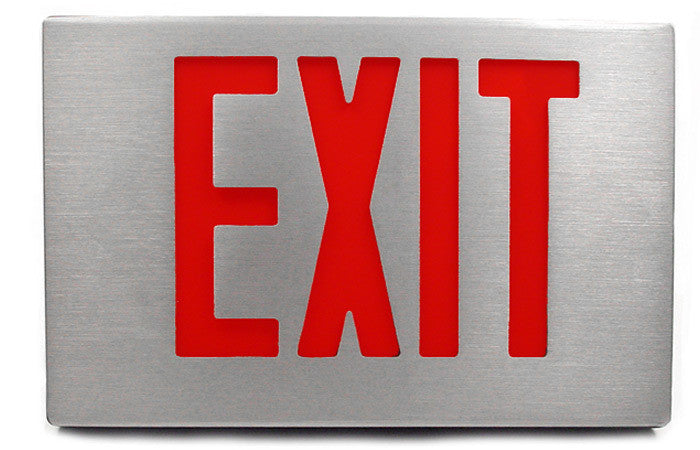

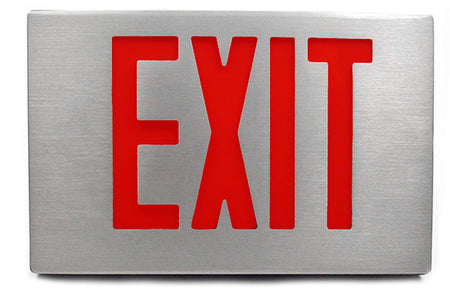

Red or green LEDs located within the housing provide illumination while consuming less than 5 watts of electricity at all times. Battery backup system features nickel-cadmium battery pack that operates for a minimum 90 minutes after power loss.
Electrical Specifications
120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.
Code Compliance
UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.
Maintenance Profile
The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The nickel cadmium battery is replaceable.
Lifespan
8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).
Technology
Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.
Appeal
Combination of durability and high-end appeal create a desirable exit sign for many types of applications.
Installation
Aluminum LED exit signs are suitable for surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.
Warranty
Five-year warranty on parts, five-year prorated warranty on battery.
