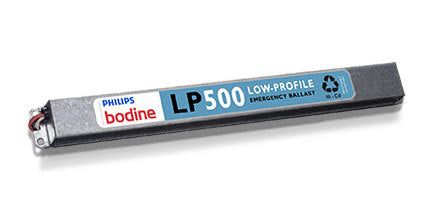

Bodine LP500 Emergency Ballast 400-700 Lumens - Low Profile

In stock
SKU: LP500 Bodine
Regular price $131.89

Product Description:
In the event that your facility’s AC power unexpectedly shuts down, you want to be prepared. Our LoPro Bodine Emergency Ballast will ensure that your operation will not be left out totally in the dark.

The LP500 model is low profile emergency ballast that works with any standard device to help transform linear fluorescent tubes to emergency lighting. The ballast comes with a NiCad battery and charger and inner circuitry all in one compact pack. The battery is maintenance free and is rechargeable for 24 hours.

Our Bodine ballast makes it mark once the lighting system’s AC power goes out, then it immediately switches to emergency mode and provide lumination for up to 90 minutes of time. Once power is restore, and then the device automatically shifts to its initial stage.  In addition, there will be a time delay no more than 5 seconds before regular order is restored, this is to prevent any electrical wire tripping.

Features:
Open circuit design
One lamp emergency
illumination for 4-pin fluorescent lamps (without integral starter)
End-of-lamp-life compatible
Universal Input Voltage
Illumination Time: 90 minutes
Initial Output: 300 - 750 Lumens
Dual Input Voltage: 50 or 60 Hz, 120/277 VAC
AC Input Current: 70 mA
AC Input Power Rating: 5.5 Watts
Operating Temperature: Not below 0°C(32°F)
Recharge Time: 24 Hour

Application:
The LP500 will not affect normal lamp operation but in the case of an emergency, it will provide up to 90 minutes of light for your indoor or outdoor facility. It includes a maintenance-free NiCad battery, a charger with test switch (LED light indicator), and electrical circuit board. This ballast is also great for mounting within sealed and gasketed fixtures.

External Specifications:
This compact sized ballast only weights 1.6 lbs and features a vertical and horizontal mounting center. There is also a test switch that features a LED indicator light to signal if charged.

Electrical Specifications:
It is UL Component compliant for factory installation while having an initial lumen output in the range of 400-700. The device’s voltage capacity is universal 120/277V with AC wattage input of 1.5.

Dimensions:
Weight: 2.1 lbs (0.95 kg)
Length: 18.5"
Width: 1.18"
Height: 1.00"

Compliance:
UL 924 (‘Emergency Lighting and Power Equipment)
Life Safety Code (NFPA–LSC)
National Electrical Code (NEC)
UL Listed for 90-minute requirements

If you’re not sure whether or not this ballast is the right one for your fluorescent lighting fixture, contact a member of our expert staff immediately!
