Imagine what could happen if the power transformer in your facility short circuits and leaves you and your customers in the dark. With the prospect of being in total darkness, you run the risk of jeopardizing the safety of your patrons, family, employees, and yourself. It could take hours to fix a transformer while you continue to be rendered without power. Avoid this possible situation by fitting your lighting system with our Bodine brand electronic ballast.

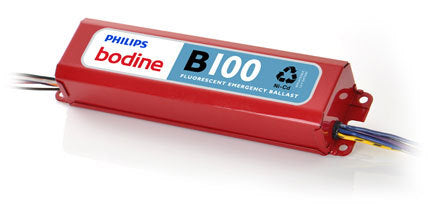

During a blackout, the B100 model immediately switches to the emergency mode, while operating CFL and linear fluorescent one lamp fixture at a reduced lumen output for a minimum of backup time 90 minutes. When AC power supplies restores, B100 then switches back to charging mode. It's also damp location rated so, it can be used outdoors as well.
One lamp operation in emergency mode
illumination output 350 to 450 lumens
Illumination Time: 90 minutes
"A" rated Sound Operation
Approved for damp location
Min/Max temp : 32°F/122°F (for damp location)
Min/Max temp : 32°F/131°F (for dry locations)
Compatible with most electronic, standard, energy-saving and dimming AC ballasts
Our B100 ballast is compatible with an existing installed lighting units such as, T8-T12 linear fluorescent and 4 pin long compact fluorescent. Each side has a mounting base hole for a much simpler installation process.
Constructed from 22 gauge metallic housing with red enameled color that protects from corrosion or rust. On each linear side, there are mounting base hole and wire leads for strew-free installation.
Wattage Capacity 2.5
Recharge Time of 24 Hours
Operating voltages, Universal 120- 277V, Frequency 60 Hz
AC Operating Current: 300 mA
Maintenance free Ni-Cd batteries (90 min.backup time)
Test switch : single pole
Charging indicator LED
Illumination output of 350 to 450 lumens
Weight: 2.1 lbs
