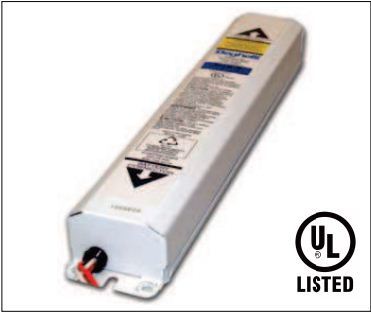

Beghelli LUCE-9S Emergency Ballast 1300 Lumens - CFL and T5
Regular price
$257.00
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Product Description:
Slim fit doesn't always apply to a pair of blue jeans. If you're looking for a ballast that has a thin design but provides a heavy dose of emergency wattage, then you should consider our Beghelli 1 bulb electronic ballast.
Produced in silicon steel, the LUCE-9S model transformer will supply the right amount of emergency power to your fluorescent lighting fixture. It operates T5 and T5HO lamps and has an inital lumen output of 1300. This wide but slender device can be easily installed within or on top of your lights either indoors or outdoors.
Features:
Ballast Type: Emergency
Lamp Wattage: 28-54W
Dual voltage 120/277V, 60Hz cycles
Operates: 2’-4’ T5-T5HO linear fluorescent and CFL (4-pin) lamps
Lumens (at 10-feet): 1300 lm
Min/Max Temp: 32° to 122°F
Optional Auto-Test circuit
Optional UL cold weather and damp location ratings
5-year full warranty
Application:
The LUCE-9S is specially made for 2-foot or 4-foot linear T5 or T5HO fluorescent units as well as most fluorescents within a range of 40-55 watts. The battery pack can be installed in buildings during the initial construction phase or as a retrofit device later on. Ensure that your current unit already has a supplied conduit or ballast cover, otherwise, these accessories can be custom ordered.
External Specifications:
The LUCE-9S has a standard fluorescent ballast profile with an enclosed steel case. The unit is finished with a white baked-on enamel powder coating that repels corrosion. Input and output leads protrude from one end.
Electrical Specifications:
Lamp wattage: 40-55W
Dual tap 120 or 277vAC, 60 Hz
Initial illumination: Up to 1300 (depending on lamp)
Battery: Maintenance-free nickel cadmium. 7-10 year lifespan
Emergency runtime: +90 minutes
Recharge time: 24 hours or less
Options:
Auto Test - adds a circuit to the ballast that auto-performs monthly and yearly UL diagnostics on the battery.
Damp Location - adds a sealant to the case that blocks out humidity in particularly damp indoor or outdoor locations.
Cold Weather - adds a battery warmer to the unit that allows the ballast to operate in temperatures as low as 5° F.
Ballast Covers - linear fluorescent ballast channel cover protects the AC and emergency ballast from dust and moisture.
Flex Conduit - flexible electrical conduit protects the input/output leads.
Dimensions:
Width: 21.5"
Depth: 1.18"
Height: 1.15"
Compliance:
Exceeds UL924 code for Emergency Lighting & Power Equipment
NEC Installation standards
Meets NFPA: 101 Life Safety Code, excerpt 5-9.3 periodic testing standards
National Fire Code
National Building Code
