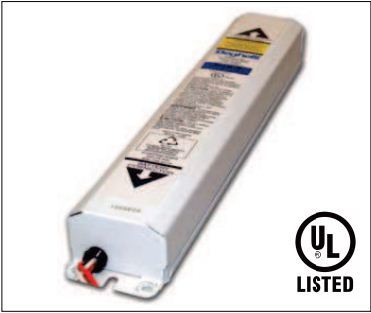

Beghelli LUCE-6 Emergency 2-Pin Quad CFL Ballast 650 Lumens
Regular price
$189.99
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Product Description:
If you're looking for a emergency solution for your building's lighting system, please consider our Beghelli brand electronic ballast. Our LUCE-6 model operates compact fluorescent (2-pin) or fluorescent quad tube lamps by supplying them with emergency wattage, voltage, and frequency. It's standard steel housing is cold weather protected, making it suitable for installation in damp locations
Features:
Ballast Type: Emergency
Lamp Wattage: 18-26W
Dual voltage 120/277vAC, 60Hz cycles
Operates: One 2-pin CFL or quad tube
Lumens (at 10-feet): 825 lm
Min/Max Temp: 32° to 122°F
Optional Auto-Test circuit
Optional UL cold weather and damp location ratings
5-year full warranty
Application:
The LUCE-6 is specially made for 4-pin compact fluorescents and quad tube within a range of 40-55 watts. The battery pack can be installed in buildings during the initial construction phase or as a retrofit device later on. Ensure that your current unit already has a supplied conduit or ballast cover, otherwise, these accessories can be custom ordered.
External Specifications:
The LUCE-6 has a standard fluorescent ballast profile with an enclosed steel case. The unit is finished with a white baked-on enamel powder coating that repels corrosion. Input and output leads protrude from one end.
Electrical Specifications:
Lamp wattage: 40-55W
Dual tap 120 or 277vAC, 60 Hz
Initial illumination: Up to 650 (depending on lamp)
Battery: Maintenance-free nickel cadmium. 7-10 year lifespan
Emergency runtime: up to 90 minutes
Recharge time: 24 hours or less
Options:
Auto Test - adds a circuit to the ballast that auto-performs monthly and yearly UL diagnostics on the battery.
Damp Location - adds a sealant to the case that blocks out humidity in particularly damp indoor or outdoor locations.
Cold Weather - adds a battery warmer to the unit that allows the ballast to operate in temperatures as low as 5° F.
Ballast Covers - linear fluorescent ballast channel cover protects the AC and emergency ballast from dust and moisture.
Flex Conduit - flexible electrical conduit protects the input/output leads.
Dimensions:
Width: 9.5"
Depth: 1.18"
Height: 1.15"
Weight: 5 lbs
Compliance:
Exceeds UL924 code for Emergency Lighting & Power Equipment
NEC Installation standards
Meets NFPA: 101 Life Safety Code, excerpt 5-9.3 periodic testing standards
National Fire Code
National Building Code
