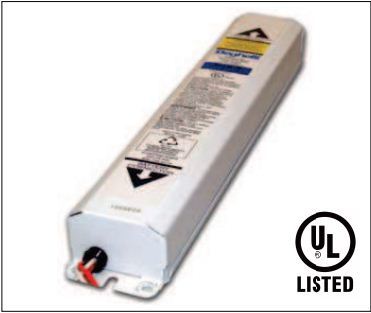

Beghelli LUCE-5 Emergency 2-Pin CFL Ballast 650 Lumens
Regular price
$189.99
Couldn't load pickup availability
Product Description:
If you're looking for a standard solution that provides your building or facility's compact fluorescent lighting system with the appropriate amount of power during an emergency, then please consider our Beghelli brand electronic ballast.
The LUCE-5 model supplies your 2-pin and twin and quad-tube CFL lamps with the necessary wattage and voltage in the event of power failure. With an instant start method, an initial burst of voltage is sent to the lighting unit once power fails, which allows for immediate illumination for up to 90 minutes.
Features:
Ballast Type: Emergency
Lamp Wattage: 7-13W
Input Wattage: 40-55W
Dual voltage 120/277V, 60Hz cycles
Operates: one (1) 2-pin twin and quad-tube CFL lamps
Lumens (at 10-feet): 825 lm
Min/Max Temp: 32° to 122°F
Optional Auto-Test circuit
Optional UL cold weather and damp location ratings
5-year full warranty
Application:
The LUCE-5 is particularly made for CFL (2-pin), twin and quad tube bulbs. The battery pack can be installed in buildings during the initial construction phase or as a retrofit device later on. Ensure that your current unit already has a supplied conduit or ballast cover, otherwise, these accessories can be custom ordered.
External Specifications:
The LUCE-5 has a standard fluorescent ballast profile with an enclosed steel case. The unit is finished with a white baked-on enamel powder coating that repels corrosion. Input and output leads protrude from one end.
Electrical Specifications:
Dual tap 120 or 277V, 60 Hz
Initial illumination: Up to 650 (depending on lamp)
Battery: Maintenance-free nickel cadmium. 7-10 year lifespan
Emergency runtime: Up to 90 minutes
Recharge time: 24 hours or less
Options:
Auto Test - adds a circuit to the ballast that auto-performs monthly and yearly UL diagnostics on the battery.
Damp Location - adds a sealant to the case that blocks out humidity in particularly damp indoor or outdoor locations.
Cold Weather - adds a battery warmer to the unit that allows the ballast to operate in temperatures as low as 5° F.
Ballast Covers - linear fluorescent ballast channel cover protects the AC and emergency ballast from dust and moisture.
Flex Conduit - flexible electrical conduit protects the input/output leads.
Dimensions:
Width: 18.5"
Depth: 2.38"
Height: 1.50"
Weight: 5.0 lbs
Compliance:
Exceeds UL924 code for Emergency Lighting & Power Equipment
NEC Installation standards
Meets NFPA: 101 Life Safety Code, excerpt 5-9.3 periodic testing standards
National Fire Code
National Building Code
