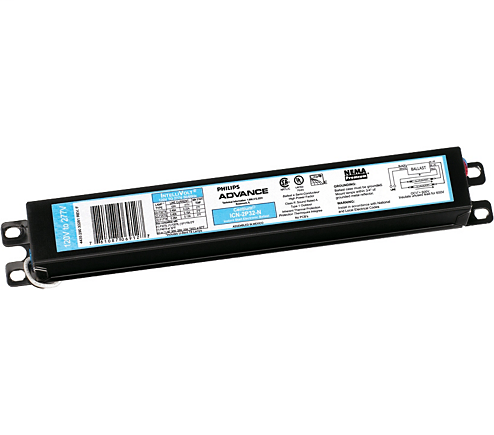

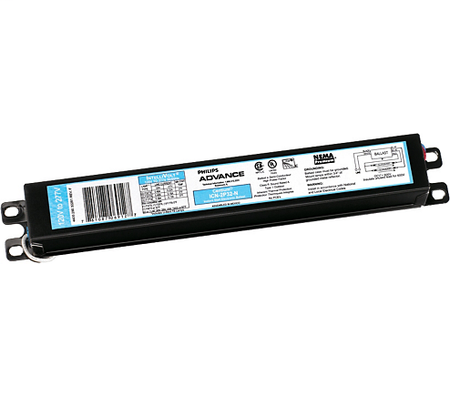

Advance Lighting ICN2P32N35I
Regular price
$25.99
Couldn't load pickup availability
- Product Data
- Order product name : CENTIUM ICN2P32N35I
- EAN/UPC - Product : 781087069127
- Order code : 913710842701
- Numerator - Quantity Per Pack : 1
- Numerator - Packs per outer box : 10
- Material Nr. (12NC) : 913710842701
- Net Weight (Piece) : 0.350 kg
- Operating and Electrical
- Input Voltage : 120 to 277 V
- Input Frequency : 50 to 60 Hz
- Total Harmonic Distortion USA : 10 %
- Ignition Method : Instant Start
- Crestfactor (Nom) : 1.7
- Ignition Time (Nom) : 0.1 s
- Ballast Factor (Nom) : 0.89
- Power Factor (Nom) : 0.98
- Input Current (Max) : 0.49 A
- Input Current (Min) : 0.22 A
- Input Power (Nom) : 56-56 W
- Rated Lamp Power : 32 W
- Mechanical and Housing
- Housing Material : Metal
- Housing : N
- Housing Dimensions : 9.5" x 1.3" x 1.0"
- Wiring
- Color Input Terminals : No terminals
- Color Output Terminals : No terminals
- Wire Striplength : 0.50/0.375 mm
- Lamp Connection : Parallel
- Wire Length by Color : See data sheet
- Wire Gauge (Nom) : 18AWG mm
- Wire Type : Solid
- Remote Wiring Configuration Allowed : Yes
- Tandem Wiring Configuration Allowed : Yes
- Through Wiring Configuration Allowed : Yes
- Max Ballast-Lamp Distance Remote Wiring : ES = 6' / Standard = 20'
- Max Ballast-Lamp Distance Tandem Wiring : ES = 6' / Standard = 20'
- Max Ballast-Lamp Distance Through Wiring : ES = 6' / Standard = 20'
- Connector Type : No connector
- Approval and Application
- EMC Immunity Standard : FCC Non-Consumer
- Approval Marks : CSA certificate
- Hum And Noise Level : A
- UL Recognized : No
- Temperature
- T-Case Maximum (Nom) : 70 °C
- General Information
- Lamp Type : F32T8
- Number of Lamps : 1/2 piece/unit
- Ballast Type : Electronic Fluorescent
- Base Model : ICN2P32N
- Suitable For Outdoor Use : Yes
- Automatic Restart : Yes
