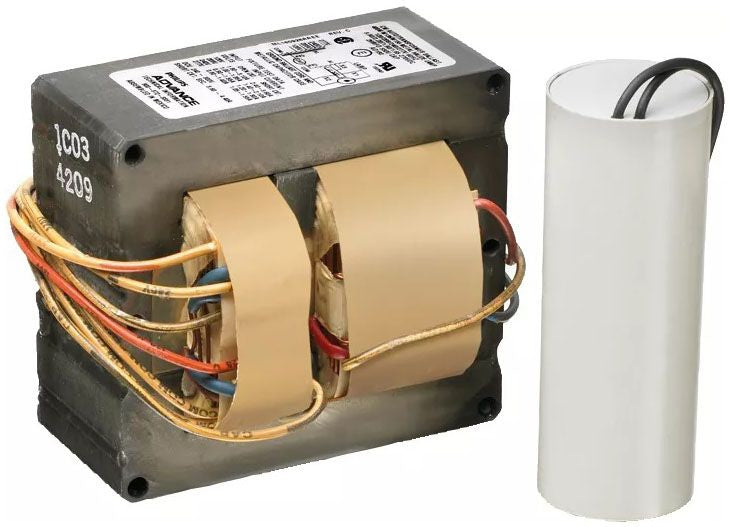

Advance 71A8041001D High Pressure Sodium Ballast 100W S54 480V
Regular price
$146.99
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Advance 71A8041001D High Pressure Sodium Ballast 100W S54 480V Kit
Technical Description:
3.9 Inch Length X 3.6 Inch Width X 2.8 Inch Height Size; -40 Deg F min. Starting Temperature; 60 Hertz Frequency Rating; Magnetic Ballast, Dry Film Capacitor Contents; UL 1029, CSA 22.2 Approval; High Pressure Sodium Lamp Type; 100 Watt Lamp Wattage
| Lamp Type: | High Pressure Sodium |
| Lamp Wattage: | 100 Watt |
| Circuit Type: | HX-HPF |
| ANSI Code: | S54 |
| Minimum Starting Temperature: | -40 Deg F |
| Size: | 3.9 Inch Length x 3.6 Inch Width x 2.8 Inch Height |
| Approval: | UL 1029, CSA 22.2 |
| Additional Information: | RoHS Compliant; Core Size 3 Inch x 4 Inch; Ballast Factor 1; Power Factor 0.9; Temperature Rating 105 Deg C (Igniter/Capacitor); Application Outdoor |
| Catalog Number: | 71A8041001D |
| Brand Name: | Philips |
| Model: | 71A |
| Contents: | Magnetic Ballast, Dry Film Capacitor |
| Input Voltage: | 480 Volt AC |
| Input Current: | 0.6 Amp |
| Input Power: | 130 Watt |
| Frequency Rating: | 60 Hertz |
| CATALOG DESCRIPTION: | RELIABLE PERFORMANCE VACUUM-PRESSURE IMPREGNATION IS USED TO RE-ENFORCE THE ELECTRICAL INSULATION OF THE BALLAST, PRECLUDE MOISTURE, INHIBIT NOISE, AND DISSIPATE HEAT;PRE-INSULATED VOLTAGE LEADS REDUCE THE RISK OF SHOCK AND SHRINK INSTALLATION TIME THE BASIC BALLAST IS THE OPEN CORE AND COIL WHICH IS MOST OFTEN USED AS A COMPONENT WITHIN A LIGHTING LUMINAIRE. THE CORE AND COIL ALSO FORMS THE NUCLEUS OF PHILIPS ADVANCE'S FIVE OTHER BALLAST CONFIGURATIONS. VACUUM-PRESSURE IMPREGNATED WITH A SILICA-FILLED POLYESTER VARNISH;ALL CORE AND COIL BALLASTS BELOW 600W UTILIZE A UL CLASS H (180C) INSULATION SYSTEM;C AND C BALLASTS 600W AND HIGHER UTILIZE A UL CLASS N (200C) INSULATION SYSTEM;PRE-INSULATED VOLTAGE LEADS;BALLAST KITS SUPPLIED WITH PRE-WIRED IGNITOR HIGH BAY RETAIL, MANUFACTURING, GYMNASIUMS, WAREHOUSES, PARKING STRUCTURES, OUTDOOR |
| Category: | Hid Ballast Kits |
| Full Technical Description: | 3.9 Inch Length X 3.6 Inch Width X 2.8 Inch Height Size; -40 Deg F min. Starting Temperature; 60 Hertz Frequency Rating; Magnetic Ballast, Dry Film Capacitor Contents; UL 1029, CSA 22.2 Approval; High Pressure Sodium Lamp Type; 100 Watt Lamp Wattage; 480 Volt AC Input Voltage; 0.6 Amp Input Current; Hx-Hpf Circuit Type; 130 Watt Input Power; S54 ANSI Code; RoHS Compliant; Core Size 3 Inch X 4 Inch; Ballast |
| Manufacturer: | Philips USA |
| Manufacturer Brand: | Philips Advance |
| Product Description: | Advance 71A8041001D High Pressure Sodium Ballast 100W S54 480V Kit |
| Sub-Category: | Open Core and Coil HID Ballast |
