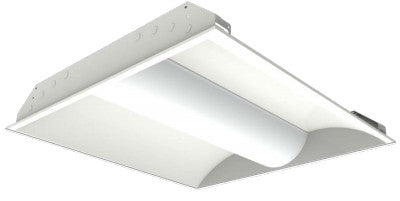

The CBLED24 is a 2’ x 4’ LED center basket luminaire, which is designed as a direct replacement for 2’ x 4’ fluorescent luminaires installed in grid ceilings. The CBLED24 is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
Long-life LEDs provide 52,000 hours of operation with at least 70% of initial lumen output (L70).
Provides 4,781 luminaire lumens (100 lumens per watt, LPW) at 4000k, and 4,884 luminaire lumens (102 LPW) at 5000k.
Uniform illumination with no visible LED pixelation.
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10vdc dimming capability is standard.
Power factor > 0.90.
Total harmonic distortion < 20%.
Color rendering index > 80.
Steel housing and acrylic lens.
Easy installation in new construction or retrofit. Housing fits in standard 2’ x 4’ grid ceilings.
Color Temperature: 3000k, 4000k , 5000k
CRI 1: >80
Luminaire Lumens: 4,781, 4,884
Luminaire Watts: 48
Lumens Per Watt: 100 , 102
Input Voltage: 120-277(50-60Hz)
Input Current (A):
Power Factor: > 90%
THD2: < 20%
Warranty & Listings:
ETL approved for damp locations and to relevant U.L. standards (-30 C to 30 C / -22 F to 86 F).
Complies with FCC Part 15, Class A.
Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
