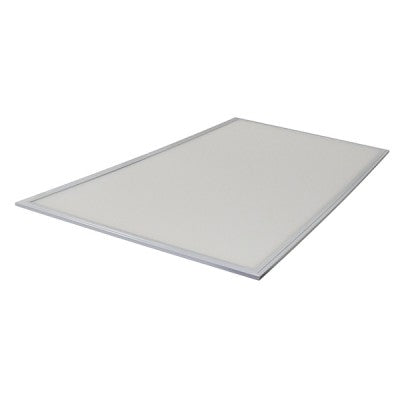

50W - 2X4 LED Flat Panel - DIM - 4000k or 5000k - 120/277v - DLC

In stock
SKU: LEDPNL2X4-50W-4K
Regular price $81.99
Color Temperature

The ultra-thin, edge-lit LED panel series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.


FEATURES:

  • Available in 4000k (neutral) and 5000k (cool white) color temperatures.
  • Long-life LEDs provide 63,000 hours of operation with at least 70% of initial lumen output (L70).
  • Provides 4,652 luminaire lumens (99 lumens per watt, LPW) at 4000k, and 5,062 luminaire lumens (108 LPW) at 5000k.
  • Uniform illumination with no visible LED pixilation.
  • Universal 100-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming capability is standard.
  • Power factor > 0.90.
  • Total harmonic distortion < 20%.
  • Color rendering index > 80.
  • Aluminum housing and acrylic lens.
  • Suitable for ambient temperatures from -25°C to 45°C (-13°F to 113°F).
  • Easy installation in new construction or retrofit.
  • Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. Optional surface mounting requires a surface mounting kit (option SMK).


SPECIFICATION:

  • Color Temperature: 4000k, 5000k
  • CRI 1: > 80
  • Luminaire Lumens: 4,652, 5,062
  • Luminaire Watts: 47
  • Lumens Per Watt: 99, 108
  • Input Voltage: 120-277(50-60Hz)
  • Input Current (A): 120V: 0.39, 0.57, 240V: 0.20, 0.28, 277V: 0.17, 0.25
  • Power Factor: > 90%
  • THD2: < 20%
  • L70 Hours3: 63,000


WARRANTY & LISTINGS:

  • ETL listed to applicable U.L. standards for damp locations and insulated ceilings (IC-rated)
  • DLC approved.
  • 5 year Warranty
