Emergency LED Driver - 20 WATT 170 VDC - For LED Tubes

SKU:
Weight: 3.0 lbS
Review
FAST SHIPPING FOR ITEMS IN STOCK*
FAST SHIPPING FOR ITEMS IN STOCK*
MONEY BACK 100% GUARANTEE
MONEY BACK 100% GUARANTEE
30 DAYS HASSLE-FREE RETURNS
30 DAYS HASSLE-FREE RETURNS
LOWEST PRICE GUARANTEE
LOWEST PRICE GUARANTEE
Illumination
  • Provides 170VDC (or 120VAC) Constant out put to the load during emergency mode operation.
  • For use with switched or unswitched fixtures.
  • Can be used with LED lamp loads of up to 20W.
Electrical
  • Universal 120-277V, 50/60 Hz input.
  • Charge/Power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
  • Long-life, maintenance free, rechargeable NiCad battery.
  • Output short/overcurrent protection: Electronic limiting, with normal operation resuming upon removal of fault.
  • 90 Minute minimum emergency operating time over full temperature range.
  • 24 Hour maximum battery recharge time.
Housing

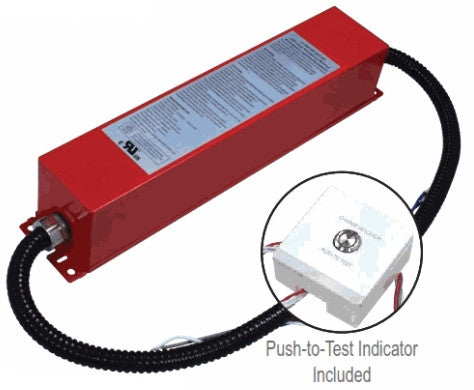

  • LED illuminated and remote mounted test switch.
  • Durable painted steel construction in red/orange finish.
  • Provided with 18" flex conduits on both ends.
Mounting
  • Suitable for installation inside or top of the fixture.
Warranty/Listing
  • UL Recognized for factory installation.
  • Suitable for damp locations (0°C - 50°C).
  • 5 year warranty on all electronics and housing.
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State codes.
