WOW0821240209BLCLJLLLML

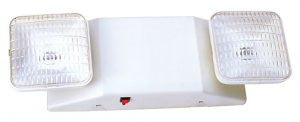

2 Head Emergency Fixture With Battery 120/277 Dual Voltage


Your Price:
$16.99

Quantity:

Buy in bulk and save
Typically ships within 2-3 business days.

4 Great Reasons To Buy From Us:

  • Image of Image of Image of
  • Image of Image of Image of
  • Image of Image of Image of
  • Image of Image of Image of

The TEL Series has been developed for use in all types of commercial facilities. This emergency light blends affordability with compliance, creating an effective solution for office, retail, and residential emergency lighting applications. The injection molded black thermoplastic housing is sturdy and resistant to flame and corrosion. A push button allows for easy testing of the battery backup system.

The TEL Series is suitable for wall or ceiling mount and can be installed onto most types of surfaces. The lamps are easily adjustable and ililluminated for 90 minutes after power is lost. The universal mounting plate allows for effortless installation. Operates using 120 or 277v AC power. The standard 5.4W incandescent lamps can be positioned as needed. Damp location rating is standard and the unit is UL 924 Listed and code compliant throughout North America.

Features:

  • Completely self-contained
  • Fully-automatic operation
  • Universal mounting plate with "EZ" quick connect for rapid, labor-saving installation
  • Push-to-test switch
  • 6V, sealed lead acid, rechargeable, maintenance-free battery
  • Environmentally-coated, solid state charger
  • Automatic, low-voltage disconnect (LVD)
  • 120V/277 dual voltage operation standard
  • Damp location listed
  • Charge rate/power "ON" LED indicator light
  • 90+ min. emergency operation
  • 2 x 5.4W lamp wattage
  • Ni-Cad battery unit option available
  • Cord and plug unit available
  • For Self-Diagnostic Testing units, specify SDT when ordering


Application
Emergency lights ililluminate the exit pathway in case of an emergency power outage. The TEL Series is designed for indoor commercial use in all types of applications. The TEL emergency light will provide 90 minutes of battery backup powered emergency illumination.

External Specifications

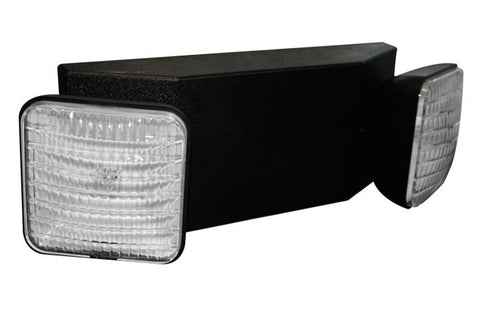

The TEL Series is constructed from sturdy flame and corrosion resistant ABS thermoplastic. Plastic emergency lights are favored for their usability and affordability. This model comes complete with two lamps, a back-plate for mounting, and all installation hardware. The TEL Series comes with a black finish but is also available in white. The wedge based emergency lamps are fully adjustable. A damp location rating and external battery backup test button are standard on all emergency lights.

Internal Specifications
High output incandescent lamps and a specially designed refractory lens assembly provides glare-free light distribution. Lamp Type: Incandescent - wedge base. Lamp Rating: 6 volts, 5.4 watts. Lamp Life: 100 hours (expected average).

Electrical Specifications
120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v.

Code Compliance
UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.

Maintenance Profile
The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The emergency lamps are replaceable if broken or burnt out.

Lifespan
8-10 year expected lifespan on all components except replaceable battery (five-year lifespan)

Remote Capability
The unit can be outfitted with an additional 6-volt 4.5-amp battery that can provide support to as many as two additional 6-volt 5.4-watt remote lamp heads.

Technology
Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.

Installation
This emergency light is suitable for surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.

Warranty
Five-year warranty on parts, five-year prorated warranty on battery.
